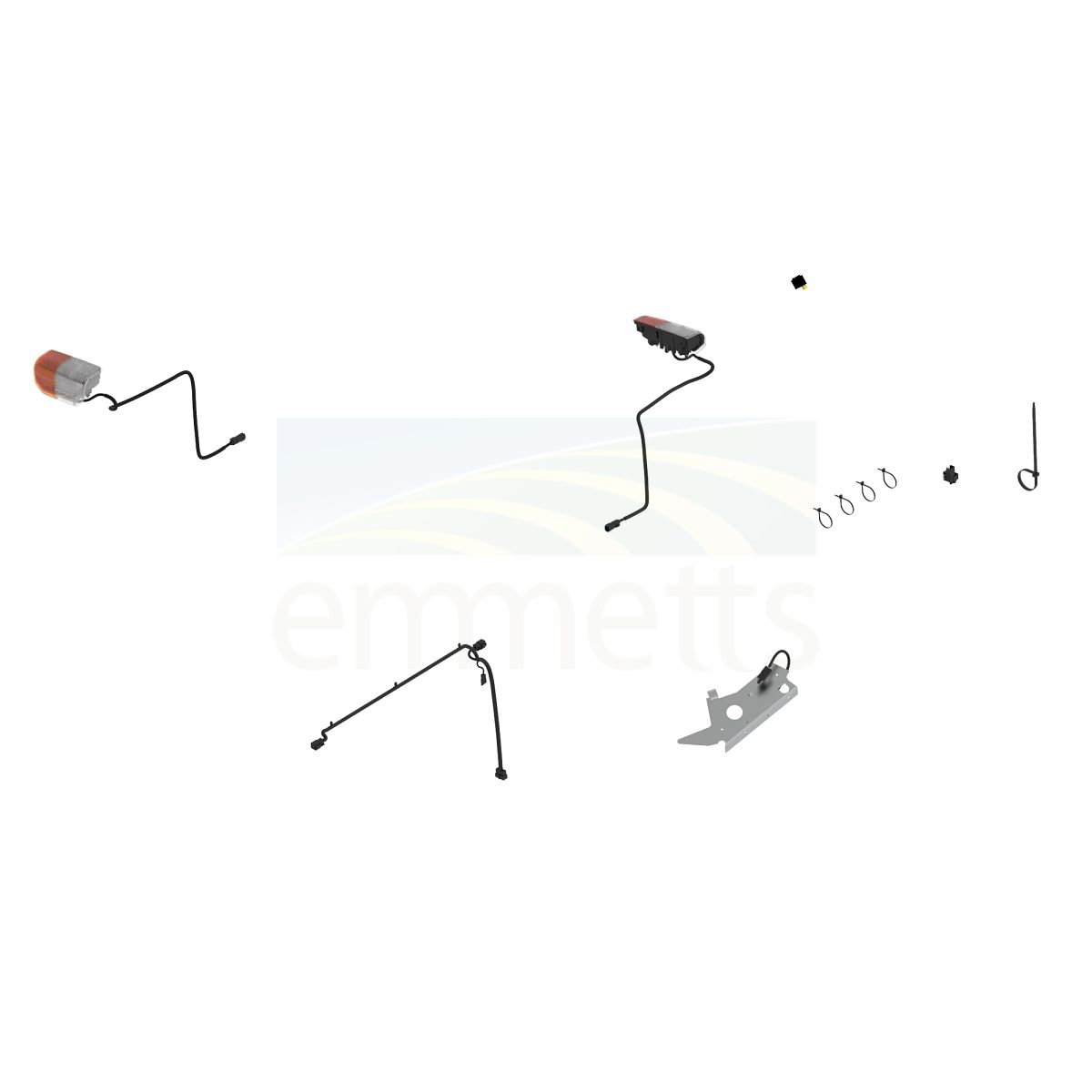

Light Kit for Utility Vehicle BUC10172

Name: Light Kit for Utility Vehicle BUC10172
SKU: BUC10172
Availability: InStock

SKU: BUC10172 Categories: 6X4, Full Size, Gators, John Deere Parts Online, TH 6X4, Work, XUV825E, XUV825M, XUV825M S4, XUV855M, XUV855M S4 Tags: 6X4, 855 LONG CHASSIS, Full Size, STRAIGHT BLADE, TE 4X2, TH 6X4, TH 6X4 D, TURF TX 4X2, TX 4X2, Work, XUV825E, XUV825M, XUV825M S4, XUV855M, XUV855M S4

$447.80 inc GST

Description

ADditional information

Description

Part Number: BUC10172
Replaces part number BM24591

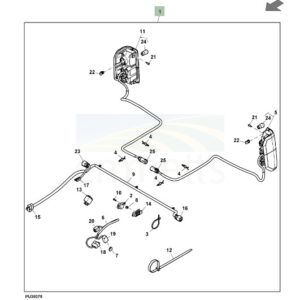

Includes everything in diagram part #1
John Deere notes BUC101172 Light Kit cannot be installed on 625i, 825i, and 855D XUV Gators. Solution: Order the following parts:
AM136534 RH Taillight x1 pc
AM136535 LH Taillight x1 pc
AM147726 Jumper x1 pc
GY20094 Switch x1 pc
M122475 Clips x4 pc.

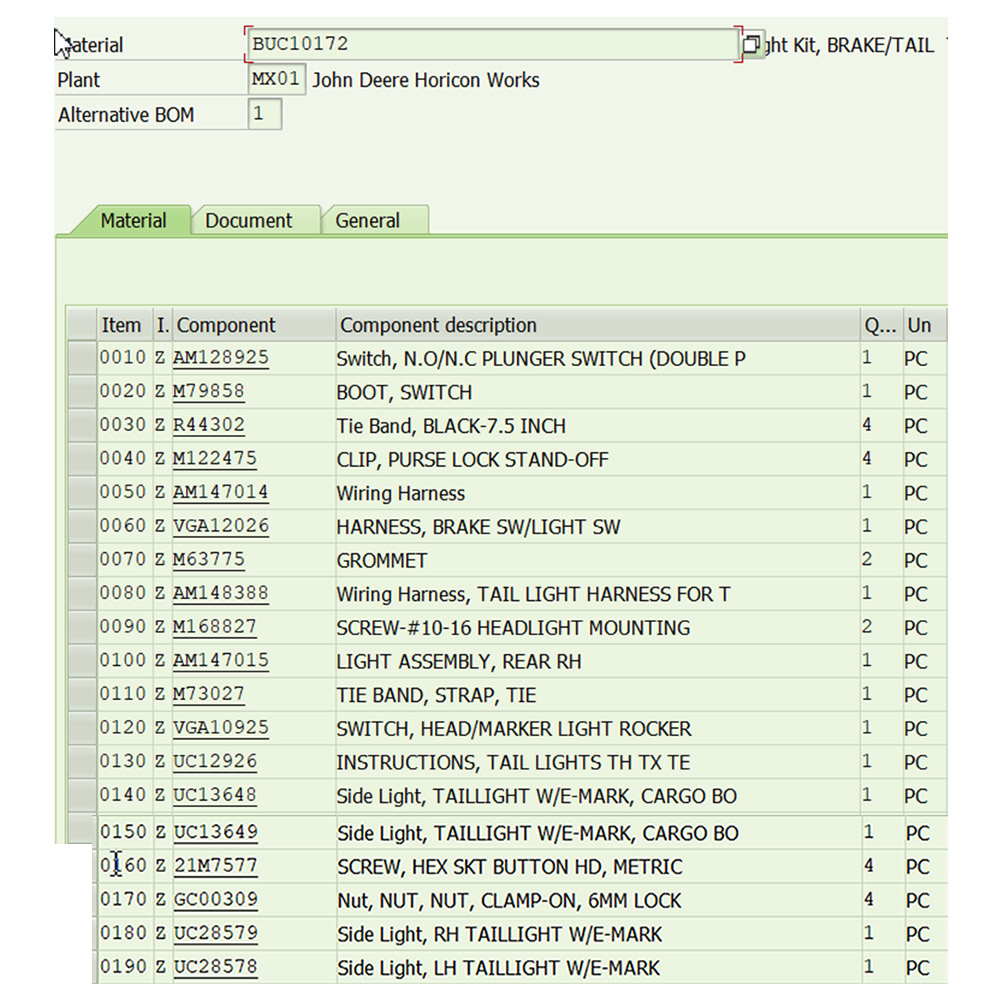

Breakdown of parts is as below:

6X4 - 855 LONG CHASSIS - Full Size - STRAIGHT BLADE - TE 4X2 - TH 6X4 - TH 6X4 D - TURF TX 4X2 - TX 4X2 - Work - XUV825E - XUV825M - XUV825M S4 - XUV855M - XUV855M S4

Specification

Additional information

Weight	1.9 kg
Dimensions	29 × 28 × 20 cm
