John Deere 10PX Polypropylene Utility Cart with Full Dump Release CPLP72978

John Deere 10PX Polypropylene Utility Cart with Full Dump Release CPLP72978

Name: John Deere 10PX Polypropylene Utility Cart with Full Dump Release CPLP72978
SKU: CPLP72978
Availability: InStock

SKU: CPLP72978 Categories: Attachments, John Deere Parts Online, Lawn and Turf, Utility Carts Tags: 102, 115, 125, 135, 145, 155C, 190C, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180, G110, GT235, GT245, GX255, GX335, GX345, GX355, L100, L108, L110, L111, L118, L120, L130, LA100, LA105, LA110, LA115, LA120, LA125, LA130, LA135LE, LA135SE, LA140, LA145, LA150, LA155, LA165, LA175, LT150, LT160, LT180, LT190, LTR180, LX280, LX280AWS, LX289, S100, S110, S120, S130, S140, S160, S170, S180, S220, S240, SST15, SST16, SST18, X300, X300R, X304, X310, X320, X324, X330, X340, X350, X350R, X354, X360, X370, X380, X384, X390, X394, X465, X475, X485, X495, X500, x520, X530, X534, X540, X570, X575, X580, X584, X585, X590, X595, X700, X710, X720, X724, X728, X729, X730, X734, X738, X739, X740, X744, X748, X749, X750, X754, X758, Z225, Z235, Z245, Z255, Z335E, Z335M, Z345M, Z345R, Z355E, Z355R, Z375R, Z425, Z435, Z445, Z465, Z525E, Z535M, Z535R, Z540M, Z540R, Z625, Z645, Z655, Z665, Z720E, Z730M, Z735E, Z735M, Z740R

$1,199.83 inc GST

Description

ADditional information

Description

Part Number: CPLP72978
Alternate Part number: LP72978

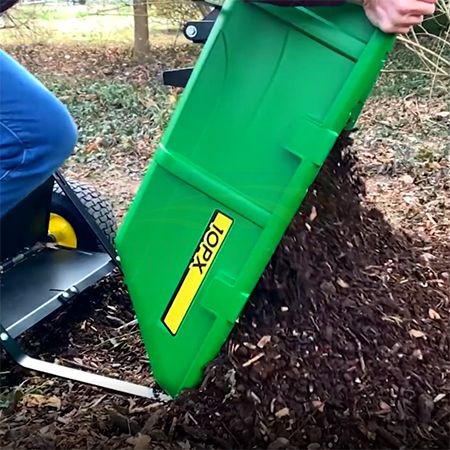

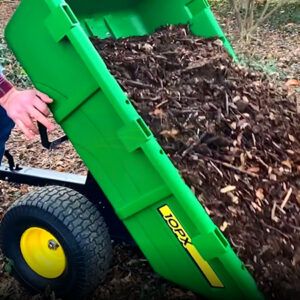

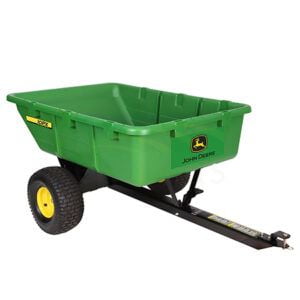

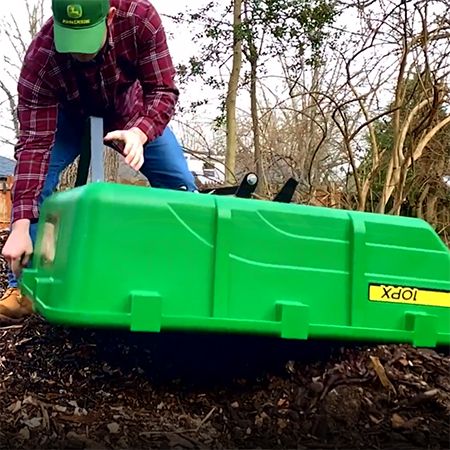

The best-selling cart in John Deere’s history now with a 180° dump angle for complete emptying. A tow behind cart that is great for hauling lawn debris, sand, dirt, mulch and plants.

0.28m3 heavy duty (6mm thick) polypropylene bed
Won’t dent or rust
38cm x 15cm tubeless pneumatic tires with turf tread for maximum traction
Easy hands-free foot pedal dump release

Compatibility: Compatible with most mowers with a hitch pin
Load Limit: 295kg
Box Capacity (Heaped): 0.28m3
Dump Angle: 180°

10PX Poly Utility Cart (deere.com)

Video of 10PX Cart

Model comparison chart

Comparison with similar models

Model	Order through	Box capacity (heaped)	Material thickness	Maximum weight	Vehicle compatibility
7P	Order Zone	7 cu ft (0.20 m³)	High-density polyethylene (HDPE)**	450 lb* (204 kg)	EZtrak™, ZTrak™, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series
8Y	Order Zone	8 cu ft (0.22 m³)	HDPE**	300 lb* (136 kg) (tow)	100 Series, 200 Series, X300 Series, X500 Series, X700 Series
10P	Order Zone	10 cu ft (0.28 m³)	Polypropylene	650 lb* (295 kg)	EZtrak, ZTrak, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series
10PX	Order Zone	10 cu ft (0.28 m³)	Polypropylene	650 lb* (295 kg)	EZtrak, ZTrak, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series
13	Order Zone	13 cu ft (0.37 m³)	16-gauge, 0.06-in. (1.5-mm) steel	1,000 lb* (454 kg)	100 Series, 200 Series, X300 Series, X500 Series, X700 Series
16YS	Order Zone	17 cu ft (0.48 m³)	Polypropylene	800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump*	100 Series, 200 Series, X300 Series, X500 Series, X700 Series
17P	Order Zone	17 cu ft (0.48 m³)	Polypropylene	1,000 lb* (454 kg)	100 Series, 200 Series, X300 Series, X500 Series, X700 Series
18	Order Zone	18 cu ft (0.51 m³)	16-gauge, 0.06-in. (1.5-mm) steel	1,000 lb* (454 kg)	100 Series, 200 Series, X300 Series, X500 Series, X700 Series
21	Order Zone	21 cu ft (0.59 m³)	16-gauge, 0.06-in. (1.5-mm) steel	1,000 lb* (454 kg)	X700 Series

*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).

**HDPE is compression molded for optimum thickness in all areas and maximum durability.

	7P	8Y	10P	10PX	13	16YS	17P	18	21
Box capacity
Heaped	7 cu ft (0.20 m³)	8 cu ft (0.22 m³)	10 cu ft (0.28 m³)	10 cu ft (0.28 m³)	13 cu ft (0.37 m³)	17 cu ft (0.48 m³)	17 cu ft (0.48 m³)	18 cu ft (0.51 m³)	21 cu ft (0.59 m³)
Struck	5.6 cu ft (0.16 m³)	6.6 cu ft (0.19 m³)	8.3 cu ft (0.24 m³)	8.3 cu ft (0.24 m³)	10 cu ft (0.28 m³)	15 cu ft (0.42 m³)	14 cu ft (0.40 m³)	15 cu ft (0.42 m³)	15 cu ft (0.42 m³)
Maximum weight	450 lb* (204 kg)	300 lb* (136 kg)	650 lb* (295 kg)	650 lb* (295 kg)	1,000 lb* (454 kg)	800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump*	1,000 lb* (454 kg)	1,000 lb* (454 kg)	1,000 lb* (454 kg)
Box dimensions
Width	33 in. (84 cm)	33.68 in. (85.5 cm)	30.3 in. (77 cm)	30.3 in. (77 cm)	30.25 in. (76.8 cm)	39.5 in. (100.3 cm)	39.5 in. (100.3 cm)	38 in. (96.5 cm)	48 in. (122 cm)
Length	45 in. (114 cm)	45 in. (114 cm)	44.5 in. (113 cm)	44.5 in. (113 cm)	48 in. (122 cm)	58.5 in. (148.6 cm)	58.5 in. (148.6 cm)	48 in. (122 cm)	48 in. (122 cm)
Depth	10.5 in. (27 cm)	10.75 in. (27.3cm)	12 in. (30.5 cm)	12 in. (30.5 cm)	12 in. (30.5 cm)	15.5 in. (39.4 cm)	15.5 in. (39.4 cm)	18 in. (45.7 cm)	11 in. (27.9 cm)
Box construction	Molded	Molded	Molded	Molded	Welded	Molded	Molded	Welded	Bolted
Material	High-density polyethylene (HDPE)**	HDPE** w/UV inhibitor	Polypropylene	Polypropylene	16-gauge, 0.06-in. (1.5-mm) steel	Polypropylene	Polypropylene	16-gauge, 0.06-in. (1.5-mm) steel	16-gauge, 0.06-in. (1.5-mm) steel
Tailgate	None, sloped	None, sloped	None, sloped	None, sloped	Hinged	None, sloped	None, sloped	Hinged	Lift-out/swing-out
Pneumatic tires	2 ply	—	2 ply	2 ply	2 ply	4 ply	4 ply	4 ply	2 ply
Size	13×4-6	13×4-6	15×6.00-6	15×6.00-6	15×6.00-6	16×6.50-8	16×6.50-8	16×6.50-8	20×10.00-8
Tread design	Turf	Knobby	Turf	Turf	Turf	Turf	Turf	Turf	Turf
Recommended inflation pressure	30 psi (207 kPa)	30 psi (207 kPa)	14 psi (97 kPa)	14 psi (97 kPa)	14 psi (97 kPa)	35 psi (241 kPa)	28 psi (193 kPa)	28 psi (193 kPa)	10 psi (70 kPa)
Wheel bearings	Iron/Oilite	None	Iron/Oilite	Iron/Oilite	Iron/Oilite	Iron/Oilite	Iron/Oilite	Iron/Oilite	Ball bearings, double sealed
Grease fittings on wheels	Yes	None	Yes	Yes	Yes	Yes	Yes	Yes	None
Axle diameter	0.75 in. (1.905 cm)	0.75 in. (1.905 cm)	0.75 in. (1.905 cm)	0.75 in. (1.905 cm)	0.75 in. (1.905 cm)	0.75 in. (1.905 cm)	0.75 in. (1.905 cm)	1 in. (2.54 cm)	1 in. (2.54 cm)
Ground clearance	5.62 in. (14.3 cm)	5.25 in. (13.3 cm)	6.5 in. (16.5 cm)	6.5 in. (16.5 cm)	6.5 in. (16.5 cm)	14.25 in. (36.2 cm)	14.25 in. (36.2 cm)	7 in. (17.8 cm)	8.25 in. (21 cm)
Width, overall	34 in. (86.4 cm)	33.68 in. (85.5 cm)	38 in. (96.5 cm)	38 in. (96.5 cm)	38 in. (96.5 cm)	39.5 in. (100.3 cm)	39.5 in. (100.3 cm)	38 in. (96.5 cm)	48 in. (122 cm)
Hitch pin	Pin/spring clip	Pin/spring clip	Pin/spring clip	Pin/spring clip	Pin/spring clip	Pin/spring clip	Pin/spring clip	Pin/spring clip	Pin/spring clip
Dump angles	55 degrees	55 degrees	56 degrees	180 degrees	31 degrees	46 degrees	46 degrees	35/40 degrees	35/40 degrees
Maximum tongue weight	100 lb (45.4 kg)	100 lb (45.4 kg)	70 lb (31.75 kg)	70 lb (31.75 kg)	100 lb (45.4 kg)	50 lb (22 kg)	100 lb (45.4 kg)	100 lb (45.4 kg)	100 lb (45.4 kg)
Shipping weight with carton	68 lb (31 kg)	65 lb (29.5 kg)	79 lb (35.8 kg)	91 lb (41.3 kg)	110 lb (49.9 kg)	—	105 lb (47.6 kg)	170 lb (77.1 kg)	240 lb (109 kg)
Net weight	65 lb (29 kg)	55 lb (25 kg)	72 lb (32.7 kg)	84 lb (38 kg)	105 lb (47.6 kg)	103 lb (47 kg)	105 lb (47.6 kg)	150 lb (68 kg)	220 lb (99.8 kg)

*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.

Tractor compatibility and requirements

Utility Carts
Chart below shows vehicle compatibility.
An X indicates cart can be used with the pulling unit.

Model	7P	8Y	10P	10PX	13	16YS	17P	18	21
EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665 ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R	X		X	X
L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180, S100, S110, S120, S130, S140, S160, S170, S180	X	X	X	X	X	X	X	X
S220, S240	X	X	X	X	X	X	X	X
LT150, LT160, LT180, LT190, LTR180	X	X	X	X		X	X
LX280, LX280AWS, LX289	X	X	X	X		X	X
X300, X300R, X304, X310, X320, X324, X340, X360, X330, X350, X350R, X354, X370, X380, X384, X390, X394	X	X	X	X	X	X	X	X
SST15, SST16, SST18	X	X	X	X
G110	X	X	X	X	X	X	X
GT235, GT245	X	X	X	X	X	X	X
GX255, GX335, GX345, GX355	X	X	X	X	X	X	X
X500, X520, X530, X534, X540 X570, X580, X584, X590	X	X	X	X	X	X	X	X
X465, X475, X485, X495, X575, X585, X595	X	X	X	X	X	X	X	X	X
X700, X720, X724, X728, X729, X740, X744, X748, X749 X710, X730, X734, X738, X739, X750, X754, X758	X	X	X	X	X	X	X	X	X

Fits on:

102 - 115 - 125 - 135 - 145 - 155C - 190C - D100 - D105 - D110 - D120 - D125 - D130 - D140 - D150 - D155 - D160 - D170 - E100 - E110 - E120 - E130 - E140 - E150 - E160 - E170 - E180 - G110 - GT235 - GT245 - GX255 - GX335 - GX345 - GX355 - L100 - L108 - L110 - L111 - L118 - L120 - L130 - LA100 - LA105 - LA110 - LA115 - LA120 - LA125 - LA130 - LA135LE - LA135SE - LA140 - LA145 - LA150 - LA155 - LA165 - LA175 - LT150 - LT160 - LT180 - LT190 - LTR180 - LX280 - LX280AWS - LX289 - S100 - S110 - S120 - S130 - S140 - S160 - S170 - S180 - S220 - S240 - SST15 - SST16 - SST18 - X300 - X300R - X304 - X310 - X320 - X324 - X330 - X340 - X350 - X350R - X354 - X360 - X370 - X380 - X384 - X390 - X394 - X465 - X475 - X485 - X495 - X500 - x520 - X530 - X534 - X540 - X570 - X575 - X580 - X584 - X585 - X590 - X595 - X700 - X710 - X720 - X724 - X728 - X729 - X730 - X734 - X738 - X739 - X740 - X744 - X748 - X749 - X750 - X754 - X758 - Z225 - Z235 - Z245 - Z255 - Z335E - Z335M - Z345M - Z345R - Z355E - Z355R - Z375R - Z425 - Z435 - Z445 - Z465 - Z525E - Z535M - Z535R - Z540M - Z540R - Z625 - Z645 - Z655 - Z665 - Z720E - Z730M - Z735E - Z735M - Z740R

Specification

Additional information

Weight	40 kg
Dimensions	125 × 90 × 35 cm
