Jack Kit, Angle Kit BUC10584

Name: Jack Kit, Angle Kit BUC10584
SKU: BUC10584
Price: 747.90 AUD
Availability: InStock

SKU: BUC10584 Categories: Attachments, John Deere Parts Online, Z900 Series, Z915B, Z915E, Z920M, Z930M, Z930R, Z945M EFI, Z950M, Z950R, Z955M EFI, Z960M, Z970A, Z994R, Zero Turn Mowers Tags: Z900 Series, Z915B, Z915E, Z920M, Z930M, Z930R, Z945M EFI, Z950M, Z950R, Z955M EFI, Z960M, Z970A, Z994R

$822.69 inc GST

Description

ADditional information

Description

Part Number: BUC10584
Replaces BTC10906

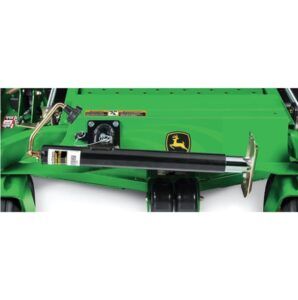

The jack allows easy access to the underside of the mower for maintenance or blade changing while in the field. The kit contains everything necessary to install the jack onto the front of a mower.
Gain easy access for mower deck maintenance and blade changes.
Jack Specifications: Extended length 32.5 inches & Retracted length 17.5 inches
2000 LB Lift Capacity
Holes in the vehicle frame cross member are pre-drilled for ease of installation.
The jack makes servicing the underside of the mower deck safer and easier.
Placed in the storage position, the jack can be carried on the machine, available for use.
The jack will need to be removed when using front ballast that is required for a rear material collection system, so it is not compatible with a material collection system.

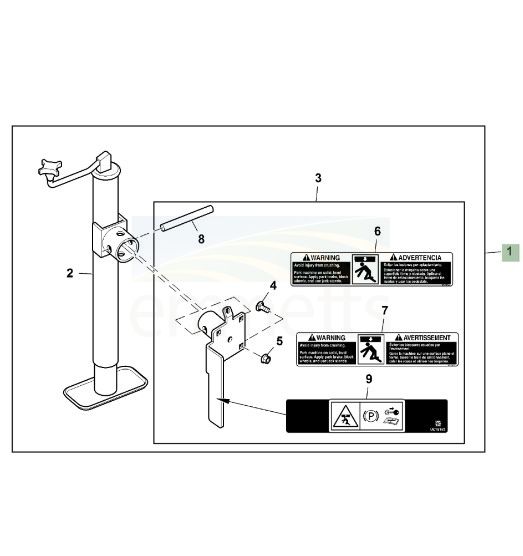

Parts included are on the diagram in 2nd picture

Z900 Series - Z915B - Z915E - Z920M - Z930M - Z930R - Z945M EFI - Z950M - Z950R - Z955M EFI - Z960M - Z970A - Z994R

Specification

Additional information

Weight	9.6548 kg
Dimensions	87 × 29 × 23 cm
