Part Number: CPLP21935

Update 12.12.23: Part discontinued in 2021 - No Longer made. x1 left at our Oakbank SA store, please contact them directly for freight costs.

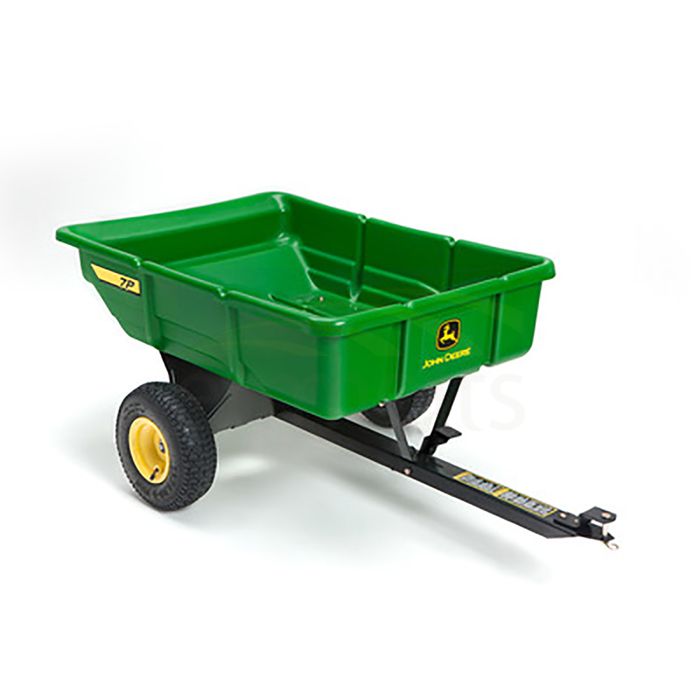

7P Poly Utility Cart

Every owner of a John riding lawn and garden product is a potential customer for a high-quality, affordable utility cart.

Utility carts can be used to haul a variety of materials including firewood, lawn debris, sand, dirt, mulch, garden tools, plants, and bushes.

Utility carts are designed, painted, and decaled to be compatible with other John Deere equipment.

  • The cart has a premium moulded, high-density polyethylene box construction.
  • Compression moulding process allows polyethyl­ene to be the optimum thickness in all areas for superior strength and durability.
  • Polyethylene body will not rust or dent; it stays looking new longer.
  • 0.75-in. (2-cm) x 2-in. (5-cm) stake pockets are moulded in to make the addition of side extensions easy.
  • Two vertical 0.75-in. (2-cm) moulded channels on each side allow easy use of dividers to separate the box into two or three compartments.
  • Ribs in the box bottom add strength and prevent the shovel from hitting bolts when emptying the cart.
  • Sloped tailgate design makes emptying the box easier; there is no tailgate to loosen or remove.
  • Styling is compatible with other John Deere equipment.
  • Pneumatic tires provide turf tread for good flotation, shock absorption, and minimal rolling resistance.

7P Poly Utility Cart

Wheels

Wheels are mounted on a solid, one-piece axle for durability. Iron and Oilite® wheel bearings with grease fittings provide lubrication for long life.

The pneumatic tires offer the following:

  • Good flotation
  • Minimal rolling resistance
  • Shock absorption

7P Utility Cart wheel

Sloped tailgate

Sloped tailgate for easy emptying

  • A sloped tailgate design makes emptying the box easier; there is no tailgate to loosen or remove.

Sloped tailgate for easy emptying

Tractor hitch

Spring-pin tractor hitch

A large-diameter hitch pin provides plenty of strength:

  • Fast, easy attachment to the tractor hitch
  • Spring pin to ensure the pin stays in place

Spring-pin tractor hitch

Tilt latch

An easy-to-use, spring-loaded dump latch allows tilting the box for easier unloading. A steep dump angle makes emptying the cart easier.

Tilt latch

Specifications
 Box capacity
Heaped, cu ft (m3)7 (0.20)
Struck, cu ft (m3)5.6 (0.16)
Maximum load, lb (kg)450 (204)*
 Box dimensions
Width, in. (cm)33 (84)
Length, in. (cm)45 (114)
Depth, in. (cm)10.5 (27)
 Box constructionMolded
MaterialHigh-density polyethylene (HDPE)**
TailgateNone, sloped
 Pneumatic tires2 ply
Size13x4x6
Tread designTurf
Recommended inflation pressure30 psi
Wheel bearingsIron/Oilite®
Grease fittings on wheelsYes
 Axle diameter, in. (cm)0.750 (1.905)
Ground clearance, in. (cm)5.62 (14.3 )
Width, overall, in. (cm)34 (86.4)
 Hitch pinPin/spring clip
Dump angles, degrees55
 Maximum tongue weight, lb (kg)55 (25)
 Shipping weight with carton, lb (kg)68 (31)
Net weight, lb (kg)65 (29)

* Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak™ mower not to exceed 250 pounds.
** High-density polyethylene is compression molded for optimum thickness in all areas and maximum durability.























































7P Cart Information



Model comparison chart
Comparison with similar models

ModelOrder throughBox capacity (heaped)Material thicknessMaximum weight Vehicle compatibility
7POrder Zone7 cu ft (0.20 m3)High-density polyethylene (HDPE)**450 lb* (204 kg)EZtrak™, ZTrak™, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series
8YOrder Zone8 cu ft (0.22 m3)HDPE**300 lb* (136 kg) (tow)100 Series, 200 Series, X300 Series, X500 Series, X700 Series
10POrder Zone10 cu ft (0.28 m3)Polypropylene650 lb* (295 kg)EZtrak, ZTrak, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series
10PXOrder Zone10 cu ft (0.28 m3)Polypropylene650 lb* (295 kg)EZtrak, ZTrak, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series
13Order Zone13 cu ft (0.37 m3)16-gauge, 0.06-in. (1.5-mm) steel1,000 lb* (454 kg)100 Series, 200 Series, X300 Series, X500 Series, X700 Series
16YSOrder Zone17 cu ft (0.48 m3)Polypropylene800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump*100 Series, 200 Series, X300 Series, X500 Series, X700 Series
17POrder Zone17 cu ft (0.48 m3)Polypropylene1,000 lb* (454 kg)100 Series, 200 Series, X300 Series, X500 Series, X700 Series
18Order Zone18 cu ft (0.51 m3)16-gauge, 0.06-in. (1.5-mm) steel1,000 lb* (454 kg)100 Series, 200 Series, X300 Series, X500 Series, X700 Series
21Order Zone21 cu ft (0.59 m3)16-gauge, 0.06-in. (1.5-mm) steel1,000 lb* (454 kg)X700 Series

*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).

**HDPE is compression molded for optimum thickness in all areas and maximum durability.



7P

8Y

10P

10PX

13

16YS

17P

18

21

Box capacity
Heaped7 cu ft (0.20 m3)8 cu ft (0.22 m3)10 cu ft (0.28 m3)10 cu ft (0.28 m3)13 cu ft (0.37 m3)17 cu ft (0.48 m3)17 cu ft (0.48 m3)18 cu ft (0.51 m3)21 cu ft (0.59 m3)
Struck5.6 cu ft (0.16 m3)6.6 cu ft (0.19 m3)8.3 cu ft (0.24 m3)8.3 cu ft (0.24 m3)10 cu ft (0.28 m3)15 cu ft (0.42 m3)14 cu ft (0.40 m3)15 cu ft (0.42 m3)15 cu ft (0.42 m3)
Maximum weight450 lb* (204 kg)300 lb* (136 kg)650 lb* (295 kg)650 lb* (295 kg)1,000 lb* (454 kg)800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump*1,000 lb* (454 kg)1,000 lb* (454 kg)1,000 lb* (454 kg)
Box dimensions
Width33 in. (84 cm)33.68 in. (85.5 cm)30.3 in. (77 cm)30.3 in. (77 cm)30.25 in. (76.8 cm)39.5 in. (100.3 cm)39.5 in. (100.3 cm)38 in. (96.5 cm)48 in. (122 cm)
Length45 in. (114 cm)45 in. (114 cm)44.5 in. (113 cm)44.5 in. (113 cm)48 in. (122 cm)58.5 in. (148.6 cm)58.5 in. (148.6 cm)48 in. (122 cm)48 in. (122 cm)
Depth10.5 in. (27 cm)10.75 in. (27.3cm)12 in. (30.5 cm)12 in. (30.5 cm)12 in. (30.5 cm)15.5 in. (39.4 cm)15.5 in. (39.4 cm)18 in. (45.7 cm)11 in. (27.9 cm)
Box constructionMoldedMoldedMoldedMoldedWeldedMoldedMoldedWeldedBolted
MaterialHigh-density polyethylene (HDPE)**HDPE** w/UV inhibitorPolypropylenePolypropylene16-gauge, 0.06-in. (1.5-mm) steelPolypropylenePolypropylene16-gauge, 0.06-in. (1.5-mm) steel16-gauge, 0.06-in. (1.5-mm) steel
TailgateNone, slopedNone, slopedNone, slopedNone, slopedHingedNone, slopedNone, slopedHingedLift-out/swing-out
Pneumatic tires2 ply---2 ply2 ply2 ply4 ply4 ply4 ply2 ply
Size13x4-613x4-615x6.00-615x6.00-615x6.00-616x6.50-816x6.50-816x6.50-820x10.00-8
Tread designTurfKnobbyTurfTurfTurfTurfTurfTurfTurf
Recommended inflation pressure30 psi (207 kPa)30 psi (207 kPa)14 psi (97 kPa)14 psi (97 kPa)14 psi (97 kPa)35 psi (241 kPa)28 psi (193 kPa)28 psi (193 kPa)10 psi (70 kPa)
Wheel bearingsIron/OiliteNoneIron/OiliteIron/OiliteIron/OiliteIron/OiliteIron/OiliteIron/OiliteBall bearings, double sealed
Grease fittings on wheelsYesNoneYesYesYesYesYesYesNone
Axle diameter0.75 in. (1.905 cm)0.75 in. (1.905 cm)0.75 in. (1.905 cm)0.75 in. (1.905 cm)0.75 in. (1.905 cm)0.75 in. (1.905 cm)0.75 in. (1.905 cm)1 in. (2.54 cm)1 in. (2.54 cm)
Ground clearance5.62 in. (14.3 cm)5.25 in. (13.3 cm)6.5 in. (16.5 cm)6.5 in. (16.5 cm)6.5 in. (16.5 cm)14.25 in. (36.2 cm)14.25 in. (36.2 cm)7 in. (17.8 cm)8.25 in. (21 cm)
Width, overall34 in. (86.4 cm)33.68 in. (85.5 cm)38 in. (96.5 cm)38 in. (96.5 cm)38 in. (96.5 cm)39.5 in. (100.3 cm)39.5 in. (100.3 cm)38 in. (96.5 cm)48 in. (122 cm)
Hitch pinPin/spring clipPin/spring clipPin/spring clipPin/spring clipPin/spring clipPin/spring clipPin/spring clipPin/spring clipPin/spring clip
Dump angles55 degrees55 degrees56 degrees180 degrees31 degrees46 degrees46 degrees35/40 degrees35/40 degrees
Maximum tongue weight 100 lb (45.4 kg) 100 lb (45.4 kg) 70 lb (31.75 kg) 70 lb (31.75 kg) 100 lb (45.4 kg)50 lb (22 kg) 100 lb (45.4 kg) 100 lb (45.4 kg) 100 lb (45.4 kg)
Shipping weight with carton68 lb (31 kg)65 lb (29.5 kg)79 lb (35.8 kg)91 lb (41.3 kg)110 lb (49.9 kg)---105 lb (47.6 kg)170 lb (77.1 kg)240 lb (109 kg)
Net weight65 lb (29 kg)55 lb (25 kg)72 lb (32.7 kg)84 lb (38 kg)105 lb (47.6 kg)103 lb (47 kg)105 lb (47.6 kg)150 lb (68 kg)220 lb (99.8 kg)

*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.

Tractor compatibility and requirements
Utility Carts
Chart below shows vehicle compatibility.
An X indicates cart can be used with the pulling unit.


 Model7P8Y10P10PX1316YS 17P1821
EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665
ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R		XXX
L100, L108, L110, L111, L118, L120, L130
102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180, S100, S110, S120, S130, S140, S160, S170, S180		X XXXXXXX
S220, S240XXXX XXXX
LT150, LT160, LT180, LT190, LTR180XXXXXX
LX280, LX280AWS, LX289XXXXXX
X300, X300R, X304, X310, X320, X324, X340, X360,
X330, X350, X350R, X354, X370, X380, X384, X390, X394		XXXX XXX X
SST15, SST16, SST18XXXX
G110XXXXXXX
GT235, GT245XXXXXXX
GX255, GX335, GX345, GX355XXXXXXX
X500, X520, X530, X534, X540
X570, X580, X584, X590		XXXXXXXX
X465, X475, X485, X495, X575, X585, X595XXXXXXXXX
X700, X720, X724, X728, X729, X740, X744, X748, X749
X710, X730, X734, X738, X739, X750, X754, X758		XXXXXXXXX
