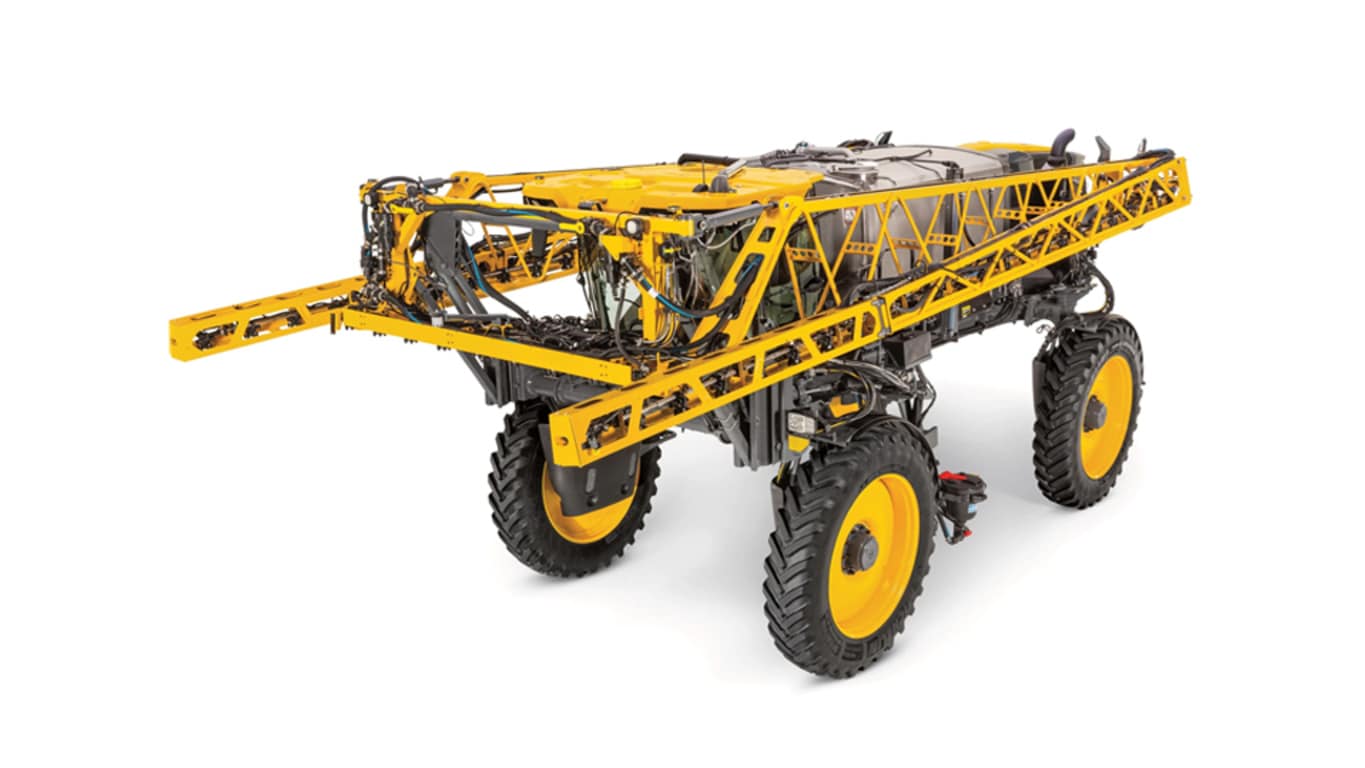

Hagie™ Self-Propelled Sprayer
Nothing Runs Like a Deere™
  • 7,571 L (2,000 gal.) tank
  • Up to 40.23 m (132 ft.) boom
  • 298 kW, 9.0 L engine
  • 56.3 km/h transport speed
Make an Enquiry on This Machine
Features
The STS20 Hagie™ Self-Propelled Sprayer is the largest of the STS line of sprayers.
Expand All
Enter the field any day with high clearance, all-wheel steer (AWS) and balanced machine weight
Hagie™ STS Sprayer in corn Hagie™ STS Sprayer in corn

No matter the field or crop conditions, it is important to be able to feed and protect your crops throughout the entire growing season. The all-season capability and performance of the STS Sprayers enable you to enter the field any day.



  • Gliding over crop with 1.88 m (74 in.) of underframe clearance combined with a narrow in-row crop package and smooth transition shields minimizes impact and crop disturbance.
  • Standard AWS ensures the rear tires follow the front tires, leaving only two tracks while turning.
  • Not only does the STS excel in late-season, tall-crop applications, but its balanced weight distribution with the tank full, empty, or anywhere in between and optional floatation tires enable it to perform in challenging field conditions all year long.



Hagie is a trademark of Hagie Manufacturing Company and similar to John Deere branded equipment, John Deere will also support Hagie equipment.

Precise on-target rate with the PowrSpray™ solution control system
PowrSpray solution keypad PowrSpray solution keypad

Covering acres is important and doing so with accuracy and precision is essential. The PowrSpray solution control system found on the Hagie™ STS Sprayers makes sure every acre is covered precisely. The predictive pump control ensures target rates are accomplished faster, even in challenging dynamic conditions. Add the optional dedicated pull-on pump for fast and accurate solution tank loading and/or ExactApply™ for nozzle-by-nozzle control.

  • Predictive pump control anticipates changes in flow to maintain target rate
  • Electronic solution tank level indication
  • Fast and accurate loading with the optional dedicated pull-on pump
  • Optional eductor
  • Optional ExactApply nozzle control

The solution keypad found on the cab entry ladder provides control of critical solution functions from the ground, eliminating the need to climb back into the cab during tending.

For operators that prefer the front fill location, there is an option to relocate the PowrSpray solution control system keypad to the front fill location for ease of utilizing the features offered on the keypad.



Dealer Use Only:



Code

Description

8925

Fill Control Keypad Relocation – Front

Only one keypad location can be used at a time. The unused keypad will be unplugged and not operational.

V437024

Hagie is a trademark of Hagie Manufacturing Company and similar to John Deere branded equipment, John Deere will also support Hagie equipment.

Cover more acres with the Hagie™ hybrid front boom
Hybrid sprayer boom Hybrid sprayer boom

Cover acres with confidence and control. The Hagie hybrid front boom lineup offers a lightweight yet durable design by combining both steel and aluminum. Strong steel composes the interior sections of these booms, providing strength and flexibility where you need it. The outer sections are made of aluminum, reducing overall weight and improving control. Special consideration for hose and plumbing routing improves operator visibility and overall boom cleanliness. Spray tips and nozzle bodies are protected from impact as they are positioned within the booms structure.



  • Improved visibility and lighter overall weight than all-aluminum booms on previous-generation models
  • Available in a range of widths and nozzle spacings
  • Large range of application heights from 58.4 to 279.4 cm (23 to 110 in.)
  • Three-direction, spring-applied outer breakaway
  • Hydraulic main boom breakaway
  • 18-m (60-ft) outer wing folded width on 27-, 30-, and 36-m (90-, 100-, and 120-ft) booms
  • 21-m (70-ft) outer wing folded with on 40-m (132-ft)
  • Locking connection between the inner and outer sections of the boom ensures rigidity

Hagie is a trademark of Hagie Manufacturing Company and similar to John Deere branded equipment, John Deere will also support Hagie equipment.

Boom Update

The hydraulic cylinders have been updated along with surrounding structure to improve the folding and unfolding of the booms. The improved performance is especially beneficial when a drop system is installed.

Increased traction and programmable speeds with CommandDrive™ system

The electronically controlled CommandDrive drive system provides an infinite range of field speeds and operator adjustability. The single hydrostatic drive pump provides flow to four variable displacement wheel motors. The system works automatically to continuously adjust they system to match target speed.



  • Real time traction control – CommandDrive monitors for wheel slip and diverts oil flow to send power to the other wheels. This system monitors for slip front to rear, side to side, and crossways for maximum control and minimal slippage. Two predefined traction control settings are available (normal and severe) in addition to a custom setting that allows for manual control of both slip and de-stroke percentages.
  • Operator programmable speed ranges – Select the number of speed ranges from 1 to 20 and the first and last range top speed. This allows the drive system to be tuned for operator preference and field conditions.
  • Scroll wheel speed range selection – By scrolling the wheel on the back of the control handle, operators select the desired speed range. In addition to the scrolling feature, the scroll wheel can be pushed to rapidly change between spray and turn speed. Spray and turn speed can be set by the operator within the corner post display.



Simple turnkey experience with the StarFire™ 7000 Integrated Receiver
StarFire 7000 Integrated Receiver on Hagie™ STS Sprayers StarFire 7000 Integrated Receiver on Hagie™ STS Sprayers

The StarFire 7000 Receiver is the latest addition to the suite of Precision Ag Technology from John Deere. The StarFire 7000 Receiver offers greater accuracy, faster pull-in times, and season-to-season repeatability. This means less hardware, faster times recovering from a shading event, and the confidence that your guidance lines and boundaries do not shift from year to year. The integrated design further enhances the value that you have come to expect from StarFire products.

Similar to the StarFire 6000 Integrated Receiver, the StarFire 7000 eliminates all setup, installation, and calibrations. There is no need to verify machine and receiver measurements, as this has been done precisely for you at the factory. You will spend 60 minutes less per receiver move each season, which gives you more time to focus on other parts of your operation.

With updated Ethernet connectivity, software updates are easier and faster. StarFire 7000 Integrated Receiver maintains the speed to update software in under 4 minutes while remaining in the cab. Over-the-air updates are 85 percent faster with the StarFire 7000 Integrated Receiver because of Ethernet connectivity.

Benefits to the StarFire 7000 with SF-RTK
  • 5-year repeatability
  • 10-minute pull-in time
  • 2.5-cm (1-in.) pass-to-pass accuracy
  • Drop-in replacement for StarFire 6000 Integrated Receivers

To learn more about the StarFire 7000, visit the StarFire 7000 page.

A new level of luxury with the Ultimate Comfort and Convenience package
Cab with Ultimate Comfort and Convenience package Cab with Ultimate Comfort and Convenience package

The Ultimate Comfort and Convenience package offers unsurpassed visibility, operator comfort, control placement, and ride and sound quality.

  • Increased comfort from leather seat with massage, heating and cooling, electronic controls and better swivel
  • Easily make adjustments on the go
  • Improved visibility on the left and right with better sight lines to the crop



Vision leather seat Vision leather seat
Heating, ventilation, and massage controls for Vision seat Heating, ventilation, and massage controls for Vision seat
Electric position controls for Vision seat Electric position controls for Vision seat

Vision leather seat

  • Improved swivel seat – 16 degrees to the left and 16 degrees to the right
  • Heated and ventilated cooling
  • Massaging functions to reduce fatigue during long days in the field
  • Electronic controls that make it easier to adjust the seat to the preferred location
  • Pneumatic lumbar
  • Cushion length adjust
ActiveSeat II
ActiveSeat II ActiveSeat II
ActiveSeat II ActiveSeat II

When spraying and transport conditions are not ideal, it is important that comfort is not sacrificed. With the Hagie’s Ultimate cab package, a seat suspension package is offered to improve spraying comfort even further. This seat provides the highest level of comfort during bumpy conditions and ensures operators will finish their long harvest days without aches and pains.



Redesigned using an electric motor for quicker response and a simplified design, the ActiveSeat II seat suspension option significantly reduces vertical motion of the operator up to 90 percent compared to the machine, ensuring a smoother ride than any seat suspension options offered by Hagie in the past.

Digital touchscreen radio Digital touchscreen radio

Apple CarPlay® radio
The 16.5-cm (6.5-in.) state-of-the-art digital touchscreen radio works with Apple CarPlay and provides a multitude of entertainment options. CarPlay is a smarter, safer way to use an iPhone® mobile device when driving.

  • Connect phone via Bluetooth® wireless or USB to play music
  • Check the weather
  • Navigation
  • Phone calls
  • Voice control



Door cinch with remote door opening

  • Door cinch reduces the force needed to close the door
  • Electric motor makes it easier to open and close the door without slamming
  • Remote door opening and door lock-unlock fob
  • Minimize residue exposure from outside surfaces by using the door fob to remotely open the door
CommandARM™ console and controls with display CommandARM™ console and controls with display

4600 CommandCenter™ Display

  • Improved visibility with 80 degrees of swivel to the right
Refrigerator Refrigerator

Refrigerator

  • Keep beverages and other items cool



Plenty of storage

  • Three cup holders
  • Easily accessible storage compartments located to the right and behind the seat
Footrest Footrest

Bluetooth is a trademark of Bluetooth SIG, Inc. Apply CarPlay and iPhone are trademarks of Apple Inc.

Specifications
Expand All
Key Specs
Rated engine power
Maximum engine power
Solution system - Capacity
7570 L
2000 gal.
Rinse tank capacity
757 L
200 gal.
Boom length options/Material
Hybrid steel and aluminum: 18/27, 18/30, 18/36, or 21/40 m
60/90, 60/100, 60/120, or 70/132 ft
Spray speed range
0.8 to 40 km/h
0.5 to 25 mph
Transport speed, maximum
56 km/h
35 mph
Suspension
Independent air-ride
Crop clearance with standard tires
188 cm
74 in.
Total weight (empty solution tank)
12,429 kg
33,300 lb
Engine
Make
Rated engine power
298 kW
400 hp
Maximum engine power
Power bulge
Emissions
Final Tier 4 (FT4)
Number of cylinders
Six
Displacement
9 L
548 cu in.
Transmission
Alternator
300 amp
Fuel tank capacity
492 L
130 gal.
Diesel exhaust fluid (DEF) tank capacity
29 L
7.7 gal.
AutoTrac speed, maximum
Solution System
Capacity
7570 L
2000 gal.
Tank material
Stainless steel
Rinse tank capacity
757 L
200 gal.
Solution pump flow
Quick fill size
7.6 cm
3 in.
Rate control make
Automatic section control
Optional
Display
Solution system control
PowrSpray™ system
Fill location
Standard: Side
Optional: Front
Fill pump flow
Chemical injection method
Optional: Raven Sidekick
Chemical eductor
Optional
Chemical eductor capacity (size)
19 L
5 gal.
Flow meter size
5.8 cm
2 in.
Suction strainer
Pressure strainer
50 mesh
Boom strainer
Standard 80 mesh
Boom
Boom length options
Hybrid steel and aluminum: 18/27, 18/30, 18/36, or 21/40 m
60/90, 60/100, 60/120, or 70/132 ft
Automatic boom height
NORAC® UC7™ with Active Wing Roll (AWR)
Plumbing material
Stainless steel
Boom Material
Ground height adjustment
58 to 272 cm 23 to 107 in.
Breakaway width
For 27-m (90-ft) booms: 1.5 m 5 ft
For 18/30 or 18/36 (60/100 or 60/120 ft): 3 m 10 ft
For 40-m (132-ft) booms: 3.3 m 11 ft
Boom sections
On 27-m (90-ft) boom: 7 sections
On 30-, 36-, and 40-m (100-, 120-, and 132-ft) booms: 9 sections
Nozzle spacings
Drivetrain
Type
CommandDrive™
Drive
Full-time four-wheel drive (4WD)
Shifting
Infinitely variable - Operator programmable
Hydraulic reservoir capacity
113.5 L
30 gal.
Spray speed range
0.8 to 40 km/h
0.5 to 25 mph
Transport speed, maximum
56 km/h
35 mph
Chassis
Type
Dry compatible
No
Suspension
Independent air-ride
Crop clearance with standard tires
188 cm
74 in.
Front tires
VF380/90R54, VF380/105R50, VF420/95R50, VF480/80R50
Rear tires
VF380/90R54, VF380/105R50, VF420/95R50, VF480/80R50
Flotation tires
VF480/80R50, VF 620/70R46, IF710/65R46
Hydraulic tread adjust
Not available
Wheel tread spacing
305 cm
120 in.
Wheel base
457 cm
180 in.
Turning radius
With all-wheel steer (AWS) on: 5.8 m 18.9 ft
With AWS off (center of outside tire): 8.9 m 29.2 ft
Parking brake
Integrated in final drives
Primary brakes
Drive system dynamic braking
Ladder raise/lower
Hydraulic
Total weight with 80-ft boom
Total weight with 90-ft boom
14,968.5 kg
33,000 lb
Total weight with 100-ft boom
14,923 kg
32,900 lb
Total weight with 120-ft boom
Total weight with carbon fiber boom (empty solution tank)
Total weight (empty solution tank)
Options
Pressure washer
Air compressor
Onboard air
Foam marker capacity
Remote service tools
Additional Information
We want to make owning and operating your equipment simple and affordable.
We have a range of finance options to suit any customer.  Contact your local Emmetts branch, or visit these sites for more information and a free quote.
