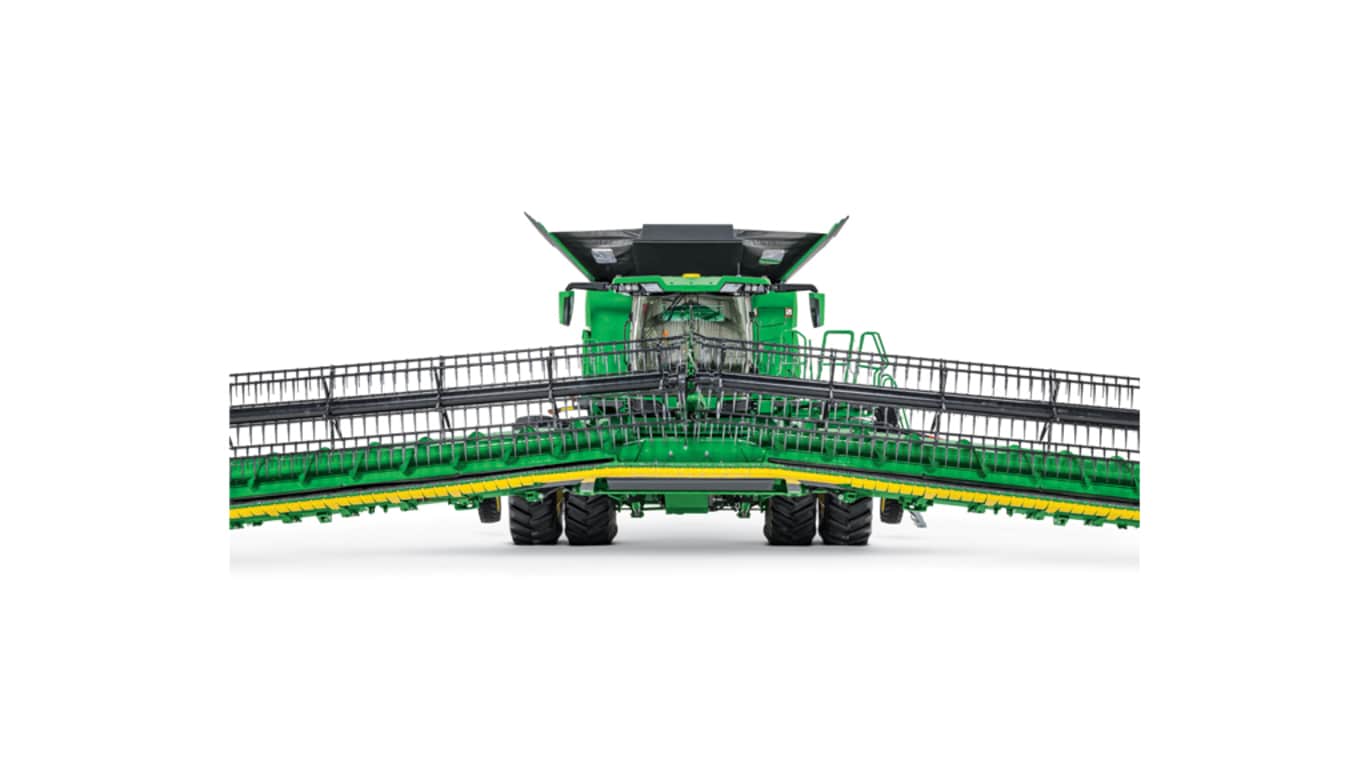

X Series Combine with 15.2-m (50-ft) Hinged Draper

John Deere HDR and HDF Drapers follow the ground by pivoting, gliding, and flexing over uneven fields to provide the best cut possible.

• Achieve the best of both worlds by adding a flexible cutterbar to a hinged draper, which already provides double the wing range of the MacDon® FD1 Draper – Hinged Drapers are available with a rigid knife on an HDR and a flexible knife on an HDF. The HDF Hinged Draper reduces missed crop when cutting on the ground in soybeans or lentils by 6 percent compared to MacDon and 2 percent compared to the HDR and RDF.*
  • *NOTE: Theoretical internal John Deere study between a 45-m (13.7-ft) MacDon FD75, 640FD, HDR50, and HDF50 based on static machines by measuring the area between the knife and ground based on the average lowest pod.
• Capture more crop by adjusting to the ground – Industry-exclusive hydraulic suspension separates the header from the combine, allowing it to float over the field for a more consistent cut. As the header approaches extreme field terrain, Active Feeder house Position Control automatically adjusts the feeder house height to position , enabling more float range in challenging fields
• Harvest in difficult crop conditions – Capture downed crop with the push of a button on the CommandARM™ console to automatically raise the gauge wheels and extend your reel out and down. Harvest the most challenging lodged crop confidently with a 24 percent increase in reel torque (compared to the 700FD).
• Keep a clean cutterbar no matter the field or crop – A more consistent distance between the reel fingers and cutterbar (compared to the MacDon FD145) ensures the crop is cleanly swept across the cutterbar and evenly fed into the combine throughout the full wing range.
• Improve the consistency of stubble height by 25 percent compared to the MacDon FD1 – Achieve consistent stubble height behind the combine – an advantage for better seeding performance in no-till applications. Compared to the competition, operators no longer must leave the cab to set the cut height with John Deere height control gauge wheels. The draper automatically maintains the desired cut height while floating over the land.

MacDon is a trademark of MacDon Industries Ltd.

X Series Combine with 15.2-m (50-ft) draper

The goals for harvest are simple – harvest on time and put more grain in the tank. The John Deere HDR and HDF Drapers not only harvest more bushels per hour and acres per day but capture more crops along the way.

• Reduce cutterbar loss by 25 percent – John Deere Grain Saver Draper Belts help trap grain before it can roll past the cutterbar onto the ground (compared to standard draper belts) with a unique crosshair (+) design.
• Cut header loss by up to 25 percent – Decrease header loss in high-volume canola with large fingered top augers (compared to non-fingered augers) that grab fluffy crops and pull them against the draper belts. Fingered top augers let you easily straight-cut canola.
• Reduce center section losses by up to 45 percent - Capture more crop with the center section seal kit.
• In-cab settings help you spend more time harvesting – In-cab header downforce  adjustment saves time during the day compared to out-of-cab, by-hand adjustments on MacDon® models.

MacDon is a trademark of MacDon Industries Ltd.

Cutterbar length

13.7 m
45 ft

Knife drive

Double-cut, dual-drive, shaft-driven cutterbar: 10.2 cm
4 in.

Knife speed

X Series Combine: 520 cycles/min
S-Series Combine: 490 cycles/min

Pickup reel operating speeds

8-70 rpm

Draper belts speed control

Hydraulic from cab (side belts only)

Type

Straight-line knife drive system

Length

13.7 m
45 ft

Knife drive

Double-cut, dual-drive, shaft-driven cutterbar: 10.2 cm
4 in.

Knife speed

X Series Combine: 520 cycles/min
S-Series Combine: 490 cycles/min

Cutterbar tilt

Base skid shoe height

3.8 cm
1.5 in.

General

Number of slats

Six bat poly

Fingers

Nylon

Diameter

106.7 cm
42 in.

Height control

Hydraulic

Speed control

Hydraulic

Reel lift

Off the cutterbar: 100.6 cm
39.6 in.

Reel fore and aft

Fore of the cutterbar: 26.4 cm
10.4 in.

Fore of the cutterbar

Reel resume

Base

Reel reverse

Base

Operating speeds

8-70 rpm

Operating speeds (54-in. reel)

Number of slats

Diameter

Height control

Speed control

Operating speeds

Width

Side belts: 5.9 m
19.3 ft
Center belts: 200 cm
79 in.

Belt depth

100 cm
39.8 in.

Cleat height

19 mm
0.75 in.

Operating speed

Speed control

Hydraulic from cab (side belts only)

Center belt reverse

Base

Diameter

40.6 cm
16 in.

Feed drum fingers

Heavy-duty and round with breakaway notch and retainer
Diameter: 16 mm
0.625 in.

Number of fingers

18

Auger finger platform

Triple chevron, retracting

Finger reach

152 mm
6 in.

Drum/auger reverse

Base

Operating speed

Low speed: 200 rpm
High speed: 240 rpm

Center cleanout door

Base

Type

Electrohydraulic

Header height sensing on the ground

Base

Header height sensing off the ground

Base

Type

Optional: hydraulic drive
250-350 rpm

Fingered augers

Optional

Size

Diameter: 43.2 cm
17 in.

Platform length

14.6 m
47.8 ft

Overall operating depth

With dividers: 3.2 m
10.6 ft

Transport width, field position

Transport width on wheel, less dividers

Transport length, hitch extended
