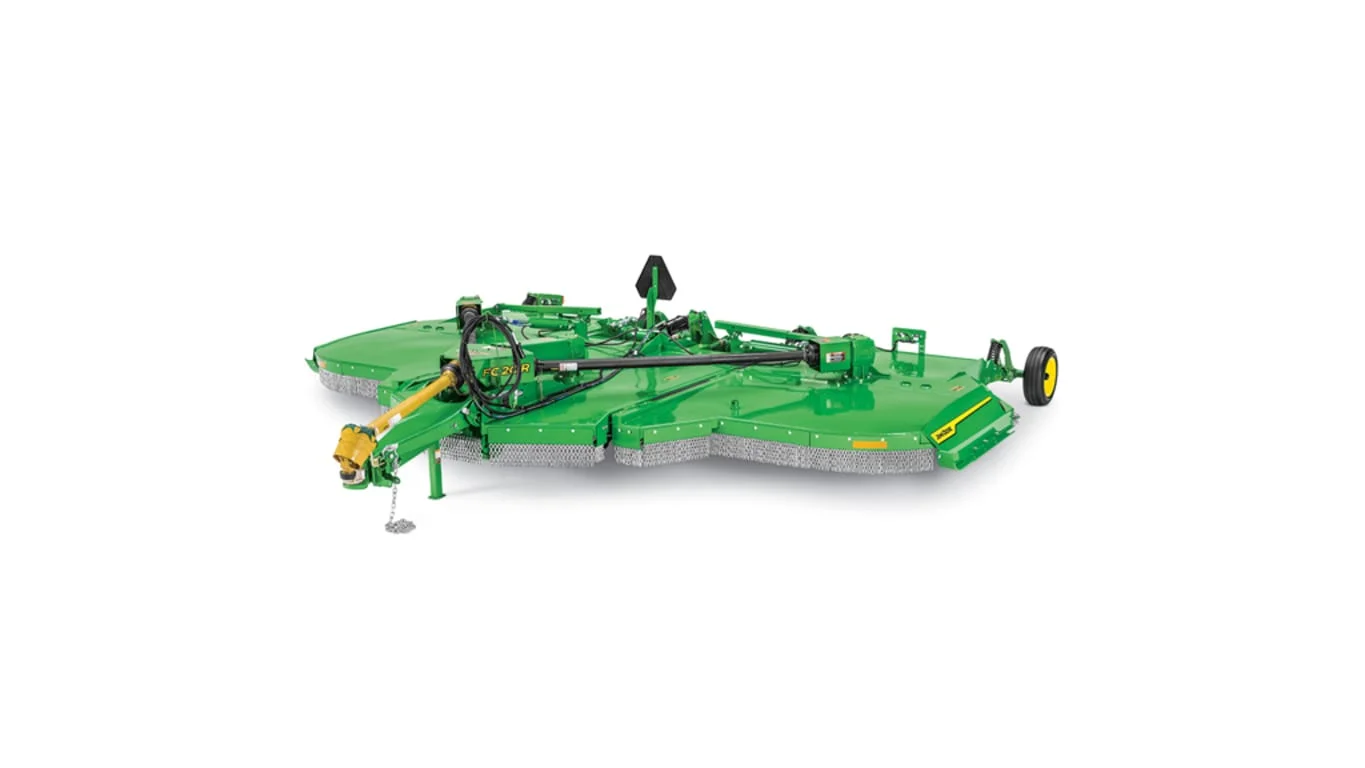

FC20R
Flex Wing Rotary Cutter
Nothing Runs Like a Deere™
- 6.10 m (20 ft.) cutting width
- 540 or 1000 PTO RPM
- 10.16 cm (4-inch) cutting capacity with optional high impact blades for 12.7 cm (5-inch) cutting capacity
- Rear wheel torsional suspension
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
New 6.10 meters (20 foot) cutting width has a newly designed cutter chamber.
Specifications
Expand All
Key Specs
- Cutting width
- 6.1 m
20 ft
- Cutting capacity (diameter)
- 101.6 mm
4 in.
- Tractor PTO HP range
- 56 kW
75 hp
- Transport width
- At wing wheels: 3.4 m 11.1 ft
- Deck thickness
- 7 gauge - 4.55 mm
0.18 in.
- Side skirt thickness
- 3 gauge - 6 mm
0.24 in.
- Approx. weight
- 3466 kg
7643 lb
- Drivelines - Size - Main
- CV ASAE Category 6, splined telescoping profiles
- Blade tip speed - 540 rpm - 1000 rpm
- 540 rpm: 81.7 m/s
268.1 fps
1000 rpm: 83 m/s
272.4 fps
- Gearboxes
- 5-year warranty
Capacity
- Cutting width
- 6.1 m
20 ft
- Cutting height
- 25.4-406.4 mm
1-16 in.
May vary with suspended tongue
- Cutting capacity (diameter)
- 101.6 mm
4 in.
- Cutting chamber depth
- 254 mm
10 in.
Tractor Compatibility
- Tractor PTO HP range
- 56 kW
75 hp
- Tractor PTO
- 540 or 1,000 rpm
- Static Vert Drawbar Load Rating
Hitch
- Type
- Standard self-level hitch clevis with 57.2-cm (22.5-in.) narrow-profile width
Ball-type self-level hitch with 57.2-cm (22.5-in.) narrow-profile width and 2-degree rotation freedom to each side
- Category
- Hitch width
- Jack stand
- Mechanical jack stand in base for all machines with hydraulically operated height, stays vertical while raising/lowering
Dimensions
- Transport width
- At wing wheels: 3.4 m 11.1 ft
- Overall width
- 6.2 m
20.3 ft
- Overall length
- 5.3 m
17.3 ft
- Deck shape
- Easy-clean smooth top deck
- Deck type
- Single
- Deck thickness
- 7 gauge - 4.55 mm
0.18 in.
- Side skirt thickness
- 3 gauge - 6 mm
0.24 in.
- Hinges
- Intermittent cast steel segments - maintenance-free single 2.5-cm (1-in.) diameter full-length hinge pin
- Approx. weight
- 3466 kg
7643 lb
Drivelines
- Size
- Main
CV ASAE Category 6, splined telescoping profiles
Connecting
ASAE Category 5, splined telescoping profiles
- Protection
- Connecting
No-seize, slip-clutch driveline
Gearcases
- Number
- Four
- HP rating
- Transfer
Continuous: 186 kW
250 hp
Peak: 224 kW
300 hp
Center
Continuous: 93 kW
125 hp
Peak: 168 kW
225 hp
Outer
Continuous: 93 kW
125 hp
Peak: 168 kW
225 hp
Blades
- Thickness
- 13 mm
0.5 in.
- Width
- 102 mm
4 in.
- Type
- Suction
- Overlap
- 152 mm
6 in.
- Blade rotation
- Blade tip speed
- 540 rpm
81.7 m/s
268.1 fps
1000 rpm
83 m/s
272.4 fps
- Material flow system
- Blade holder
- Type
Round stump jumper and standard deck rings for maximum protection of blades and blade carrier against obstruction damage
Hydraulics
- Wing lift
- Independent; includes spring assist unfolding
- Wing flex
- For transport: upward 90 degree (angle)
Upward working angle: 45 degree (angle)
Downward working angle: 22 degree (angle)
Wheels
- Type
- Option 1
5-bolt, laminated: 21x5.25x9
Option 2
5-bolt, 24PR severe-duty ag: 26x9x14.5
5-bolt, 24PR severe-duty ag foam filled: 26x9x14.5
- Suspension
- Torsional suspension
- Row width adjustment
- Yes
- Wing-leveling adjustment
- Easy adjust turnbuckle with bearing
Shielding
- Front
- Single-row chain guard
Optional: double row
- Rear
- Single-row chain guard
Optional: double row
Warranty
- Gearboxes
- 5 years
- Date collected
