D600 Draper and interchangeable rotary platform

D600 Draper has an interchangeable rotary platform:

• Interchangeable on W200M and R Series units in 30 minutes or less
• Growers can use one traction unit for harvesting both small grains and hay

Center-driven belts

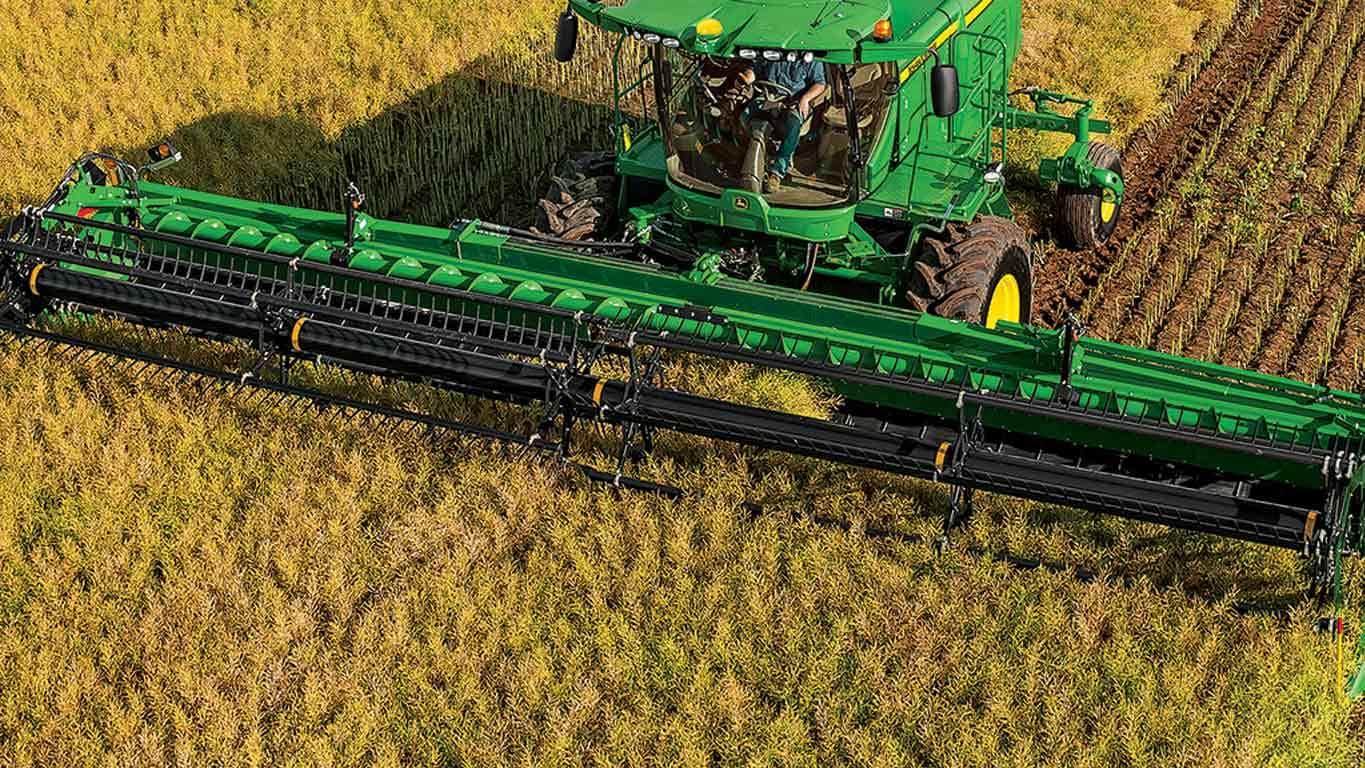

D600 Draper on W235 Windrower

• Deliver increased torque
• Enable greater productivity with minimal belt slippage
• Increase performance in heavy crop conditions

Red circles point out the location of the belt drive motors

• Draper belts on the D600 are driven from the center of the platform
  • Delivers increased belt performance compared to drapers with end-driven belts

Belt drive motors

Motor driving the left-hand belt

Motor driving the right-hand belt

Due to the motors pulling the belt (instead of pushing in an end drive system), there is less slack in the belt. This delivers an increase in belt torque.

As a result, producers experience minimal belt slippage and increased performance in heavy crop conditions due to the center-driven belt system.

D600 Draper

The D600 Series includes an improved reel that increases durability in heavy crop conditions. The dual drive offers more versatility for operators to match their crop conditions and offers more reel torque for heavy crop conditions. The system can be quickly reconfigured by changing quick couplers to offer a series configuration for a higher reel speed to meet the needs of lighter crop conditions.

The cam reel allows the reel to efficiently lift crop across the cutterbar and release it onto the draper belts.

D600 Draper teeth

• Easy reel tooth replacement is done with a 90-degree turn using a wrench. It allows the reel tooth to be removed and replaced.
• Additional teeth can be added at any location along the extruded tooth bar.

Sales, parts, and service support from a local John Deere dealer offers overnight parts delivery and a well-trained support staff.

D600 Draper on windrower

The draper hydraulic pump control adjusts knife, belt, and reel speeds to match the ground speed. This provides consistent feeding as you move through the field.

John Deere D625, D630, and D636 Drapers can windrow out of the center, right, or left ends of the draper with the press of a button using the hydraulic shift option (double swath package).

• Larger windrows to match combine or self-propelled forage harvester
• Match narrower-width drapers with higher-capacity harvesting
• Place higher-density windrows in front of harvesters when yields are low
• Discharge two windrows side by side for uniform combine or forage harvester feeding

First pass with right discharge

Second pass with right discharge

Third pass with left discharge

Center discharge

Cutterbar - Type

John Deere double-cut knives: 10.2 cm
4 in.

Cut width (length)

7.6 m
25 ft

Reel type

Hydraulic

Fingers

Plastic

Belt width

V-guided draper belt: 106.7 cm
42

Platform length

Overall operating depth

Transport width, field position

Transport width on wheel, less dividers

Transport length, hitch extended

9 m
29.6 ft

Platform Weight 5 Bat

Platform Weight 6 Bat

Platform Weight 9 Bat

Type

John Deere double-cut knives: 10.2 cm
4 in.

Cut width (length)

9.1 m
30 ft

Knife drive

Standard: Single motor and knife drive
Optional: Two hydraulic motors and two knife drives

Knife speed

520 rpm

Stroke length

98 mm
3.9 in.

Cutterbar tilt

Hydraulic, adjustable from cab

Guards

Hold Downs

Reel type

Hydraulic

Number of bats

Six

Fingers

Plastic

Diameter

1118 mm
44 in.

Height control

Hydraulic, adjustable from cab

Speed control

Multi-function lever, in cab

Reel lift

Hydraulic, adjustable from cab

Reel fore and aft

Hydraulic, adjustable from cab

Reel resume

Reel reverse

Operating speeds

Operating speeds (54-inch reel)

Center tube diameter: all reel sizes

Finger Length

Finger Spacing (staggered on alternate bats)

Finger Tip Radius (adjustment range – factory assembled)

Span

Belt width

V-guided draper belt: 106.7
42 in.

Delivery opening width

Delivery, double swath opening: 137.2 cm
54 in.
Delivery, single swath opening: 203.2 cm
80 in.

Delivery opening height

Cleat height

Draper drive

Operating speed

Speed control

Remote canvas speed control

Deck tilt

Deck extensions

Type

Header height sensing on the ground

Header height sensing off the ground

Platform length

Overall operating depth

Operating width (field)

9.1 m
30 ft

Transport width (reel fully retracted)

2.6 m
8.5 ft

Transport width, field position

Transport width on wheel, less dividers

Transport height

2.44 m
29.6 ft

Transport length, hitch extended

10.5 m
34.6 ft

Approximate weight (base platform without reel)

1232 kg
3513 lb

Approximate weight (base platform with reel)

2710 kg
5975 lb

Approximate weight (with transport)

Platform Weight 5 Bat

Platform Weight 6 Bat

Platform Weight 9 Bat

Center opening width between belts

Back sheet opening

Deck shift / double windrow capability (manual / hydraulic / not available)

Gauge wheels

Optional: Adjustable castoring gauge wheel

Integrated slow speed transport system

Self-contained transport, including hitch, jack and axle, is conveniently stored on the swather table

Center Link Extended

Center Link Retracted

Cutterbar Lift Range (measured at guard tip) (Center link fully retracted)

Guard Angle (cutterbar on ground)

Knife Sections
