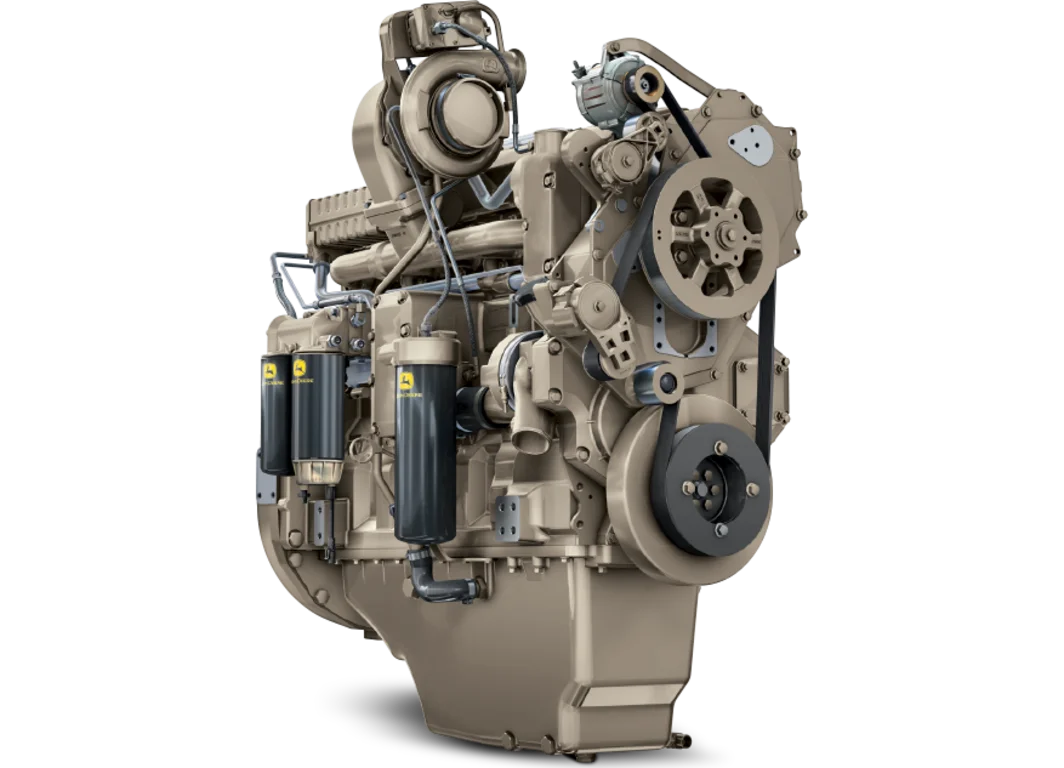

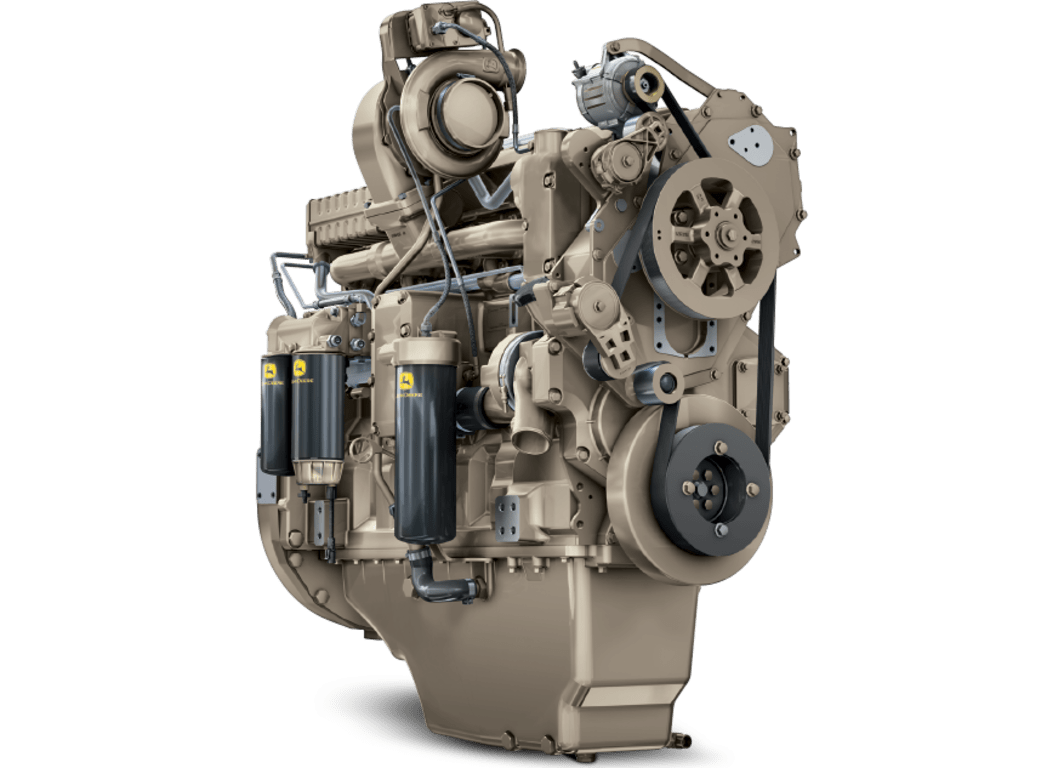

6135HFG75
13.5L Generator Drive Engine
Nothing Runs Like a Deere™
- PowerTech™ E
- Standby: 563 kW (754 hp) @ 1800 rpm
- Emergency stationary applications only
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
See how the 563 kW (754 hp) Tier 3 John Deere 6135HFG75 generator drive diesel engine with fixed geometry turbocharger provides excellent breathing from a lower-cost 2-valve cylinder head for OEM gen-set applications
Expand All
Fixed geometry turbocharger
- Fixed geometry turbochargers are precisely matched to the power level and application
4-valve cylinder head
- Provides excellent airflow resulting in better transient response
- Cross-flow design
Air-to-air aftercooled
- Most efficient method of cooling intake air to help reduce engine emissions while improving transient response time
- Enables an engine to meet emissions with better fuel economy and the lowest installed costs
EUI fuel system
- Electronic unit injector (EUI) fuel system provides variable common rail pressure, multiple injections, and higher injection pressures up to 2,000 bar (29,000 psi). It also controls fuel injection timing and provides precise control for start, duration, and end of injection
John Deere electronic engine controls
- Electronic engine controls monitor critical engine functions, providing warning and/or shutdown to prevent costly repairs and eliminate the need for add-on governing components, all lowering total installed costs.
Additional features
- Non-EGR, non-VGT
- Increased power density
- Meets a key power node of 500 kWe standby power
- Available with a NSPS emergency stationary label for the U.S. and Canadian markets only, no prime ratings available
- Certified to meet Tier 2 emissions as required by emergency stationary regulations (>560 kW)
Specifications
Expand All
Emissions Certifications
- EPA Tier 2
- EPA Tier 3
General Engine Data
- Model
- 6135HFG75
- Number of cylinders
- 6
- Displacement-- L (cu in)
- 13.5 (824)
- Bore and Stroke-- mm (in)
- 132x165 (5.20x6.50)
- Compression Ratio
- 16.0:1
- Engine Type
- In-line, 4-cylce
- Aspiration
- Turbocharged and air-to-air aftercooled
- Length - mm (in)
- 1362 (53.6)
- Width-- mm (in)
- 857 (33.7)
- Height-- mm (in)
- 1210 (47.6)
- Weight, dry - kg (lb)
- 1334 (2941)
Performance Data Range
- Rated Speed Hz (rpm)
- 60 (1800)
- Engine power - Prime kW (hp)
- 0 (0)
- Engine power - Standby kW (hp)
- 755 (563)
- Generator efficiency %
- 91-95%
- Rated fan power kW (hp)
- 22.5 (30)
- Power factor
- 0.8
- Calculated generator set output - Prime kWe (kVA)
- -- (--)
- Calculated generator set output - Standby kWe* (kVA)
- 492-513 (615-642)
