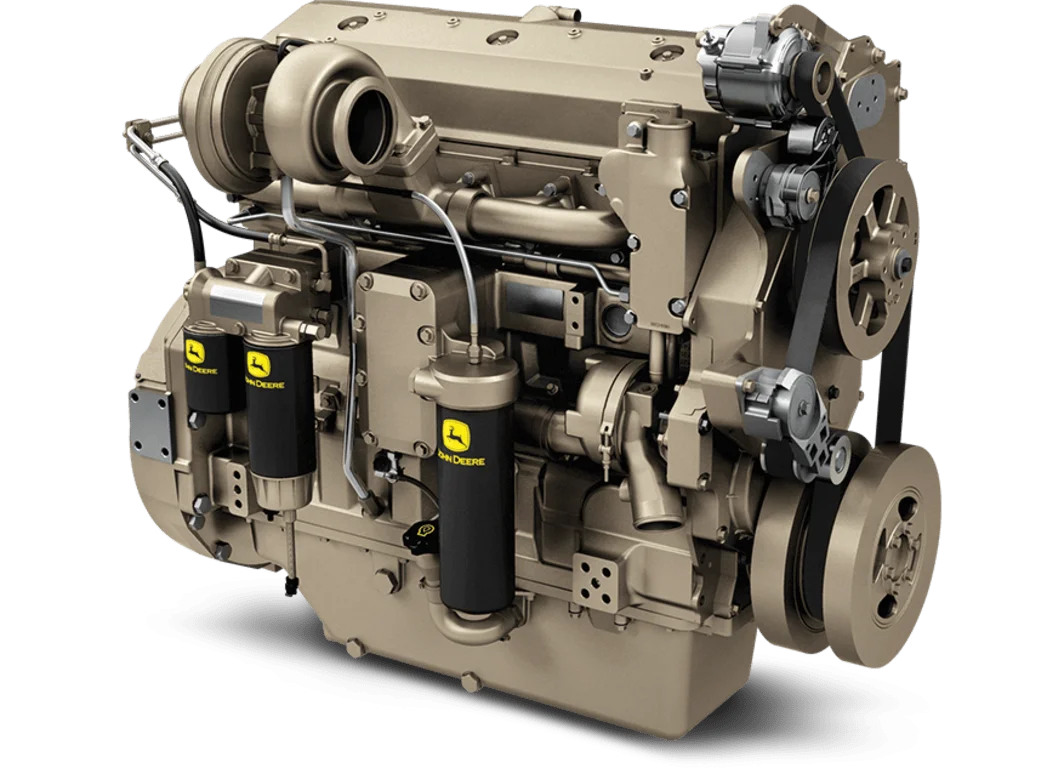

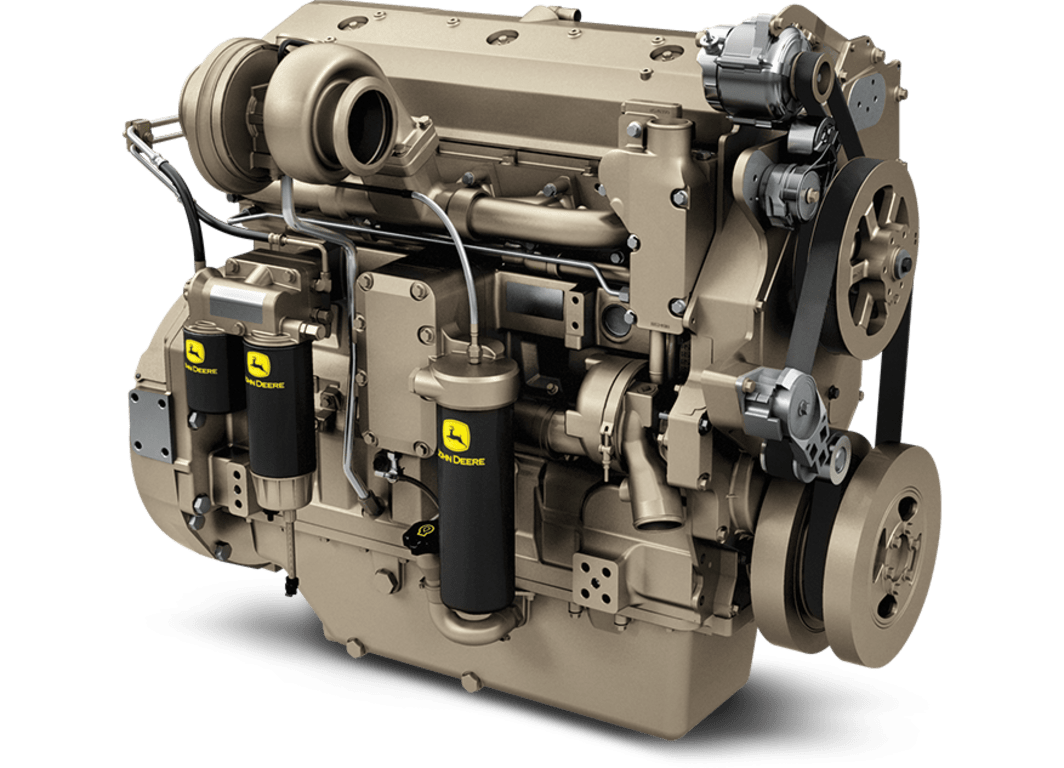

6135HF475
13.5L Industrial Diesel Engine
Nothing Runs Like a Deere™
- PowerTech ™
- 294 – 448 kW (394 - 600 hp)
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
Get details on 394 to 600 hp, 294 to 448 kW John Deere 6135HF475 industrial diesel engines for OEM equipment, including features, specs, and integrated support.
Expand All
Fixed geometry turbocharger
- Fixed geometry turbochargers are sized for a specific power range and optimized to provide excellent performance across the entire torque curve. They are also designed to maximize fuel economy between the engine's rated speed and peak torque.
Electronic unit pump (EUP) fuel system
- The EUI fuel system provides higher injection pressures up to 2,275 bar (33,000 psi). It also controls fuel injection timing and provides precise control for start, duration, and end of injection.
4-valve cylinder head
- The 4-valve cylinder head provides excellent airflow resulting in greater low-speed torque and better transient response time by utilizing a cross-flow design.
Air-to-air aftercooled
- This is the most efficient method of cooling intake air to help reduce engine emissions while maintaining low-speed torque, transient response time, and peak torque. It enables an engine to meet emissions regulations with better fuel economy and the lowest installed costs.
John Deere electronic engine controls
- Electronic engine controls monitor critical engine functions, providing warning and/or shutdown to prevent costly engine repairs and eliminate the need for add-on governing components, all lowering total installed costs.
Specifications
Expand All
Emissions Certifications
General Engine Data
- Model
- 6135HF475
- Number of cylinders
- 6
- Displacement-- L (cu in)
- 13.5 (824)
- Bore and Stroke-- mm (in)
- 132 x 165 (5.20 x 6.50)
- Compression Ratio
- 16.0 : 1
- Engine Type
- In-line, 4-Cycle
- Aspiration
- Turbocharged and air-to-air aftercooled
- Length - mm (in)
- 1362 (53.6)
- Width-- mm (in)
- 857 (33.7)
- Height-- mm (in)
- 1210 (47.6)
- Weight, dry - kg (lb)
- 1334 (2941)
Performance Data Range
- Intermittent - Rated power/Rated speed
- 428-448 kW (574-600 hp) @2100 rpm
- Intermittent - Peak power
- 448-458 kW (601-614 hp) @1900-2100 rpm
- Intermittent - Power bulge
- 0-7 % @1900 rpm
- Intermittent - Peak torque
- 2550 N·m (1881 ft-lb) @1575 rpm
- Intermittent - Torque rise
- 25-31%
- Heavy Duty - Rated power/Rated speed
- 373 kW (500 hp) @2100 rpm
- Heavy Duty - Peak power
- 410 kW (550 hp) @1900 rpm
- Heavy Duty - Power bulge
- 10 % @1900 rpm
- Heavy Duty - Peak torque
- 2290 N·m (1689 ft-lb) @1575 rpm
- Heavy Duty - Torque rise
- 35%
- Continuous - Rated power/Rated speed
- 294-320 kW (394-429 hp) @2100 rpm
- Continuous - Peak power
- 315-353 kW (422-473 hp) @1700-1900 rpm
- Continuous - Power bulge
- 6-10 % @1900 rpm
- Continuous - Peak torque
- 1870-2007 N·m (1379-1480 ft-lb) @1575 rpm
- Continuous - Torque rise
- 38-40%
