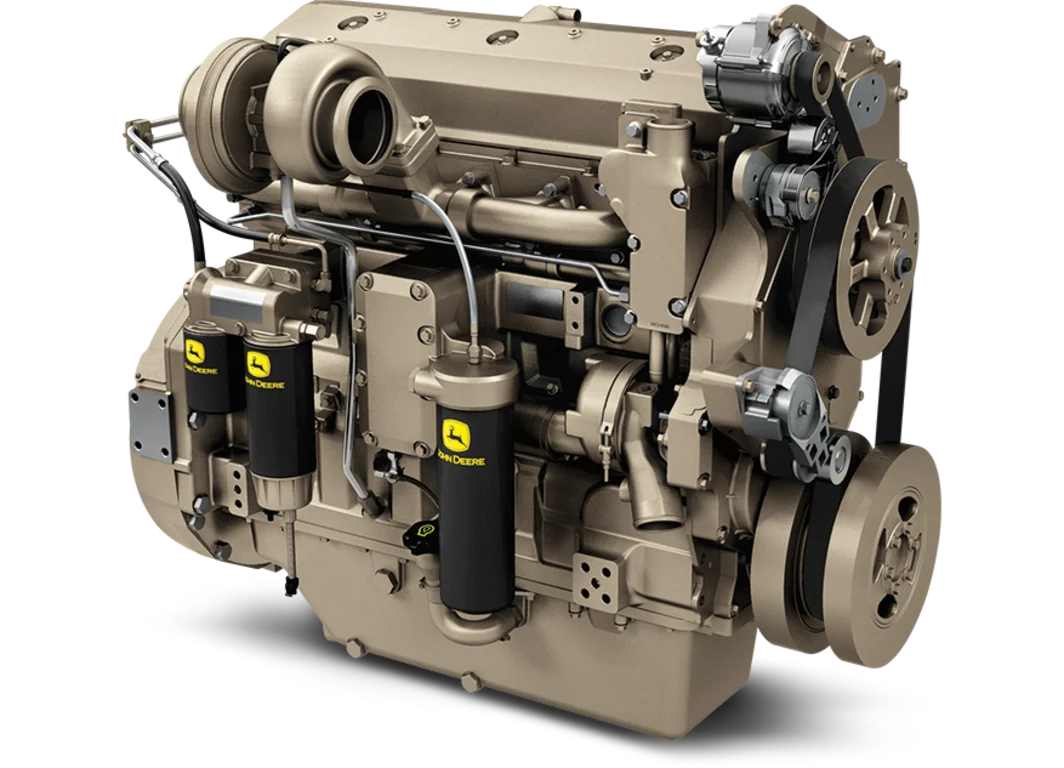

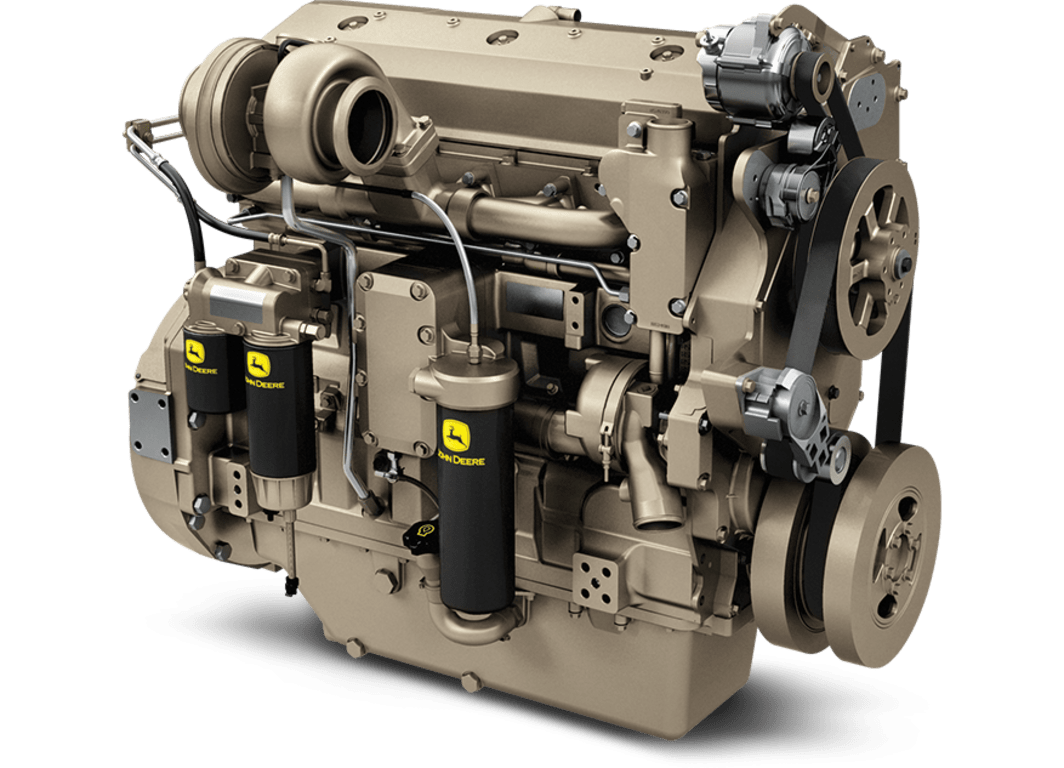

6135HF475
13.5L Generator Drive Engine
Nothing Runs Like a Deere™
- PowerTech™ E
- Standby: 330-460 kW (442-616 hp) @ 1800 rpm
- Prime: 300-418 kW (402 - 560 hp) @ 1800 rpm
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
See how the 355-456 kW (476-611 hp) EU Stage II John Deere 6135HF475 generator drive diesel engine advances the standard of excellence with an electronically controlled or mechanical fuel system in OEM gen-set applications.
Expand All
Fixed geometry turbocharger
- Fixed geometry turbochargers are precisely matched to the power level and application
4-valve cylinder head
- Provides excellent airflow resulting in better transient response
- Cross-flow design
Air-to-air aftercooled
- Most efficient method of cooling intake air to help reduce engine emissions while improving transient response time
- Enables an engine to meet emissions with better fuel economy and the lowest installed costs
EUI fuel system
- Electronic unit injector (EUI) fuel system provides variable common rail pressure, multiple injections, and higher injection pressures up to 2,000 bar (29,000 psi). It also controls fuel injection timing and provides precise control for start, duration, and end of injection
John Deere electronic engine controls
- Electronic engine controls monitor critical engine functions, providing warning and/or shutdown to prevent costly repairs and eliminate the need for add-on governing components, all lowering total installed costs.
Specifications
Expand All
Emissions Certifications
- EPA Tier 2
- EU Stage II
General Engine Data
- Model
- 6135HF475
- Number of cylinders
- 6
- Displacement-- L (cu in)
- 13.5 (824)
- Bore and Stroke-- mm (in)
- 132 x 165 (5.20 x 6.50)
- Compression Ratio
- 16.0 : 1
- Engine Type
- In-line, 4-Cycle
- Aspiration
- Turbocharged and air-to-air aftercooled
- Length - mm (in)
- 1362 (53.6)
- Width-- mm (in)
- 857 (33.7)
- Height-- mm (in)
- 1210 (47.6)
- Weight, dry - kg (lb)
- 1334 (2941)
Performance Data Range
- Hz (rpm)
- 60 ( 1800 )
50 ( 1500 )
- Generator Efficiency %
- 90-95
90-93
- Power Factor
- 0.8
0.8
- Engine power - Prime kW
- 300-410
323-415
- Engine power - Prime hp
- 402-550
433-556
- Engine power - Standby kW
- 330-460
355-456
- Engine power - Standby hp
- 443-617
476-612
- Rated Fan Power - kW
- 19.8-27.6
17.8-22.8
- Rated Fan Power - hp
- 26.6-37.0
23.9-30.6
- Calculated generator set output - Prime kWe
- 254-373
276-367
- Calculated generator set output - Prime kVA
- 317-467
345-458
- Calculated generator set output - Standby kWe
- 279-411
304-403
- Calculated generator set output - Standby kVA
- 349-513
379-504
