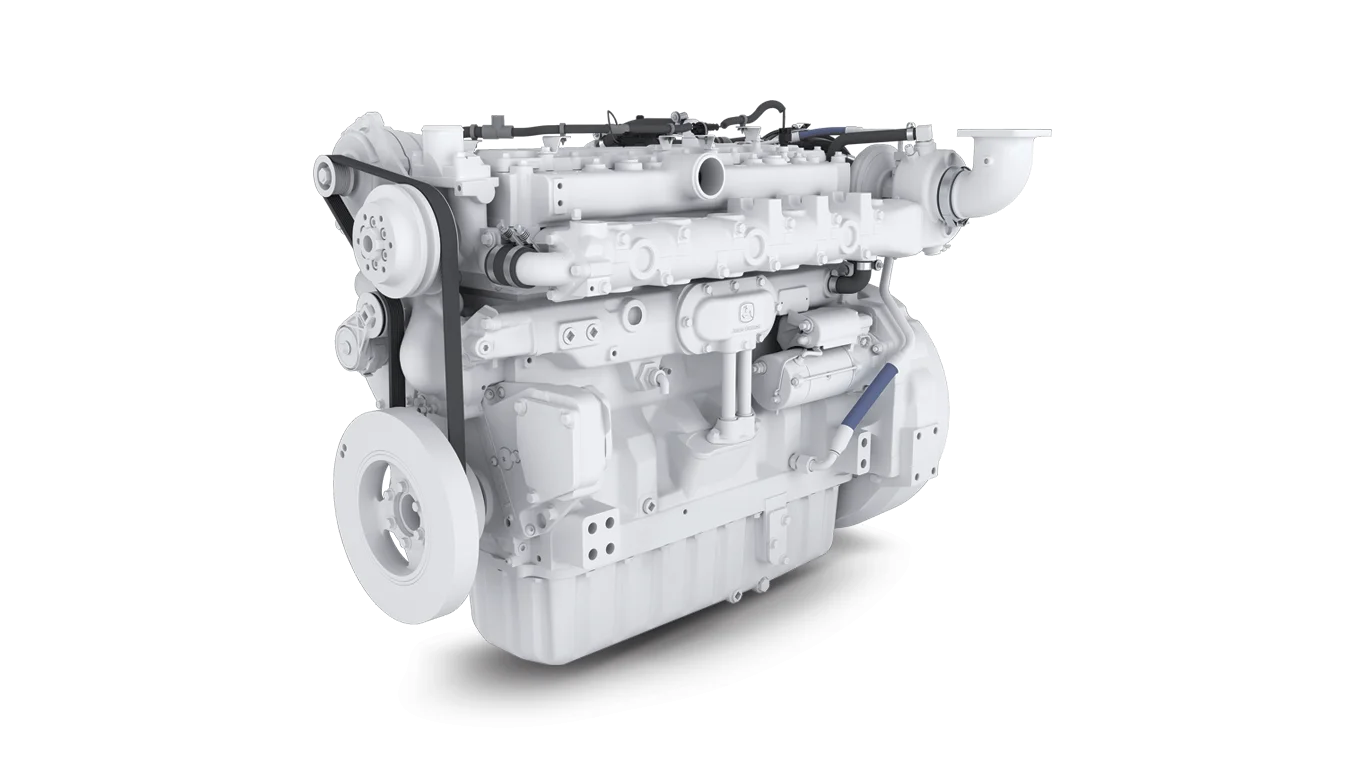

6090HFM85 Constant Speed
Industrial Marine Engine
Nothing Runs Like a Deere™
- 9.0L PowerTech™
- 238 kW (325 hp) @ 1800 rpm
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
Run pumps, winches, deck cranes, hydraulics, and generators with a Tier 3 John Deere constant speed industrial auxiliary engine.
Expand All
ABS type approved for use on classed & inspected vessel
- Water-cooled exhaust manifold and turbo to meet surface temperature requirements
- Marine Classification Society fuel hoses, lube and oil hoses
4-valve cylinder head
- The 4-valve cylinder head provides excellent airflow resulting in greater low-speed torque and better transient response. Cross flow design
Electronic unit injector (EUI) and engine control unit (ECU)
- The EUI fuel system provides variable common-rail pressure, multiple injections, and higher injection pressures, up to 2000 bar (29,000 psi). It also controls fuel injection timing and provides precise control for start, duration, and end of injection.
Air-to-air aftercooled
- An efficient method of cooling intake air to help reduce engine emissions while maintaining low-speed torque, transient response time, and peak torque. It enables an engine to meet emissions regulations with better fuel economy and the lowest installed costs.
John Deere electronic engine controls
- Electronic engine controls monitor critical engine functions, providing warning and/or shutdown to prevent costly engine repairs and eliminate the need for add-on governing components all lowering total installed costs. Snapshot diagnostic data that can be retrieved using commonly available diagnostic service tools.
- Controls utilize common wiring interface connector for vehicles or available OEM instrumentation packages; new solid conduit and “T” connectors to reduce wiring stress and provide greater durability and improved appearance.
- Factory-installed, engine mounted ECU and wiring harness and associated components. Industry- standard SAE J1939 interface communicates with other vehicle systems, eliminating redundant sensors and reducing vehicle installed cost.
Additional features
- Gear-driven auxiliary drives
- Self-adjusting poly-vee fan drive
- Single-piece low friction piston
- Low-pressure fuel system with "auto-prime" feature
- Directed top-liner cooling
Specifications
Expand All
Emissions Certifications
General Engine Data
- Model
- 6090HFM85
- Number of cylinders
- 6
- Displacement-- L (cu in)
- 9.0 (549)
- Bore and Stroke-- mm (in)
- 118.4 x 136 (4.66 x 5.35)
- Engine Type
- In-line, 4-cycle
- Aspiration
- Turbocharged and Aftercooled
- Length – mm (in) to rear of block
- 1081 (42.6)
- Width-- mm (in)
- 714 (28.1)
- Height-- mm (in)
- 965 (38.0)
- Weight, dry - kg (lb)
- TBD (TBD)
Performance Data Range
- Application Ratings
- Constant Speed
- Rated Power
- 238 kW (325 hp) @ 1800 rpm
- 10% Overload Power
- 262 kW (351 hp)
- Prime Torque
- 11264 Nm (932 lb-ft)
