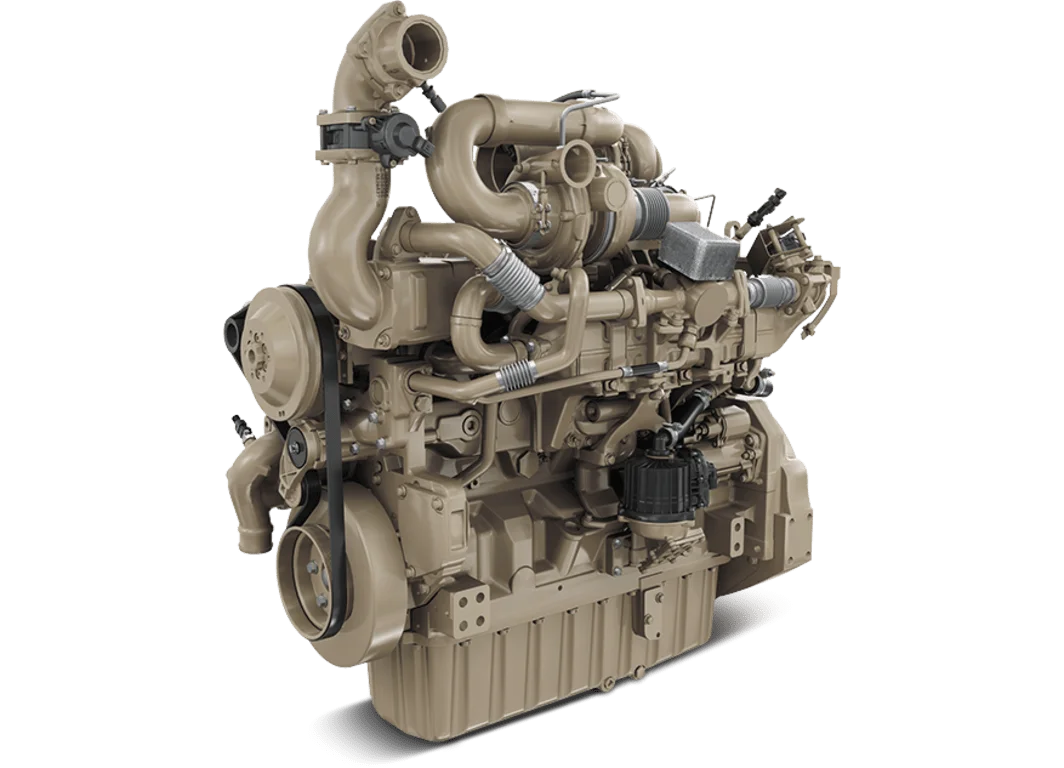

6090HFC95
9.0L Industrial Diesel Engine
Nothing Runs Like a Deere™
- 9.0L PowerTech™ PSX
- 242 - 317 kW (325 - 425 hp)
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
Get details on 325 to 425 hp, 242 to 317 kW John Deere 6090HFC95 industrial diesel engines for OEM equipment, including features, specs, and integrated support.
Expand All
Series turbocharger
- Fresh air is first drawn into the low-pressure turbocharger (fixed geometry) and compressed to a higher pressure. The compressed air is then drawn into the high-pressure turbocharger (VGT), where the air is further compressed.The high-pressure air is then routed through a charge air cooler and into the engine's intake manifold.
- By splitting the work between two turbochargers, both can operate at peak efficiency and at slower rotating speeds — lowering stress on turbocharger components and improving reliability. Series turbocharging delivers more boost pressure than single turbocharger configurations which results in higher power density, improved low-speed torque, and improved high altitude operation.
High-pressure common-rail (HPCR) and engine control unit (ECU)
- The HPCR fuel system provides variable common-rail pressure, multiple injections, and higher injection pressures up to 1,975 bar (29,000 psi). It also controls fuel injection timing and provides precise control for the start, duration, and end of injection.
Cooled exhaust gas recirculation (EGR)
- EGR cools and mixes measured amounts of cooled exhaust gas with incoming fresh air to lower peak combustion temperatures, thereby reducing NOx.
Exhaust filters
- These engines utilize a catalyzed exhaust filter that contains a diesel oxidation catalyst (DOC) and a diesel particulate filter (DPF). The DOC reacts with exhaust gases to reduce carbon monoxide, hydrocarbons, and some particulate matter (PM). The downstream DPF traps and holds the remaining PM. Trapped particles are oxidized within the DPF through a continuous cleaning process called passive regeneration.
- Passive regeneration occurs during normal operating conditions when heat from the exhaust stream and catalysts within the exhaust filter trigger the oxidation of the trapped PM. If passive regeneration cannot be achieved due to low temperature, load, or speed, then PM is removed using active regeneration — an automatic cleaning process controlled by the exhaust temperature management system.
4-valve cylinder head
- The 4-valve cylinder head provides excellent airflow resulting in greater low-speed torque and better transient response time by utilizing a U-flow design.
Air-to-air aftercooled
- This is the most efficient method of cooling intake air to help reduce engine emissions while maintaining low-speed torque, transient response time, and peak torque. It enables an engine to meet emissions regulations with better fuel economy and the lowest installed costs.
Engine performance
- Multiple rated speeds to further reduce noise and improve fuel economy; higher level of peak torque; transient response time equal to or better than Tier 3/Stage III A; low-speed torque equal to or better than Tier 3/Stage III A
Compact size
- Lower installed cost; mounting points are the same as previous engine models
John Deere electronic engine controls
- Faster engine control unit (ECU) manages both the engine and the exhaust filter; full authority electronic controls; four times the memory, twice the RAM and double the processing speed; the input/output capability has increased 40%
Additional features
- Gear-driven auxiliary drives
- 500-hour oil change
- Self-adjusting poly-vee fan drive
- Single-piece low-friction piston
- Directed top-liner cooling
- Low-pressure fuel system with electrical transfer pump and "auto-prime" feature
- Optional rear PTO
Specifications
Expand All
Emissions Certifications
- CARB
- EPA Interim Tier 4
- EU Stage III B
General Engine Data
- Model
- 6090HFC95
- Number of cylinders
- 6
- Displacement-- L (cu in)
- 9.0 (549)
- Bore and Stroke-- mm (in)
- 118.4 x 136 (4.66 x 5.35)
- Compression Ratio
- 16.0 : 1
- Engine Type
- In-line, 4-cycle
- Aspiration
- Turbocharged and air-to-air aftercooled
- Length - mm (in)
- 1266.6 (49.9)
- Width-- mm (in)
- 841.7 (33.1)
- Height-- mm (in)
- 1344.0 (52.9)
- Weight, dry - kg (lb)
- 1096.8 (2418)
Doc/Dpf Dimensions
- Size 7 - Diameter - mm (in)
- 379 (14.9)
- Size 7 - Length - mm (in)
- 837.8 (33.0)
- Size 7 - Weight - kg (lb)
- 65.1 (143.5)
Performance Data Range
- Intermittent - Rated power/Rated speed
- 261-317 kW (350-425 hp) @2000-2200 rpm
- Intermittent - Peak power
- 287-317 kW (385-425 hp) @1800-2200 rpm
- Intermittent - Power bulge
- 0-10 % @1800-2000 rpm
- Intermittent - Peak torque
- 1683-1685 N·m (1241-1243 ft-lb) @1600 rpm
- Intermittent - Torque rise
- 22-35%
- Heavy Duty - Rated power/Rated speed
- 260-261 kW (350 hp) @2200 rpm
- Heavy Duty - Peak power
- 268-287 kW (359-385 hp) @1900-2000 rpm
- Heavy Duty - Power bulge
- 2-10 % @2000 rpm
- Heavy Duty - Peak torque
- 1563 N·m (1153 ft-lb) @1600 rpm
- Heavy Duty - Torque rise
- 38%
- Continuous - Rated power/Rated speed
- 242 kW (325 hp) @2000-2200 rpm
- Continuous - Peak power
- 266-267 kW (357-358 hp) @1700-2000 rpm
- Continuous - Power bulge
- 10 % @1800-2000 rpm
- Continuous - Peak torque
- 1444-1590 N·m (1065-1173 ft-lb) @1600 rpm
- Continuous - Torque rise
- 38%
