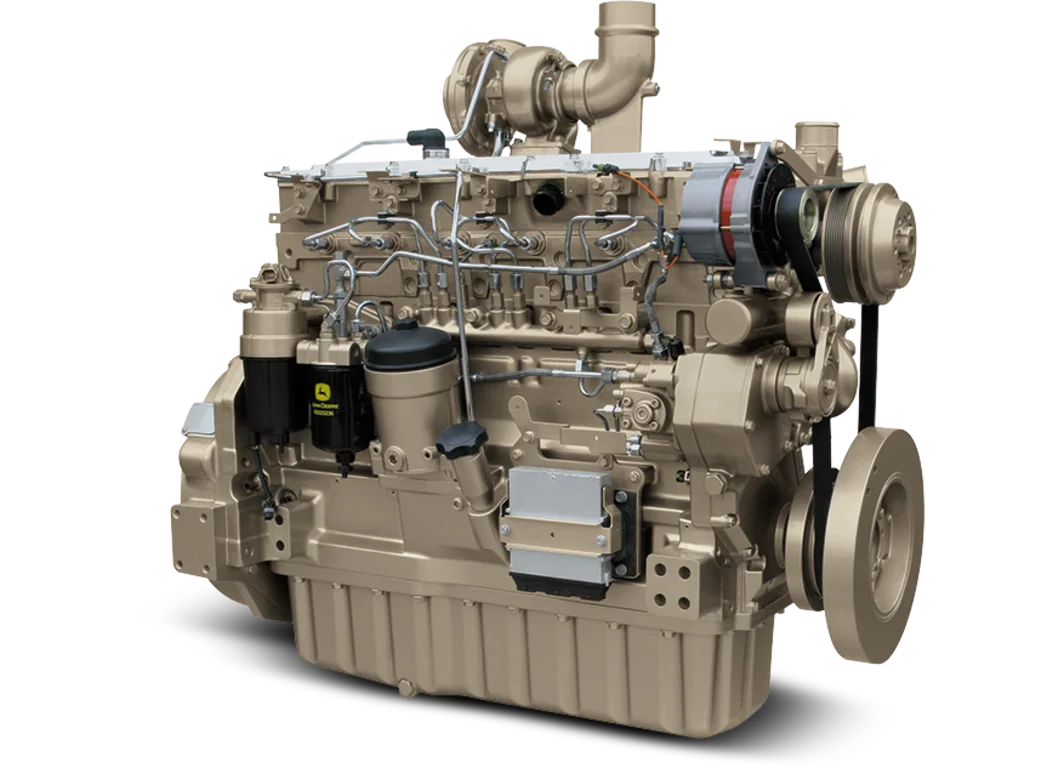

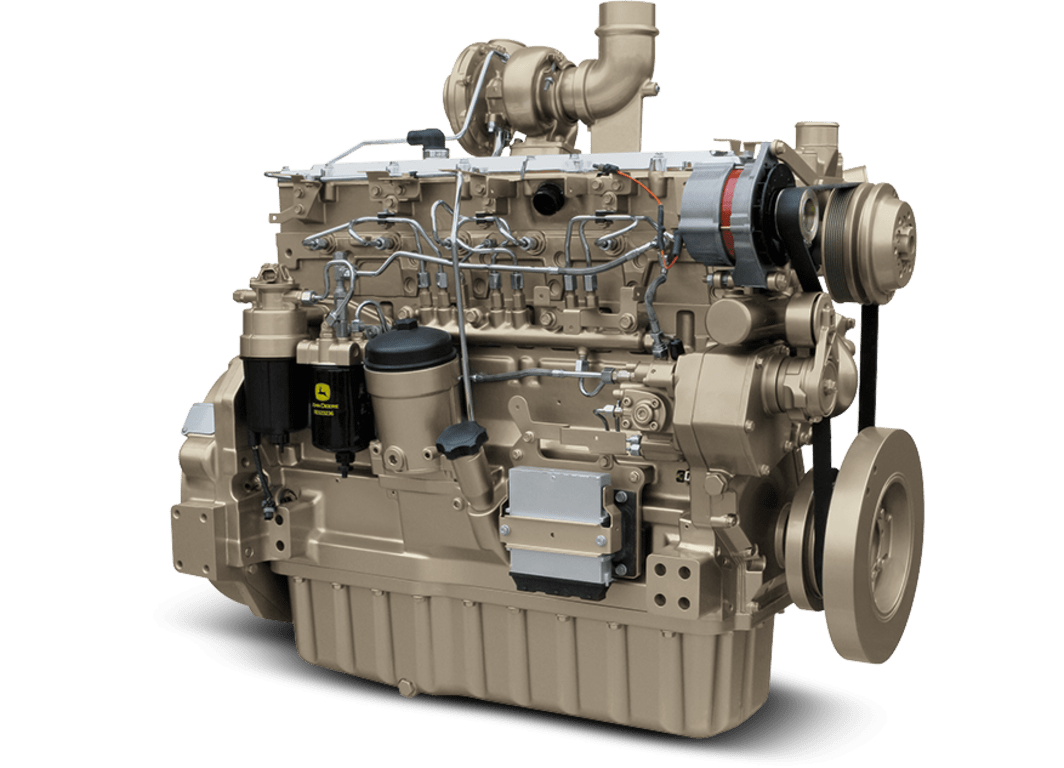

6090HF475
9.0L Generator Drive Engine
Nothing Runs Like a Deere™
- PowerTech™ E
- Standby: 253-304 kW (339-408 hp) @ 1500 rpm
- Prime: 230-274 kW (308-367 hp) @ 1500 rpm
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
See how the 253-304 kW (339-407 hp) EU Stage II John Deere 6090HF475 generator drive diesel engine advances the standard of excellence with an electronically controlled or mechanical fuel system in OEM gen-set applications.
Expand All
Fixed geometry turbocharger
- Fixed geometry turbochargers are precisely matched to the power level and application
4-valve cylinder head
- Provides excellent airflow resulting in better transient response
- U-flow design
Air-to-air aftercooled
- Most efficient method of cooling intake air to help reduce engine emissions while improving transient response time
- Enables an engine to meet emissions with better fuel economy and the lowest installed costs
High pressure common rail fuel system
- Higher injection pressures, up to 1600 bar (23,500 PSI) variable injection pressure, variable timing control, multiple injections and controls the duration of injection
John Deere electronic engine controls
- Monitors critical engine functions providing warning and/or shutdown to prevent costly engine repairs; eliminates need for add-on governing components; all lowering total installed costs. Snapshot diagnostic data that can be retrieved using commonly available diagnostic service tools
- New common wiring interface connector for available OEM instrumentation packages; new solid conduit and "T" connectors to reduce wiring stress, greater durability and improved appearance
- Factory installed engine mounted ECU or remote mounted ECU, wiring harness and associated components
- Industry standard SAE J1939 interface which communicates with other systems, eliminating redundant sensors and reducing installed cost
Additional features
- Single-piece low friction piston; directed top-liner cooling; gear-driven auxiliary drive; optional 500-hour oil change; self-adjusting poly-vee fan drive; engine mounted ECU
Specifications
Expand All
General Engine Data
- Model
- 6090HF475
- Number of cylinders
- 6
- Displacement-- L (cu in)
- 9.0 (549)
- Bore and Stroke-- mm (in)
- 118.4 x 136 (4.66 x 5.35)
- Compression Ratio
- 16.0:1
- Engine Type
- In-line, 4-Cycle
- Aspiration
- Turbocharged and air-to-air aftercooled
- Length - mm (in)
- 1211 (47.7)
- Width-- mm (in)
- 633 (24.9)
- Height-- mm (in)
- 1160 (45.7)
- Weight, dry - kg (lb)
- 901 (1986)
Performance Data Range
- Hz (rpm)
- 50 ( 1500 )
- Generator Efficiency %
- 90-93
- Power Factor
- 0.8
- Engine power - Prime kW
- 228-274
- Engine power - Prime hp
- 306-367
- Engine power - Standby kW
- 253-304
- Engine power - Standby hp
- 339-408
- Rated Fan Power - kW
- 12.65-15.2
- Rated Fan Power - hp
- 17.0-20.4
- Calculated generator set output - Prime kWe
- 195-242
- Calculated generator set output - Prime kVA
- 243-302
- Calculated generator set output - Standby kWe
- 216-269
- Calculated generator set output - Standby kVA
- 270-336
Emissions Certifications
- EU Stage II
