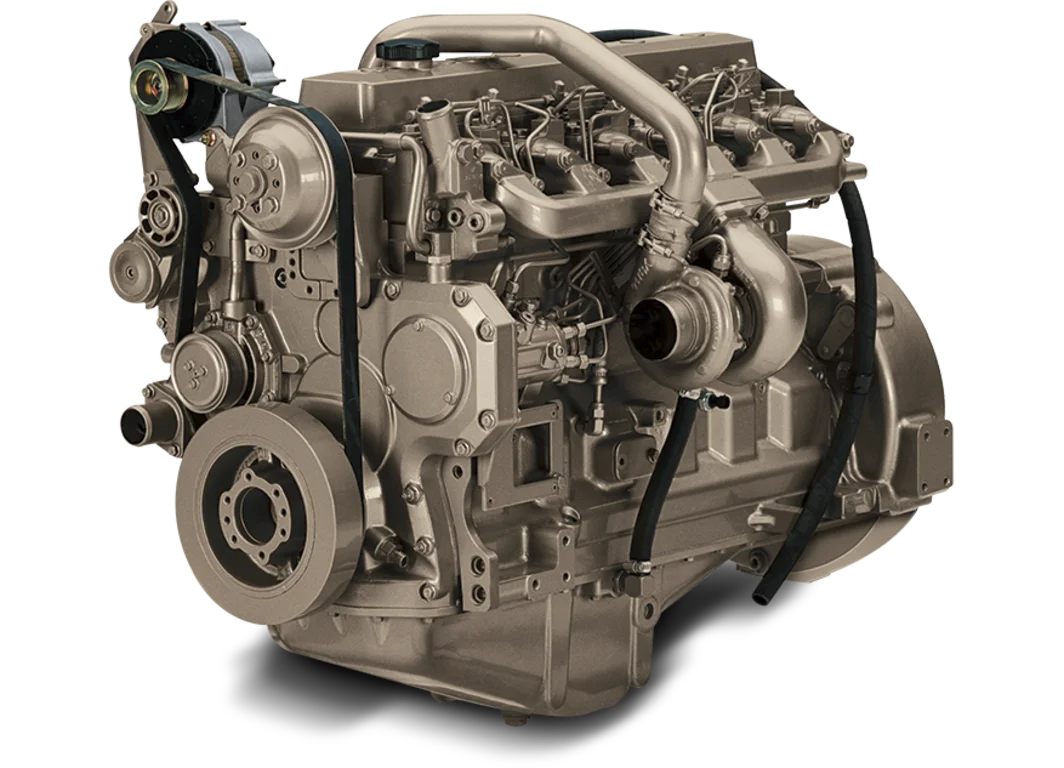

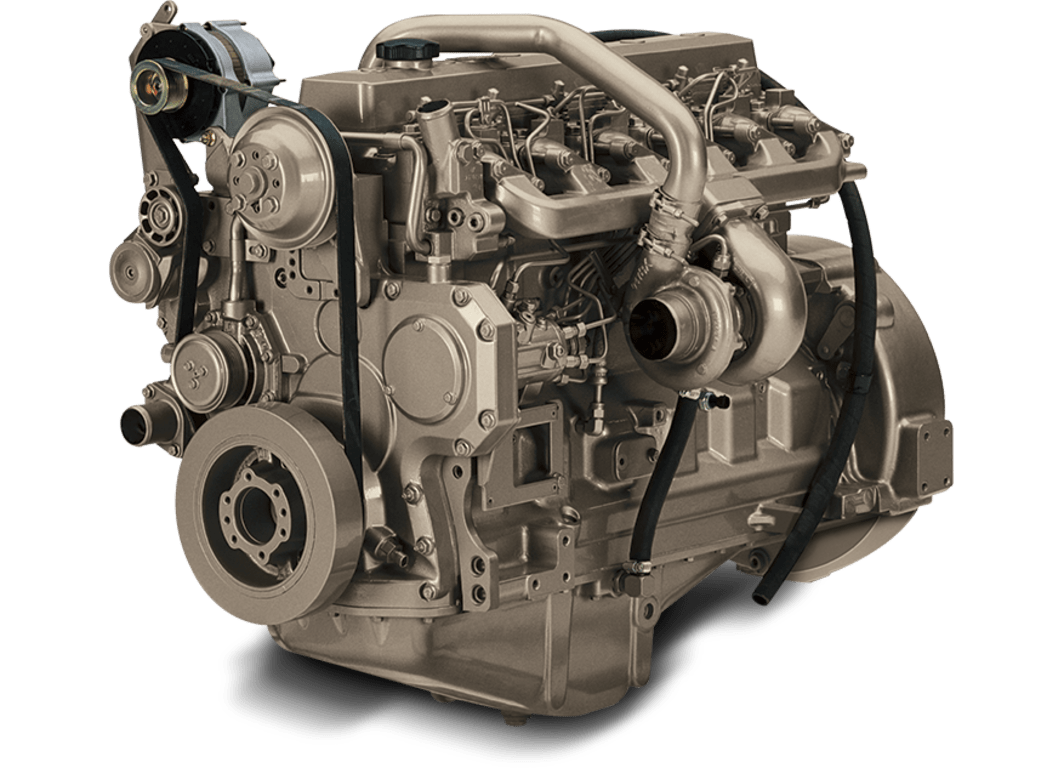

6068TF250
6.8L Generator Drive Engine
Nothing Runs Like a Deere™
- PowerTech™ M
- Standby: 104-142 kW (139-190 hp)
@ 1500-1800 rpm - Prime: 94-128 kW (126-172 hp)
@ 1500-1800 rpm - Dual frequency available
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
See how the 104-142 kW (139-190 hp) John Deere 6068TF250 generator drive diesel engine advances the standard of excellence with an electronically controlled or mechanical fuel system in OEM gen-set applications.
Expand All
Dynamically balanced crankshaft
- Induction-hardened journals for long hours of reliable service
- Robust design to drive machinery from the front of the crankshaft
- Supported by five main bearings
Forged-steel connecting rods
- 45-degree connecting rod/cap-joint design allows the use of large connecting rod bearings for increased durability
Replaceable wet-type cylinder liners
- Provide excellent heat dissipation
- Precision machined for long life
- Rebuild to original specifications
Easy to apply, easy to install
- Front and rear engine mounting pads on the side of the block facilitates installation
- Auxiliary drive rated to 50 HP (37 kW) intermittent for powering ancillary equipment
- Either-side service for filters and service points facilitates packaging
- All connection points in common locations make it easy to install or package
Compact size
- High mount or low mount turbocharger position to meet packaging requirements
World-class performance
- Excellent fuel economy and low oil consumption
Fuel system controls
- Proven and Reliable Mechanical Governor
- 3-5% Droop Governing
- 12V or 24V Electric Shutoff
Specifications
Expand All
Emissions Certifications
- CARB
- EPA Tier 1
General Engine Data
- Model
- 6068TF250
- Number of cylinders
- 6
- Displacement-- L (cu in)
- 6.8 (415)
- Bore and Stroke-- mm (in)
- 106 x 127 (4.17 x 5.00)
- Compression Ratio
- 17.0:1
- Engine Type
- In-line, 4-Cycle
- Aspiration
- Turbocharged
- Length - mm (in)
- 1117 (44.0)
- Width-- mm (in)
- 598 (23.5)
- Height-- mm (in)
- 984 (38.7)
- Weight, dry - kg (lb)
- 533 (1175)
Performance Data Range
- Hz (rpm)
- 60 ( 1800 )
- Generator Efficiency %
- 88-92
- Power Factor
- 0.8
- Engine power - Prime kW
- 112-128
- Engine power - Prime hp
- 150-172
- Engine power - Standby kW
- 124-142
- Engine power - Standby hp
- 166-190
- Rated Fan Power - kW
- 6.3-7.1
- Rated Fan Power - hp
- 8.4-9.5
- Calculated generator set output - Prime kWe
- 93-111
- Calculated generator set output - Prime kVA
- 116-139
- Calculated generator set output - Standby kWe
- 103-124
- Calculated generator set output - Standby kVA
- 129-155
