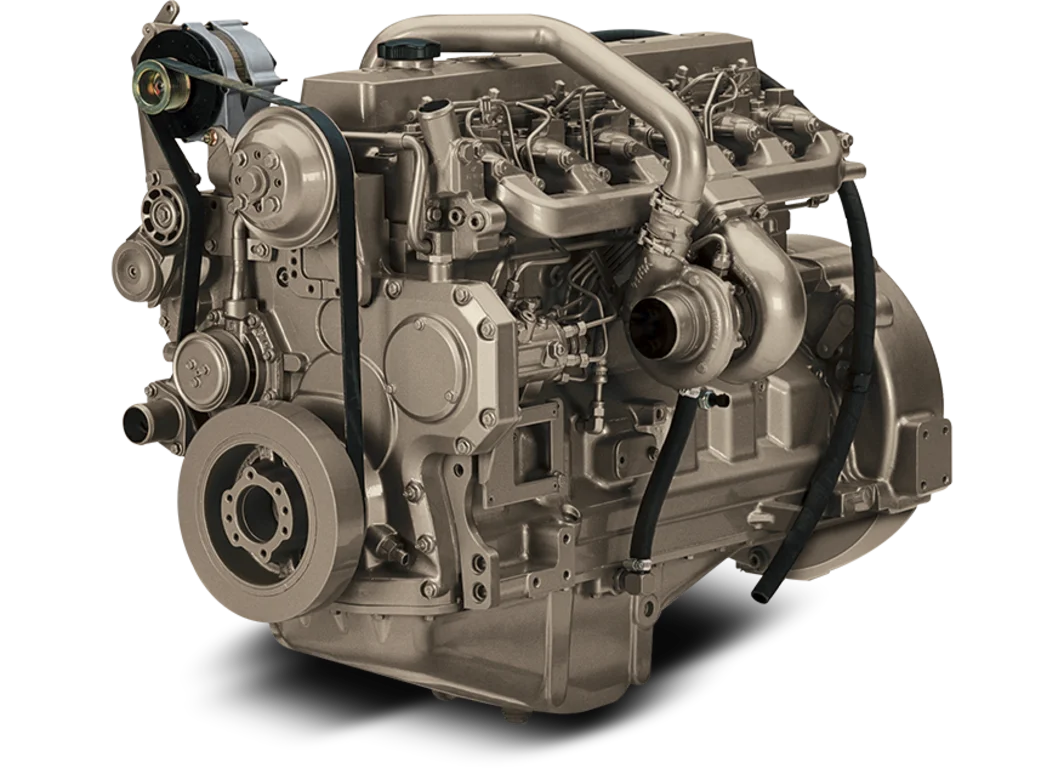

6068TF250
6.8L Industrial Diesel Engine
Nothing Runs Like a Deere™
- PowerTech ™
- 106 – 149 kW (142 - 200 hp)
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
Get details on 142 to 200 hp, 106 to 149 kW John Deere 6068TF250 industrial diesel engines for OEM equipment, including features, specs, and integrated support.
Expand All
Dynamically balanced crankshaft
- Crankshafts are machined from a heat-treated, high carbon steel forging
Forged-steel connecting rods
- Unique 45-degree design permits the use of larger crankshaft connecting-rod bearings for increased durability
Self-adjusting poly-vee fan drive
- Self-adjusting, eight-groove, poly-vee fan drive provides multiple fan drive ratios and fan heights that can be matched to specific application requirements
- Poly-vee design provides more than twice the drive capacity of comparable vee-belts
Replaceable wet-type cylinder liners
- Provides excellent heat dissipation
- Precision machined for long life
Either-side service
- Engine installation and maintenance simplified and convenient by providing dipstick and oil filter options on both sides of the engine
Standard gear auxiliary drive
- Standard gear auxiliary drive produces up to 50 hp (37 kW) for gear-driven accessories
Mounting points
- Standard front and side mounting points provide easy installation and application flexibility
Specifications
Expand All
Emissions Certifications
General Engine Data
- Model
- 6068TF250
- Number of cylinders
- 6
- Displacement-- L (cu in)
- 6.8 (415)
- Bore and Stroke-- mm (in)
- 106 x 127 (4.17 x 5.00)
- Compression Ratio
- 17.0:1
- Engine Type
- In-line, 4-Cycle
- Aspiration
- Turbocharged
- Length - mm (in)
- 1116 (43.9)
- Width-- mm (in)
- 623 (24.5)
- Height-- mm (in)
- 1012 (39.8)
- Weight, dry - kg (lb)
- 569 (1254)
Performance Data Range
- Intermittent - Rated power/Rated speed
- 138-149 kW (185-200 hp) @2400 rpm
- Intermittent - Peak power
- 138-155 kW (185-208 hp) @2200-2400 rpm
- Intermittent - Peak torque
- 682-793 N·m (503-585 ft-lb) @1400-1500 rpm
- Intermittent - Torque rise
- NA
- Heavy Duty - Rated power/Rated speed
- 106-128 kW (142-172 hp) @2200-2300 rpm
- Heavy Duty - Peak power
- 112-128 kW (150-172 hp) @2000-2300 rpm
- Heavy Duty - Peak torque
- 614-668 N·m (453-493 ft-lb) @1400 rpm
- Heavy Duty - Torque rise
- NA
