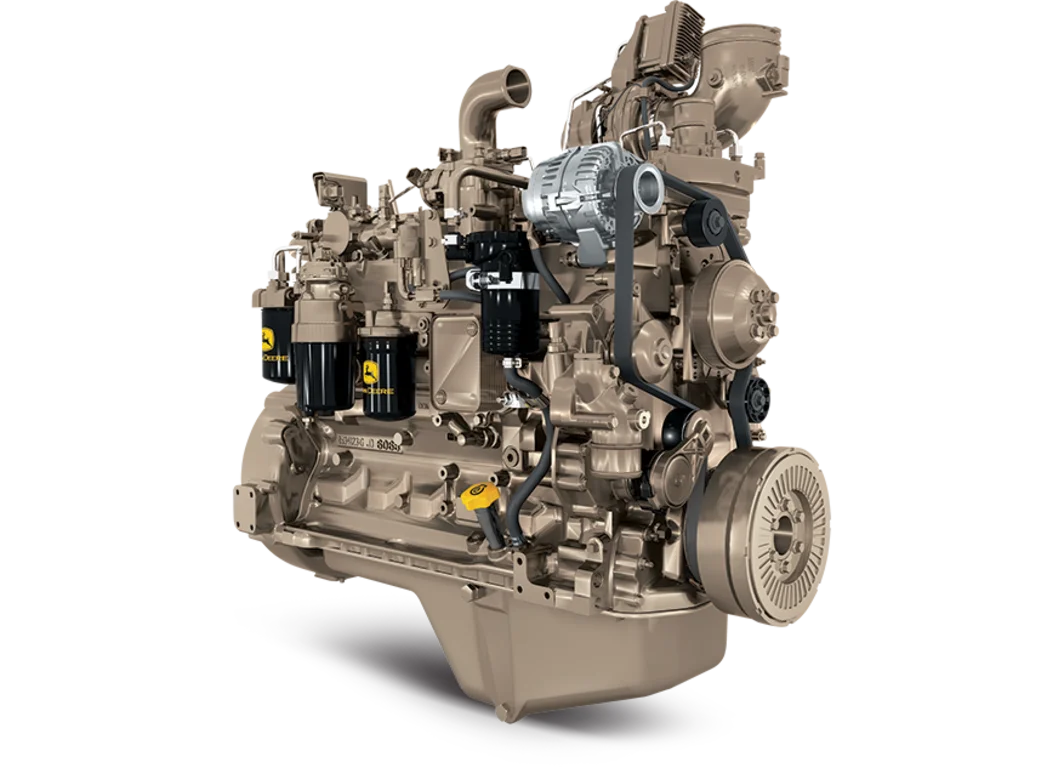

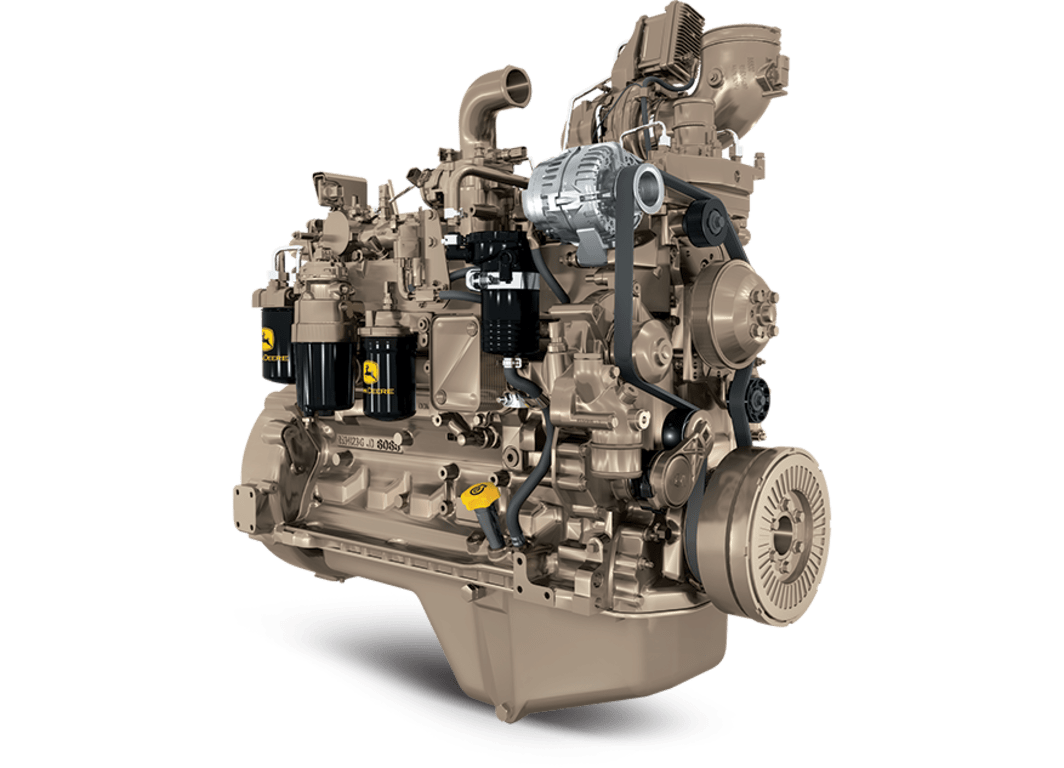

6068HFG94
6.8L Generator Drive Engine
Nothing Runs Like a Deere™
- PowerTech™ PVX
- Standby: 150-180 kW (201-241 hp) @ 1800 rpm
- Prime: 136-164 kW (182-220 hp) @ 1800 rpm
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
Meet emissions requirements without sacrificing performance with the 150-180 kW (201- 241 hp) John Deere 6068HFG94 Interim Tier 4 generator drive diesel engine with mechanical fuel systems.
Expand All
High-pressure common-rail (HPCR) and engine control unit (ECU)
- The HPCR fuel system provides variable common–rail pressure and higher injection pressures up to 1,975 bar (29,000 psi). It also controls fuel injection timing and provides precise control for the start, duration, and end of injection.
4-valve cylinder head
- The 4–valve cylinder head provides excellent airflow by utilizing a cross–flow design.
Cooled exhaust gas recirculation (EGR)
- EGR cools and mixes measured amounts of cooled exhaust gas with incoming fresh air to lower peak combustion temperatures, thereby reducing NOx
Fixed geometry turbocharger
- Varies exhaust pressure based on load and speed to ensure proper EGR flow. The combination of the cooled EGR and VGT provide low–speed torque, quicker transient response, higher–peak torque, and world–class fuel economy.
Exhaust filters
- These engines utilize an exhaust filter that contains a diesel oxidation catalyst (DOC) and a diesel particulate filter (DPF). The DOC reacts with exhaust gases to reduce carbon monoxide, hydrocarbons, and some particulate matter (PM). The downstream DPF traps and holds the remaining PM. Trapped particles are oxidized within the DPF through a cleaning process called passive regeneration. Passive regeneration occurs during normal operating conditions when heat from the exhaust stream and catalysts the DOC within the exhaust filter trigger the oxidation of the trapped PM. If passive regeneration cannot be achieved due to temperature, load, or speed, then PM is removed using active regeneration — an automatic cleaning process controlled by the exhaust temperature management system.
Air-to-air aftercooled
- This is the most efficient method of cooling intake air to help reduce engine emissions. It enables an engine to meet emissions regulations with better fuel economy and the lowest installed costs.
John Deere electronic engine controls
- Faster engine control unit (ECU) manages both the engine and the exhaust filter
- Full authority electronic controls
- Four times the memory, twice the RAM, and double the processing speed
- Input/output capability has increased 40%.
Additional features
- Compact size: lower installed cost
- Mounting points are the same as previous engine models
- Glow plugs
- 500–hour oil change
- Self–adjusting poly–vee fan drive
- Variable–speed fan drive increases fuel economy and decreases noise levels
- R.H. and L.H. engine-mounted final fuel filters
- Aluminum piston with integrated oil cooled gallery
- Low–pressure fuel system with electrical transfer pump and "auto–prime" feature.
Specifications
Expand All
Emissions Certifications
- CARB
- EPA Interim Tier 4
General Engine Data
- Model
- 6068HFG94
- Number of cylinders
- 6
- Displacement-- L (cu in)
- 6.8 (415)
- Bore and Stroke-- mm (in)
- 106 x 127 (4.17 x 5.00)
- Compression Ratio
- 17.2 : 1
- Engine Type
- In-line, 4-cycle
- Aspiration
- Turbocharged and air-to-air aftercooled
- Length - mm (in)
- 1161 (45.7)
- Width-- mm (in)
- 716 (28.2)
- Height-- mm (in)
- 1147 (45.2)
- Weight, dry - kg (lb)
- 767 (1691)
Doc/Dpf Dimensions
- Size 5 - Diameter - mm (in)
- 320.5 (12.6)
- Size 5 - Length - mm (in)
- 891.9 (35.1)
- Size 5 - Weight - kg (lb)
- 30 (66.1)
Performance Data Range
- Hz (rpm)
- 60 ( 1800 )
- Generator Efficiency %
- 89-93
- Power Factor
- 0.8
- Engine power - Prime kW
- 137-164
- Engine power - Prime hp
- 183-220
- Engine power - Standby kW
- 150-180
- Engine power - Standby hp
- 201-241
- Rated Fan Power - kW
- 9-10.8
- Rated Fan Power - hp
- 12.1-14.5
- Calculated generator set output - Prime kWe
- 114-143
- Calculated generator set output - Prime kVA
- 143-179
- Calculated generator set output - Standby kWe
- 125-157
- Calculated generator set output - Standby kVA
- 157-197
