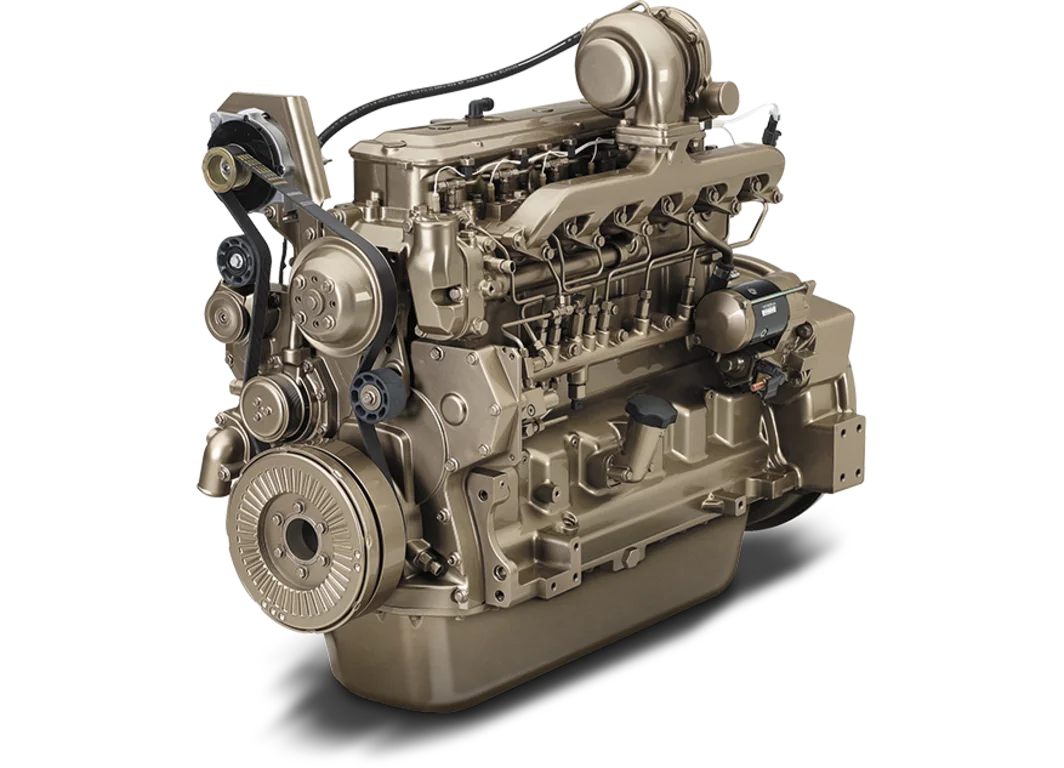

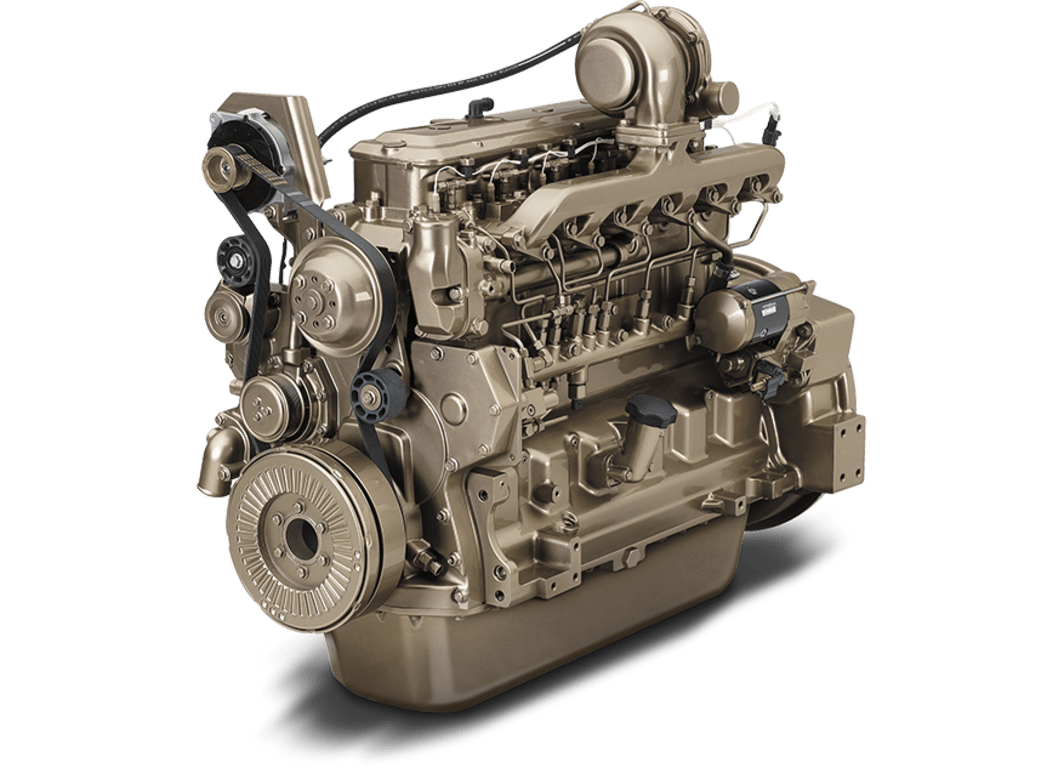

6068HF475
6.8L Generator Drive Engine
Nothing Runs Like a Deere™
- PowerTech™ E
- Standby: 207-210 kW (277-281 hp) @ 1500-1800 rpm
- Prime: 188-191 kW (252-256 hp) @ 1500-1800 rpm
- Dual frequency available
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
See how the 183-210 kW (245-281 hp) John Deere 6068HF475 generator drive diesel engine advances the standard of excellence with an electronically controlled or mechanical fuel system in OEM gen-set applications.
Expand All
Dynamically balanced crankshaft
- Induction-hardened journals for long hours of reliable service
- Robust design to drive machinery from the front of the crankshaft
- Supported by seven main bearings
Forged-steel connecting rods
- 45-degree connecting rod/cap-joint design allows the use of large connecting rod bearings for increased durability
Replaceable wet-type cylinder liners
- Provide excellent heat dissipation
- Precision machined for long life
- Rebuild to original specifications
Easy to apply, easy to install
- Front and rear engine mounting pads on the side of the block facilitates installations
- Auxiliary drive rated to 50 hp (37 kW) intermittent for powering ancillary equipment
- Either-side service for filters and service points facilitates packaging
- All connection points in common locations make it easy to install or package
Compact size
- High mount or low mount turbocharger position to meet packaging requirements
World-class performance
- Excellent fuel economy and low oil consumption
Fuel system controls
- Proven and Reliable Mechanical Governor
- 3-5% Droop Governing
- 12V or 24V Electric Shutoff
Specifications
Expand All
General Engine Data
- Model
- 6068HF475
- Number of cylinders
- 6
- Displacement-- L (cu in)
- 6.8 (415)
- Bore and Stroke-- mm (in)
- 106 x 127 (4.17 x 5.00)
- Compression Ratio
- 17.0:1
- Engine Type
- In-line, 4-Cycle
- Aspiration
- Turbocharged and air-to-air aftercooled
- Length - mm (in)
- 1161 (45.7)
- Width-- mm (in)
- 627 (24.7)
- Height-- mm (in)
- 1044 (41.1)
- Weight, dry - kg (lb)
- 587 (1294)
Performance Data Range
- Hz (rpm)
- 60 ( 1800 )
50 ( 1500 )
- Generator Efficiency %
- 89-93
88-92
- Power Factor
- 0.8
0.8
- Engine power - Prime kW
- 191
188
- Engine power - Prime hp
- 256
252
- Engine power - Standby kW
- 210
207
- Engine power - Standby hp
- 282
278
- Rated Fan Power - kW
- 10.5
10.4
- Rated Fan Power - hp
- 14.1
13.9
- Calculated generator set output - Prime kWe
- 161-168
156-163
- Calculated generator set output - Prime kVA
- 201-210
195-204
- Calculated generator set output - Standby kWe
- 178-186
173-181
- Calculated generator set output - Standby kVA
- 223-233
216-226
Emissions Certifications
- Non-Emissions Certified
