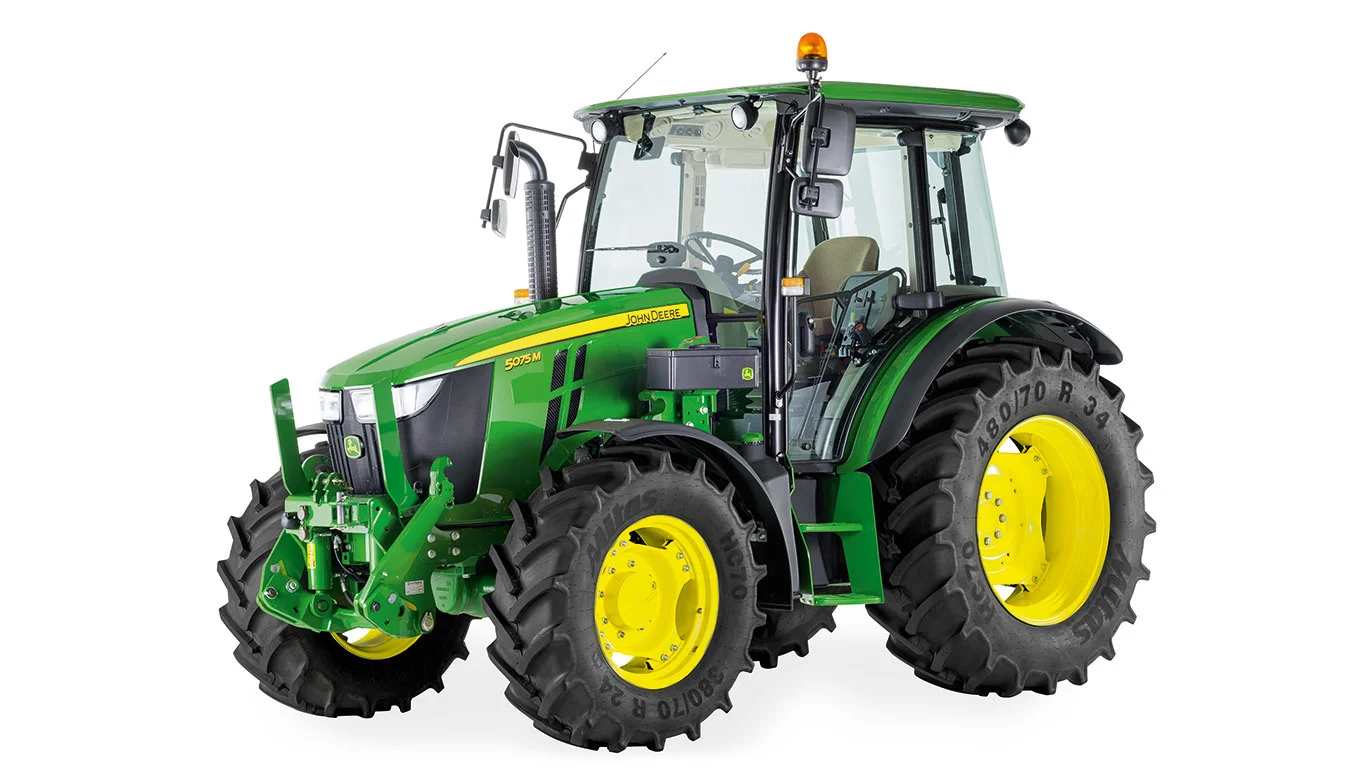

5M Tractor Premium Cab with panorama roof

Overview

Experience ultimate operator experience in comfort and convenience by upgrading to the Premium Cab on 5M tractors. Upgrading to the Premium Cab unlocks a fixed panorama roof ideal for loader work.

Benefits

• Improve upward visibility by 80 percent vs standard cab for easier bale stacking, pallet stacking, and dumping loads into walled trailers with the panorama roof
• Additional storage space with the rear floor mat behind the seat
• Excellent visibility to rear operations with the rearview mirror
• Shield the operator from the sun with an easy-to-use front sunshade

Bluetooth is a trademark of Bluetooth SIG, Inc.

Instrument cluster

Power take-off (PTO) target bars

Overview

Operators can view information in a crisp, vibrant, and useful array on the tractor instrument cluster.

Benefits

• Clear and bright indicators, warning lights, and gauges
• Provides operators with crucial onboard diagnostics through the roll-mode function
• Visibility of engine hours, ground speed, Hi-Lo indicator, forward, neutral, and reverse all at the same time
• Light-out indicator for trailer light, turn light, and hazard light bulbs
• Clearly presented PTO target bars to indicate the correct PTO speeds when operating the PTO

Additional details

There are daytime and nighttime modes which are based on the position of the light switch. The mode adjusts the backlight levels of the display for optimum visibility.

Overview

Ample speeds and ease of operation for demanding applications with the 16F/16R PowrReverser, providing 16 forward speeds and 16 reverse speeds. This transmission comes standard with a dual speed 540/540 Economy power take-off (PTO), and it is ideal for applications requiring frequent directional changes, such as loader work.

Benefits

• Effortlessly switch directions with a small finger motion using the electrohydraulic fingertip directional lever
  • Frees the right hand to operate other tractor controls, such as the loader, rear implements, or throttle, as the directional lever allows the operator to steer and shift direction with the left hand
• Ideal for rear blading and any applications that require frequent directional changes in tight spaces
• Clutch-less hydraulic shifting between forward and reverse
• Lower engine vibration, reduced noise, less wear and tear on the engine, reduced fuel consumption, and increased operator comfort from the standard economy PTO (E-PTO)

Additional details

16F/16R transmission includes:

• Hydraulic wet clutches (forward and reverse)
  • Maximise durability and outlast the life of any dry clutch
  • When tractors are run by multiple operators with a variety of experience levels, a wet clutch is the best way to maintain transmission integrity and performance while decreasing clutch replacement costs
• Platform-mounted shift levers (four ranges, four gears)
  • Two platform-mounted levers offer easy and comfortable shifting for a pleasant operator experience
  • The gear-shift lever is easy to reach, and the less-used range lever is shorter. Unique knobs make it easy to distinguish between the two
• Left-hand reverser
  • The control is located on the left side of the steering column and selects forward, reverse, and neutral positions
• Constant-mesh helical-cut gears
  • Provide quieter operation and excellent reliability while the pressure-lubricated top shaft adds to the transmission durability
  • Fully enclosed, rigid shift linkages for short throw and crisp shifts enable all operators to clearly know in what range and gear they are operating
• Pressure-lubricated top shaft
• Positive park pawl: provides positive park and eliminates the need for a hand brake
• Neutral start switch

Gear and range shift levers (cab)

Gear shift lever open operator’s station (OOS)

Range shift lever (OOS)

The forward lever selects one of four speeds, all synchronised shifts for on-the-go shifting with the use of the clutch. The rear lever selects ranges A, B, C, or D. All ranges are fully synchronised. When upshifting, operators can move between ranges without stopping the tractor providing convenience for on-the-go shifting from field to transport.

Left-hand reverser lever

NOTE: A neutral start switch requires the directional lever be in the neutral position to start the engine.

Integrated declutch button on gear shifter

NOTE: The PowrReverser transmission is not available for the 5130M tractors.

The PowrReverser has a built-in engagement override valve for additional safety. This valve requires the clutch pedal to be depressed one time after each engine start before the transmission will begin to operate normally, giving the operator another opportunity to put all focus on the tractor.

See the PTO functional area for more information on E-PTO.

Creeper lever on 5MH only

The creeper gears are accessible by engaging the creeper lever into rabbit or turtle position. This provides 2 additional slow working ranges perfect for bedded crops.

See the PTO functional area for more information on E-PTO.

Hi-Lo selector on gear lever

Overview

For operators requiring more field speeds to achieve the most precise operating ranges, as well as for quickly moving from task to task with transport speeds of up to 40.23 km/h (25 mph), the PowrReverser™ Hi-Lo 32F/16R transmission is the ideal choice. This transmission provides 32F/16R speeds for the ultimate in speed selection.

Benefits

• Effortlessly switch directions with a small finger motion using the electrohydraulic fingertip directional lever
  • Frees the right hand to operate other tractor controls, such as the loader, rear implements, or throttle, as the directional lever allows the operator to steer and shift direction with the left hand
  • The control is located on the left side of the instrument console and selects forward, reverse, and neutral positions
• Clutch-less hydraulic shifting between forward and reverse
• Convenient push-button controls actuate the electrohydraulic hi-lo selector providing an extra 20% increase/decrease in speed for each forward gear
• Lower engine vibration, reduced noise, less wear and tear on the engine, reduced fuel consumption, and increased operator comfort from the standard economy PTO (E-PTO)

Additional details

32F/16R transmission includes:

• Hydraulic wet clutches (forward and reverse)
  • Maximise durability and outlast the life of any dry clutch
  • When tractors are run by multiple operators with a variety of experience levels, a wet clutch is the best way to maintain transmission integrity and performance while decreasing clutch replacement costs
• Platform-mounted shift levers (four gears, four ranges)
  • Two platform-mounted levers offer easy and comfortable shifting for a pleasant operator experience
  • The gear-shift lever is easy to reach, and the less-used range lever is shorter. Unique knobs make it easy to distinguish between the two
• Left-hand reverser
• Constant-mesh helical-cut gears
  • Provide quieter operation and excellent reliability while the pressure-lubricated top shaft adds to the transmission durability
  • Fully enclosed, rigid shift linkages for short throw and crisp shifts enable all operators to clearly know in what range and gear they are operating
• Pressure-lubricated top shaft
• Positive park pawl: provides positive park and eliminates the need for a hand brake
• Neutral start switch

The gear lever selects one of four speeds, all synchronised shifts for on-the-go shifting with the use of the clutch. This same lever is where the hi-lo control buttons are located which provide a single shift up/down in speed within each forward range. The rear lever selects ranges A, B, C, or D. All ranges are fully synchronised which means, when shifting, operators can move between any range A-D without stopping the tractor.

The hi-lo feature benefits operators who frequently transport their tractors from field to field or find themselves in bog-down situations during rear power take-off (PTO) work such as baling in variable sized windrows. Customers can push the rabbit button (high) without having to depress the clutch to get a 20 percent increase in speed. They can also push the turtle button (low) to get a 20 percent decrease in speed, similar to downshifting or engine braking without having to grab another gear.

Shuttle control knob

The 32F/16R transmission includes the infinitely variable shuttle control feature allowing fine-tuning of the speed of directional changes to the operator's preference or application demands. This dial adjusts the aggressiveness of the tractor’s directional change. Some prefer a quicker more precise change, whereas other operators are more comfortable with a slow roll out before moving in the opposite direction. This feature can be significant for precision work with pallet forks or changing to bale stacking applications.

The PowrReverser™ has a built-in engagement override valve for additional safety. This valve requires the clutch pedal to be depressed one time after each engine start before the transmission will begin to operate normally, giving the operator another opportunity to put all focus on the tractor.

NOTE: A neutral start switch requires the directional lever be in the neutral position to start the engine. NOTE: See PTO detailed feature for more information on E-PTO.

5M Tractor 3-point hitch

Overview

Heavy-duty 3-point hitch provides lift capacity and adjustability for implement versatility. Precisely raise and lower heavy implements such as planters, sprayers, and field cultivators, using the rockshaft control lever. The operator can also adjust the speed at which an implement is lowered by adjusting the rockshaft rate of drop.

Benefits

• Convenience hooking up implements with telescoping draft links, adjustable sway bars, and interchangeable hitch balls with the choice of either mechanical or electrohydraulic controls.
• Consistency when lowering hitch with depth stop on both mechanical and electrohydraulic hitch controls - each time the position control lever is pushed forward, it stops where the depth stop has been positioned. Useful when preparing a seedbed.
• Compatible with implements needed to perform multiple jobs. Increased lift capacity is available with optional larger cylinders. See Specifications for lift capacity by model.
• Convenience when leveling implements with right lift link being able to adjust without tools - lift links can be adjusted for lateral float to allow implements with gauge wheels or skids to follow the ground contour

Additional details

Mechanical or electrohydraulic hitch control operation

Raise and lower rear implements with precision with either the mechanical or electrohydraulic (EH) hitch control. The operator can also adjust the speed at which an implement is lowered by adjusting the rockshaft rate of drop.


The mechanical hitch control is paired with the tractors equipped with a PowrReverser™ transmission while the EH hitch control is paired with units equipped with a PowrQuad™ PLUS or Powr8™ transmission. Both control types enable the operator to adjust the speed at which an implement can be lowered by adjusting the rockshaft rate of drop. In addition to this feature, the EH hitch control adds repeatable movements by enabling the operator to set both an upper and lower limit.


The adjustable depth stop (found on both control types) provides consistency when lowering the hitch. Each time the position control lever is pushed forward, it stops where the depth stop has been positioned. This feature is a value to anyone who desires a consistent, level ground, like when preparing a seedbed.

The center link can be set in one of three positions to accurately set the implement position and draft sensing. The right lift link is adjustable without tools for added convenience when leveling implements.

Optional larger cylinders:

Sway bars

5M Tractor sway bars

Adjustable sway bars and telescoping draft links can be easily adjusted to adapt to a wide variety of implements. The right lift link also adjusts without tools for added convenience when leveling implements.

Rear fender hitch controls

5M rear fender hitch controls

Operators do not need to carry a tool to adjust the rear hitch. Operators can also raise and lower the 3-point hitch from outside of the tractor with the conveniently located rear fender hitch controls.

The engine powering the 5075M is EPA certified Tier Level 4. This is achieved through a combination of a diesel oxidation catalyst (DOC) and a diesel particulate filter (DPF).  John Deere uses the most efficient solution for the tractor package to meet emissions requirements at each horsepower level. The system always defaults to passive regeneration mode, and will only go into an active regeneration cycle when necessary without impacting engine performance. This active cycle takes place on average about every 40 hours of normal tractor operation. The regeneration process cleans out the DPF element.

As per 97/68/EC ISO at rated speed.

Other key engine features and related benefits:

• Heavy-duty cylinder block – strength and rigidity
• Balanced crankshaft – reduces engine vibration
• Optimised cylinder heads – improved airflow, better fuel economy
• Low friction, high-ring pistons – cast-aluminum design
• Plasma-coated top rings – reduced drag on cylinder wall
• Wet-type cylinder liners – dissipate heat to prevent cylinder wear
• Full-pressure lubrication system – eliminates excessive heat
• Electric fuel shutoff – does not allow bypass starting

Power through tough spots

Benefits of torque reserve:

• Improved fuel efficiency
• Reduced noise levels
• Less downshifting
• Increased productivity
• Efficient throttle response

Tractor weight package

Overview

Keep implements in the ground with more down force that comes from a heavy tractor. The compactness of the 5M Series regarding wheelbase, weight, and total height tractor makes this tractor suited for a variety of different applications and is the perfect choice for all types of farms.

Benefits

• Improved traction and performance in the field
• Ability to power through tough jobs with heavy and durable cast steel
• Better stability when performing loader work
• Transport full bucket loads faster and lift bales higher with a stronger and more stable base

Additional details

See specifications for machine weight.

Engine description

John Deere Deere PowerTech™ 3029 EWX

Engine displacement

3 cylinder: 2.9 L
179 cu in.

Rated engine power

At 2200 rpm: 55.1 kW
75 hp

Maximum engine power

55.1 kW
75 hp

Rated PTO power (hp SAE)

At 2100 rpm: 43 kW
57.7 hp

Maximum PTO power

Transmission type

Standard: PowrReverser™ 16F/16R
Optional: PowrReverser Hi-Lo 32F/16R

Hydraulic pump rated output

94 L/min
24.7 gpm

Rear hitch category (SAE designation)

Category 2; convertible to 1

Base machine weight

Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)

Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)

Description

John Deere PowerTech™ 3029 EWX

Engine type

3029HPY96

Engine family

NJDXL02.9318

Rated speed

2200 rpm

Aspiration

Turbocharged and air-to-air aftercooled

Cylinders liners

Wet sleeved

Emission level

Final Tier 4

After treatment type

DOC/DPF

Displacement

3 cylinder: 2.9 L
179 cu in.

Rated power

At 2200 rpm: 55.1 kW
75 hp

Rated PTO power (hp SAE)

At 2100 rpm: 43 kW
57.7 hp

Maximum PTO power

Intelligent Power Management (IPM)

Power boost

0 percent

Maximum engine power

55.1 kW
73.9 hp

Engine peak torque

At 1600 rpm: 300 Nm
221 lb-ft

Drawbar power

PTO torque rise

At 1400 rpm: 26 percent

Fuel injection system and control

Air cleaner type

Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)

Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)

Type

Standard: PowrReverser™ 16F/16R
Optional: PowrReverser Hi-Lo 32F/16R

Reverser

Left hand, electrohydraulic

Clutch; wet/dry

Wet

Creeper

Not available

Type

Open center

Pump rated output

94 L/min
24.7 gpm

Available flow at a single rear SCV

70 L/min
18.4 gpm

Available flow at front SCVs

Number of rear selective control valves (SCVs)

Standard: Two
Optional: Three

Number of mid selective control valves (SCVs)

Standard: Two
Optional: Up to Three

Number of front selective control valves (SCVs)

Joystick SCV control

Mechanical

Auxiliary hydraulic features

SCV control

Hitch draft control load sense type

Mechanical or electrohydraulic

Remote control valves available

Standard: Two
Optional: Three

Hitch category (SAE designation)

Category 2; convertible to 1

Maximum lift capacity behind lift points

Standard: 2336 kg
5150 lb
Optional: 2699 kg
5950 lb

Lift capacity at standard frame

Sensing type

Lower link

Rear axle differential lock

Electrohydraulic

Drawbar category

Category 2

Maximum vertical load

Road/field use (250-mm extended): 1450 kg
3197 lb
Field use (350-mm extended): 1200 kg
2646 lb
Field use (400-mm extended): 1200 kg
2646 lb

Type

Independent, 34.9 mm (1.375 in)
Standard: 540/540 Economy (6 spline)
Optional: 540/540E (6 spline) and 1000 rpm
(21 spline) reversible shaft

Engine rpm (at rated PTO speeds)

540 at 2100 rpm
540E at 1645 rpm
1000 at 2100 rpm

Economy PTO speeds

Reverse PTO speeds

Multispeed PTO option availability

Ground speed PTO option availability

PTO actuation

Category

Electric power

Standard lift capacity

Front power take-off (PTO)

PTO speed

Type

Flange

Final drive type

Inboard planetary

Differential controls

Electrohydraulic

Axle type

Brakes, type and control

Hydraulic wet disc

Rear differential lock

Load rating

Type

Standard: Mechanical Front Wheel Drive (MFWD)
Optional: Two-Wheel Drive (2WD)

Front axle differential lock

Load rating

Rear

2WD: 460/85R30 (18.4R30) R1W Radial
MFWD: 460/85R30 (18.4R30) R1W Radial

Wheel tread range

2WD: front: 1520-2020 mm
59.8-79.5 in.
rear: 1349-2055 mm
53.1-80.9 in.
MFWD: front: 1299-1997 mm
51.1-78.6 in.

Turning radius with brakes

2WD: 3.67 m
12.04 ft
MFWD: 3.85 m
12.6 ft

Turning radius without brakes

2WD: 3.85 m
12.6 ft
MFWD: 4.0 m
13.1 ft

Central Tire Inflation System (CTIS)

Front

Tread spacing

Drive type

Track width

Mid-rollers

Primary brake (foot brake)

Secondary brake

Park lock

MFWD braking

Front axle brakes

Auxiliary brakes

Hydraulic trailer brakes

Pneumatic trailer brakes

Alternator size

OOS: 90 amp
Cab: 120 amp

Battery options

12 V

Working lights

Standard: Halogen
Optional: LED

Type of bulb in headlight (Halogen, Zenon, LED)

Standard: Halogen
Optional: LED

Type of bulb in beacon (Halogen, Zenon, LED)

Optional: LED

dB(A) rating for backup alarm

Total cold cranking amps

Rollover protective structure, OOS

Rigid - foldable - telescopic
Foldable, two-post
Platform - flat/straddle
Flat
Gearshift location - console/floor
Floor

Seat

Standard: Mechanical
Optional: Air Ride or Premium Air Ride

Cab suspension

Instructional seat

Optional

Display

Automotive-style light-emitting diode (LED) instrument cluster

Radio

Optional

Inner cab volume

dB(A) rating

78 dBA

Cab glass area

Safety glass rating

Front visibility

Wheelbase

2WD and MFWD: 2350 mm
92.5 in.

Overall width

Overall length

4054 mm
159.6 in.

Overall height

Drawbar clearance

Front axle center

Approximate shipping weight, Open;Cab

2WD OOS: 3700 kg
8140 lb
2WD Cab: 3900 kg
8580 lb
MFWD OOS: 3975 kg
8765 lb
MFWD Cab: 4175 kg
9185 lb

Base machine weight

Maximum ballast level

Maximum permissible weight

Crankcase oil volume

Fuel tank

Standard: OOS: 148.4 L
39.2 U.S. gal.
Cab: 165.4 L
43.7 U.S. gal.
Optional: OOS: 178.3 L
47.1 U.S. gal.
Cab: 196.8 L
52.0 U.S. gal.

Diesel exhaust fluid (DEF) tank

Not Applicable

Cooling system

Transmission-hydraulic system

Interval for engine oil change

Interval for hydraulic/transmission oil change

Interval for engine coolant change

Loader

Lift capacity at full height

Maximum lift height

Leveling type

Guidance

Telematic

Remote diagnostics

AutoTrac ready

No

ISOBUS ready

No

CommandCenter video inputs

Immobilizer

Side slope rating

Uphill/downhill slope rating

Country of manufacture

Pune, India
