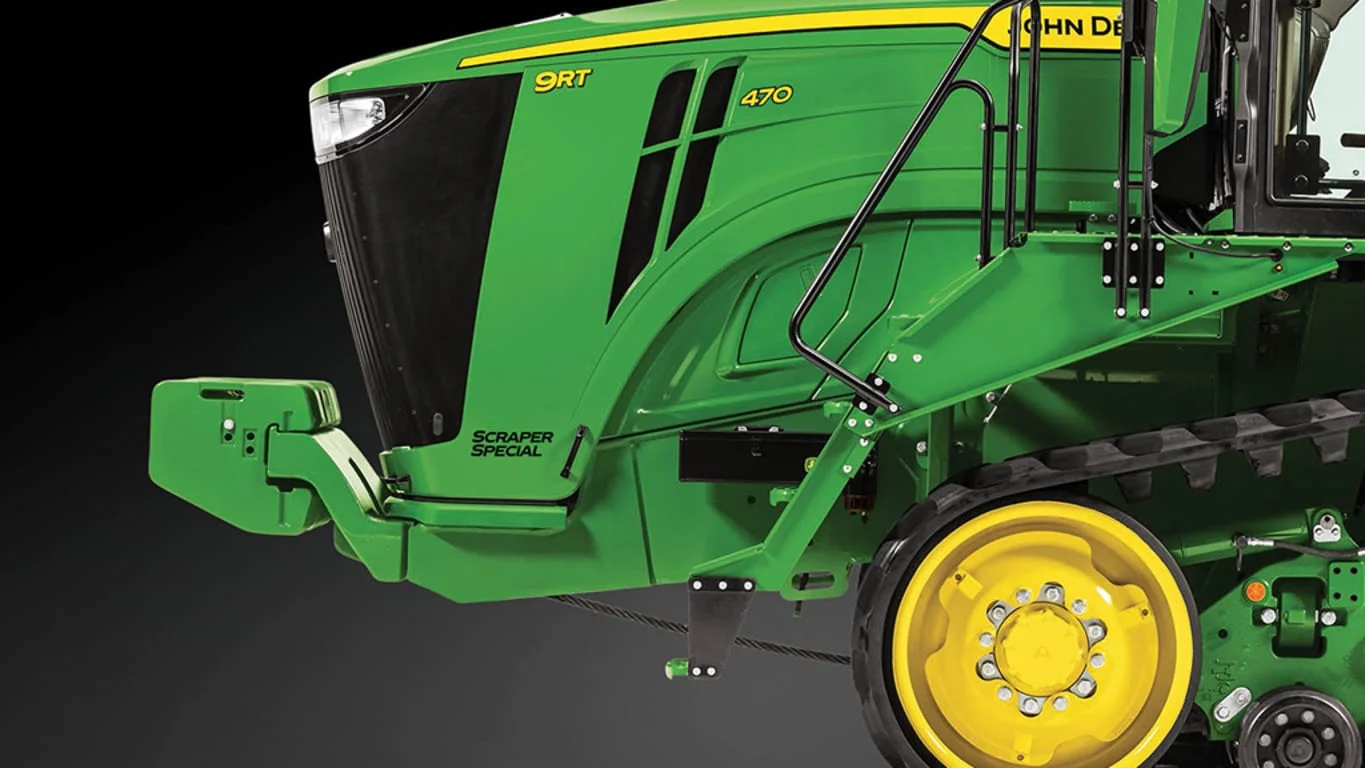

JD14 engine

The muscle to handle heavy draft disks and rippers, power-hungry air seeders and planters, and large transport loads like grain carts and slurry wagons. The durable design and heavy-duty components you can depend on when you need to get in and get out. A dual emission strategy is available for Australia and New Zealand; the 13.6L (827-cu in.) engine can be configured in either Final Tier 4 (FT4)/ Stage V or Tier 3/Stage IIIA compliant packages. You get real-world power with the purpose-built JD14 (13.6L/827-cu in.) engines from John Deere Power Systems, standard in the 291 to 471 engine kW (390 to 640 engine hp) 9 Series Tractors.

We developed our newest power plant from a clean sheet of paper, starting with stronger castings, beefier bearings, and more robust internal components, all designed to meet the high demands of field operations. We replaced the fuel injectors with a high-pressure common rail (HPCR) fuel system, and for FT4 configurations, eliminated the diesel particulate filter (DPF) to boost to fuel efficiency and lower operation and maintenance costs. Integrated coolant and oil passages, along with a new belt-driven water pump, eliminate potential leak points and allow for a less-crowded engine compartment, improving serviceability and reducing debris accumulation.

In redesigning the engine, we also gave it:

• Hydraulic valve lash adjusters to maintain valve-lash settings during engine operation, reduce valve train noise and wear, and allow for greater fuel efficiency.
• A hydraulic fan drive for improved cooling capacity with no required maintenance (FT4 only).
• A new integrated wiring harness design featuring a modular layout for reduced vibration, greater reliability, and easier service and diagnostics.
• A rear gear train that integrates fully into the cast-iron block, reducing tiresome engine noise and improving the durability of the crankshaft damper.
• Combination sensors where possible, meaning fewer sensors, connectors, and wires.
• A powerful engine brake that allows operators to use the engine to control tractor and implement speeds while transporting or traveling downhill, reducing wear on the drivetrain brake components.

It all adds up to:

• 14 percent more power and 11 percent more torque
• 3 percent lower fuel consumption
• 10 percent lighter
• 13 percent reduction in mean repair time, as well as savings in service costs over the life of the engine

13.5L (824-cu in.) engine compared to JD14 (13.6L/827-cu in.) engine

NOTE: The PowerTech™ 13.6L (827-cu in.) engine has been renamed the JD14.

Ultimate Visibility package at night

Visibility is more than just lighting. It’s mirrors where you need them, shades for the blinding late-fall and early-spring sun, wipers to help keep all the glass clear, and integrated camera capability. The new 9 Series Tractors let you choose the visibility package that best suits your needs – Select, Premium, or Ultimate with 360-degree light-emitting diode (LED) lighting –so you and your operators can run with all-conditions confidence.

*Convenience lights illuminate the corners of the cab for easier entry and exit.

** Starting with model year 2022, the Ultimate Visibility package is camera ready.

Maximizing uptime using connectivity and technology

John Deere makes it easy for you to access an entire suite of connected applications, all designed to help you make the most of every seed, every hour, every gallon, and every bit of machine-related information.

Each 9 Series Tractor comes standard with the John Deere StarFire™ 6000 Integrated Receiver and Generation 4 CommandCenter™ display; there’s no need for setup, installation, or initial global positioning system (GPS) calibration. Integrated AutoTrac™ assisted steering gives you accurate, scalable guidance for low-stress operation in nearly any conditions and can improve field efficiency by 10 percent or more. The 9 Series Tractors also feature standard JDLink™ telematics and users can turn on connectivity in the John Deere Operations Center for anytime, anywhere access to critical machine and field information. And every tractor comes from the factory with John Deere Connected Support™, so you and your dealer can anticipate and address critical system needs.

From here? The sky’s the limit. Choose any of our operation-specific applications to help maximize efficiency and productivity during planting, tillage, or other field activities.

*NOTE: Ordering is temporarily unavailable for the StarFire 6000 Integrated Receiver. John Deere is diligently working to resolve this issue. Please watch the Price Pages and the announcements in the Sales Manual for updates. We apologize for any inconvenience.

StarFire 6000 Integrated Receiver	AutoTrac	JDLink
Base equipment: Generation 4 CommandCenter display StarFire 6000 Integrated Receiver Optional equipment: Generation 4 CommandCenter display plus extended monitor	Base equipment: AutoTrac activation SF3 accuracy (+/- 3 cm [1.2 in.]) Data Sync Optional equipment: AutoTrac RowSense™ system* AutoTrac Turn Automation** AutoPath™ system** AutoTrac Implement Guidance* Gen 4 Machine Sync	Base equipment: JDLink telematics system Wireless Data Transfer John Deere Connected Support service Expert Alerts Remote Display Access Service ADVISOR™ Remote service tool

*Available with Premium Activation 3.0
**Available with Automation Activation 4.0

Ultimate Comfort and Convenience package (shown on 8R Tractor)

When you’re spending dozens of hours per week in the cab, a comfortable operating environment isn’t just an option – the right features, in the right places, let you and your operators work at your best, dawn to dusk and beyond.

The 7, 8, and 9 Series Tractors offer three Comfort and Convenience packages to fit your needs: Select, Premium, and Ultimate. But regardless of which package you choose, you’ll still get the John Deere CommandARM™ console that puts critical controls within easy reach. You’ll get all the storage space you need for drinks, meals, and other stowable items. And you’ll have plenty of outlets to keep your electronics powered.

NOTE: XM not available in all geographical regions.

Bluetooth is a trademark of Bluetooth SIG, Inc. XM is a trademark of Sirius XM Radio Inc.

Selective control valves (SCVs) on a 9R Tractor

Of course, the 9 Series has the hydraulic muscle you need to push, pull, lift, and power your most demanding implements. But thanks to a range of enhancements to the hydraulic system, these tractors can provide that power at lower engine speeds, saving you fuel while still giving your implements the capacity they need. Regardless of model or configuration, the new 9 Series hydraulic system gives you:

• An increase of almost 40 percent in charge pump capacity, from 54-cc to 75-cc, to help maintain a higher flow at lower engine speeds
• A new swash plate angle sensor to monitor hydraulic flow and pressure and adjust engine speed to meet demand
• An integrated hydraulic pump, filter, and priority valve for fewer and shorter lines, reduced pressure loss, fewer flow restrictions, and an extra level of reliability

And if you depend on implements that need continuous hydraulic power, the 9 Series Tractors are available with Intelligent Power Management (IPM). Using dual pumps and advanced sensor and control technology, IPM provides additional engine and hydraulic power for high-demand applications like air seeding up and over hills or through thick, tough soil.

Add in single and dual pump options and a flexible number rear SCVs, and you can configure a powerful, fuel-efficient hydraulic system to meet the demands of your specific operation without paying for capacity you don’t need.

9RX Tractor

When you’re trying to get a field planted before weather moves in, there’s no time to hit a scheduled maintenance interval or get smacked with an unexpected repair. That’s why we designed the 9 Series for maximum reliability and less in-season maintenance.

To start, we simplified as many systems as possible, using components common to other tractor lines and minimizing potential downtime due to parts availability. Then we eliminated as many potential pain points as possible through changes in the cooling, aftertreatment, and diagnostic systems, including:

• Replacing the fan drive system with a maintenance-free hydraulic fan drive
• Streamlining aftertreatment with a single-canister inline system that’s simpler and features fewer parts
• Improving uptime by adding better descriptions to diagnostic codes and offering predictive diagnostics through John Deere Expert Alerts
• A front-left service panel for easier access to engine oil check and fill points;
• Offering a 500-hour oil change interval on the John Deere JD14 (13.6L/827-cu in.) Final Tier 4 (FT4) engine when using approved John Deere oil and filter.

Engine description

JD14 (B20 diesel compatible)

Engine displacement

13.6 L
827 cu in.

Rated engine power

346 kW
470 hp

Maximum engine power

380 kW
517 hp

Rated PTO power (hp SAE)

Maximum PTO power

Transmission type

John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™: 40 km/h
25 mph

Hydraulic pump rated output

Standard: 208 L/min
55 gpm
Optional: 416 L/min
110 gpm

Rear hitch category (SAE designation)

Base machine weight

20,582 kg
45,375 lb

Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)

Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)

Description

JD14 (B20 diesel compatible)

Engine type

In-line six, four valve

Engine family

MJDXL13.5334

Rated speed

2100 rpm

Aspiration

Dual series turbocharger with fixed geometry first stage and wastegated second stage; air-to-air aftercooling and cooled exhaust gas recirculation (EGR)

Cylinders liners

Wet-sleeve

Emission level

Final Tier 4 (FT4)

After treatment type

Diesel oxidation catalyst (DOC)/selective catalytic reduction (SCR)

Displacement

13.6 L
827 cu in.

Rated power

346 kW
470 hp

Rated PTO power (hp SAE)

Maximum PTO power

Intelligent Power Management (IPM)

Power boost

10 percent

Maximum engine power

380 kW
517 hp

Engine peak torque

At 1550 rpm: 2169 Nm
1600 lb-ft

Drawbar power

PTO torque rise

38 percent

Fuel injection system and control

Air cleaner type

Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)

Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)

Type

John Deere e18 18-speed PowerShift with Efficiency Manager: 40 km/h
25 mph

Reverser

Clutch; wet/dry

Creeper

Type

Closed-center, pressure-and-flow compensated

Pump rated output

Standard: 208 L/min
55 gpm
Optional: 416 L/min
110 gpm

Available flow at a single rear SCV

1.9-cm (3/4-in.) couplers: 159 L/min
42 gpm

Available flow at front SCVs

Number of rear selective control valves (SCVs)

Standard: four 1.9-cm (3/4-in.) deluxe
Optional: six 1.9-cm (3/4-in.) deluxe

Number of mid selective control valves (SCVs)

Number of front selective control valves (SCVs)

Joystick SCV control

Auxiliary hydraulic features

SCV control

Electronic

Hitch draft control load sense type

Remote control valves available

Hitch category (SAE designation)

Maximum lift capacity behind lift points

Lift capacity at standard frame

Sensing type

Rear axle differential lock

Drawbar category

Drawbar support for short scraper drawbars

Maximum vertical load

Type

Engine rpm (at rated PTO speeds)

Economy PTO speeds

Reverse PTO speeds

Multispeed PTO option availability

Ground speed PTO option availability

PTO actuation

Category

Electric power

Standard lift capacity

Front power take-off (PTO)

PTO speed

Type

Final drive type

Outboard planetary

Differential controls

Axle type

Brakes, type and control

Rear differential lock

Load rating

Type

Diameter: 120 x 3048 mm
4.72 x 120 in.

Front axle differential lock

Full-locking electrohydraulic

Load rating

Rear

Wheel tread range

Turning radius with brakes

Turning radius without brakes

Central Tire Inflation System (CTIS)

Front

Tread spacing

Drive type

Camso® 6500 Scraper Series Tracks - friction drive track belts

Track width

762 mm
30 in.

Mid-rollers

Four

Primary brake (foot brake)

Secondary brake

Park lock

MFWD braking

Front axle brakes

Auxiliary brakes

Hydraulic trailer brakes

Pneumatic trailer brakes

Alternator size

Standard: 250 amp
Optional: 330 amp

Battery options

12 V

Working lights

Standard: 18 halogen
Optional: 18 or 24 LED plus 8 LED convenience lights

Type of bulb in headlight (Halogen, Zenon, LED)

Standard: halogen, 65 W
Optional: LED

Type of bulb in beacon (Halogen, Zenon, LED)

dB(A) rating for backup alarm

Total cold cranking amps

3 x 925 CCA
Total: 2775 CCA

Rollover protective structure, OOS

Seat

Degree of seat swivel, left hand
25 degree (angle)
Degree of seat swivel, right hand
40 degree (angle)
Air suspension

Cab suspension

Instructional seat

Standard

Display

Standard: Generation 4 4600 CommandCenter™: 25.4 cm
10 in.
Optional: Extended monitor

Radio

Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna
Optional: Touchscreen radio

Inner cab volume

3.27 m³
115 cu ft

dB(A) rating

Cab glass area

6.64 m²
71.47 sq ft

Safety glass rating

Front visibility

Wheelbase

2947 mm
116 in.

Overall width

Overall length

With front weights, excluding hitch and coupler: 6965 mm
274.2 in.

Overall height

Drawbar clearance

483 mm
19 in.

Front axle center

Approximate shipping weight, Open;Cab

20,582 kg
45,375 lb

Base machine weight

20,582 kg
45,375 lb

Maximum ballast level

24,494 kg
54,000 lb

Maximum permissible weight

Crankcase oil volume

64 L
16.9 U.S. gal.

Fuel tank

1324 L
350 U.S. gal.

Diesel exhaust fluid (DEF) tank

93.9 L
24.8 U.S. gal.

Cooling system

56.5 L
14.9 U.S. gal.

Transmission-hydraulic system

Without 3-point hitch and PTO: 300 L
79.3 U.S. gal.

Interval for engine oil change

500 hours

Interval for hydraulic/transmission oil change

1500 hours

Interval for engine coolant change

6000 hours

Loader

Lift capacity at full height

Maximum lift height

Leveling type

Guidance

Integrated AutoTrac™

Telematic

Available with JDLink™ hardware, activations, and Ethernet harnesses (availability dependent upon destination)

Remote diagnostics

Available with activated JDLink hardware and activations

AutoTrac ready

ISOBUS ready

CommandCenter video inputs

Immobilizer

Side slope rating

Uphill/downhill slope rating

Country of manufacture

USA

Type

Heavy-duty steering pump: 130 cc
7.9 cu in.
