EVT transmission

Stepless transmissions are ideal for overall drivability and those wishing to complete work at precise speeds. Current stepless transmissions are better than ever, but current designs limit true potential. Replacing hydrostatic power with electric power unlocks the ability to monitor the exact load through each major drivetrain component, improves diagnostics, and increases reliability. The EVT transmission delivers efficient power to the ground that John Deere is known for, all with the familiar controls and drive strategy of the IVT. Available as optional equipment on 8R 410, 8RT 410, and 8RX 410 models.

• Improved acceleration between desired ground speeds compared to gearshift transmissions
• Precise infinite speed control from 0.05 to 50 km/h (0.03 to 31 mph)
• Efficient power transfer from the engine to the drawbar results in low fluid consumption while maintaining excellent pulling performance
• Use of electric drive components results in a noticeable reduction in drivetrain noise experienced by the operator compared to the traditional hydraulic motors
• Enhanced reliability with the utilization of proven electric components
• 55 percent reduction in diagnostics requiring tools or a technician for simple in-field troubleshooting

Ultimate Visibility package at night (shown on 8R)

Visibility is one of the most important attributes of the cab, but it is more than just lighting. In addition to lighting, John Deere visibility packages include mirrors, sunshades, wipers, and camera readiness. Some benefits of the visibility packages include:

• Three package levels to fit your needs – Select, Premium, or Ultimate
• Operate confidently with greater visibility
• Ultimate Visibility package with more light-emitting diode (LED) output and full 360-degree illumination
• Integrated camera capability

*Convenience lights illuminate the corners of the cab for easier entry and exit
**Starting with model year 2022, the Ultimate visibility package is camera ready.

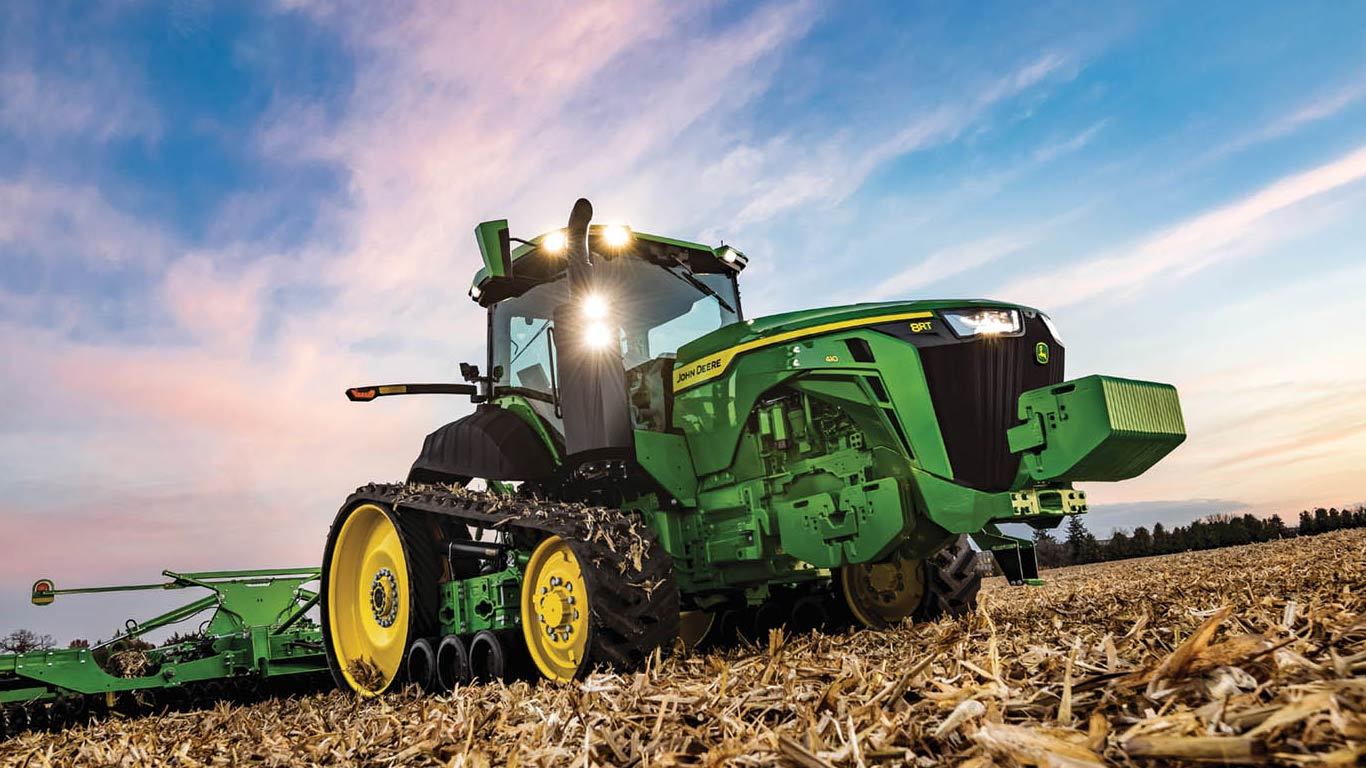

8RT Tractor with cab suspension and air seat

8RT Tractors naturally offer excellent in-field ride due to the large footprint and an AirCushion™ suspension system. A great ride is also enabled by the lack of power hop due to the track system. 8RT Tractors are equipped with a four-post cab suspension and air seat that is specifically designed for and only found on these models. This system reduces high-frequency vibrations typically associated with road transport and allows 8RT Tractors to strike an unmatched balance in ride quality in the field or on the road. Both the cab suspension and AirCushion suspension are in base equipment on all 8RT Tractors.

• Four-post cab suspension with an air seat offers an exceptional ride for operators while on the road.
• The cab suspension system specifically designed for 8RT Tractors is offered in base equipment.
• 8RT Tractors naturally ride well in the field due to the independent track systems and a large footprint.
• The AirCushion suspension system not only improves ride quality in the field but also allows the track systems to move freely and independently of the other, maximizing track-to-soil contact and improving overall traction.

AirCushion suspension on 8RT Tractors

8RX and 8R Tractors in the field

All 8 Series Tractors come standard with an 85-cc (5.2-cu in.) hydraulic pump. This pump provides up to 227.1 L/min (60 gpm) hydraulic flow. A dual pump option featuring 85-cc and 35-cc (5.2-cu in. and 2.1-cu in.) displacement hydraulic pumps is available for all 8R and 8RX Tractors. The dual-pump system provides a hydraulic flow of 318 L/min (84 gpm), ideal for running at lower engine speeds. At the rear, up to six selective control valves (SCVs) are available with 1.9-cm (3/4-in.) options.

• Single or dual pump options to fit specific producer applications
• Up to 318 L/min (84 gpm) through the dual pump system on 8R and 8RX Tractors
• Options from four to six factory-installed SCVs
• For maximum flow, 1.9-cm (3/4-in.) SCV couplers are available factory and field installed

A power beyond option is available on all models, and a high-capacity take-out oil reservoir (on 8R Tractors only) is also available for high-demand applications.

8RX Tractor with power beyond

Ultimate Comfort and Convenience package (shown on 8R Tractor)

Comfort and Convenience packages

When you reach a 40-hour week by Wednesday, you're logging some serious hours in the cab. Spend that time in the refreshed and refined John Deere cab, and experience a quiet, comfortable ride with unrivaled visibility and convenience.

• Three package levels to fit your needs – Select, Premium, or Ultimate
• CommandARM™ console that puts everything you need within reach
• Plenty of storage
• Work comfortably during long days in the field with an automotive-style seat
• Keep electronics powered throughout the day with a variety of outlets

Bluetooth is a trademark of Bluetooth SIG, Inc.

Maximizing uptime using connectivity and technology

Your needs and success are the focus of John Deere. John Deere makes it easy for you to benefit from having a connected tractor in your operation. All tractors come standard with JDLink™ telematics system and customers can turn on connectivity in the John Deere Operations Center™ application. With a StarFire™ 6000 Integrated Receiver* and Generation 4 CommandCenter™ Display, you can easily step right into advanced technology. If you’re an advanced tech user, you’ll enjoy the benefits of a highly intelligent machine connected to a full suite of solutions on the most open platform in the industry. Advantages of a connected machine include:

• StarFire 6000 Integrated Receiver eliminates all setup, installation, and global positioning system (GPS) calibrations
• AutoTrac™ assisted steering guides the machine with accuracy in a variety of field conditions
• Automation is an option with some applications
• John Deere Connected Support™ is a proactive service approach to improve service efficiency and reduce machine downtime
• JDLink gives you access to information anytime, anywhere, to make data driven decisions with John Deere Operations Center and Documentation

The technology and connectivity in John Deere tractors allow you to optimize productivity, increase uptime, and boost profits with machine information from any device, anywhere.

*NOTE: Ordering is temporarily unavailable for the StarFire 6000 Integrated Receiver. John Deere is diligently working to resolve this issue. Please watch the Price Pages and the announcements in the Sales Manual for updates. We apologize for any inconvenience.

StarFire 6000 Integrated Receiver	AutoTrac	JDLink
Base equipment: Generation 4 CommandCenter display StarFire 6000 Integrated Receiver Optional equipment: Generation 4 CommandCenter display plus extended monitor	Base equipment: AutoTrac activation SF3 accuracy (+/- 3 cm [1.2 in.]) Data Sync Optional equipment: AutoTrac RowSense™* AutoTrac Turn Automation** AutoTrac Implement Guidance* Gen 4 Machine Sync	Base equipment: JDLink telematics system Wireless Data Transfer John Deere Connected Support service Expert Alerts Remote Display Access Service ADVISOR™ Remote service tool

*Available with Premium Activation 3.0
**Available with Automation Activation 3.0

Connected Support technology

When you buy John Deere equipment, you expect reliability. You also know that problems can happen, and a product is only as good as the support behind it. That’s why John Deere equipment is prepared with technology that senses potential issues and can alert you and your dealer promptly—in the cab or anywhere you are.

John Deere Connected Support is a revolutionary change to support that leverages technology and the connectivity of JDLink™ telematics to prevent downtime and resolve problems faster. These tools decrease downtime by an average of 20 percent, enabling faster responses to unexpected problems and reducing technician trips to your machine. For some issues, unplanned downtime can even be prevented altogether through prediction of the issue.

With your permission, John Deere Connected Support:

• Keeps you running by monitoring machine health and promptly alerting you and your dealer of issues
• Saves time by remotely viewing in-cab displays, reducing trips to the machine
• Reduces or even eliminates technician trips to a machine through remote diagnostic and remote software reprogramming capabilities
• Connects experts with the information needed to respond to downtime faster and prevent it altogether

With more than a decade of experience leveraging connectivity to solve problems, no one else has the experience, tools, and knowledge to keep you running as John Deere and your John Deere dealer can. Connected Support is an in-base feature on all John Deere products with factory- or field-installed JDLink.

Engine description

John Deere PowerTech™ 9.0 L (B20 diesel compatible)

Engine displacement

9.0 L
549 cu in.

Rated engine power

ECE-R120: 302 kW
410 hp

Maximum engine power

ECE-R120: 326 kW
443 hp

Rated PTO power (hp SAE)

231 kW
310 hp

Maximum PTO power

Transmission type

Standard: e23™ PowerShift™ with Efficiency Manager™ 40K, 40 km/h
24.9 mph
Optional: John Deere eAutoPowr™ EVT 40K, 0.05-42 km/h
0.03-26 mph

Hydraulic pump rated output

Standard: 85-cc pump: 227.1 L/min
60 gpm

Rear hitch category (SAE designation)

Standard: Category 4N/3 standard lift at 610 mm (24 in.) behind hitch point: 9072 kg
20,000 lb
Optional: Category 4N/3 at 610 mm (24 in.) behind hitch point: 6803 kg
15,000 lb

Base machine weight

e23, 63.5-cm (25-in.) tracks: 15,600 kg
34,400 lb

Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)

Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)

Description

John Deere PowerTech 9.0 L (B20 diesel compatible)

Engine type

In-line six, four valve

Engine family

MJDXL09.0333

Rated speed

2100 rpm

Aspiration

Dual turbochargers, variable geometry turbo with fixed geometry turbo in series; air-to-air aftercooling and cooled exhaust gas recirculation

Cylinders liners

Wet-sleeve

Emission level

Final Tier 4

After treatment type

Diesel oxidation catalyst (DOC)/diesel particulate filter (DPF)/selective catalytic reduction (SCR)

Displacement

9.0 L
549 cu in.

Rated power

ECE-R120: 302 kW
410 hp

Rated PTO power (hp SAE)

231 kW
310 hp

Maximum PTO power

Intelligent Power Management (IPM)

Power boost

8 percent

Maximum engine power

ECE-R120: 326 kW
443 hp

Engine peak torque

At 1600 rpm: 1851 Nm
1365 lb-ft

Drawbar power

PTO torque rise

40 percent

Fuel injection system and control

Air cleaner type

Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)

Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)

Type

Standard: e23 PowerShift with Efficiency Manager 40K, 40 km/h
24.9 mph
Optional: John Deere eAutoPowr EVT 40K, 0.05-42 km/h
0.03-26 mph

Reverser

Clutch; wet/dry

Creeper

Type

Closed-center, pressure/flow compensated system with load sensing

Pump rated output

Standard: 85-cc pump: 227.1 L/min
60 gpm

Available flow at a single rear SCV

1.3-cm (1/2-in.) couplers: 132 L/min
35 gpm
1.9-cm (3/4-in.) coupler: 159 L/min
42 gpm

Available flow at front SCVs

Number of rear selective control valves (SCVs)

Standard: 1.3-cm (1/2-in.) ISO couplers: 4
Optional: 1.3-cm (1/2-in.) ISO couplers: 5 and 6 available
1.9-cm (3/4-in.) ISO coupler: 1

Number of mid selective control valves (SCVs)

Number of front selective control valves (SCVs)

Joystick SCV control

Auxiliary hydraulic features

SCV control

Electronic

Hitch draft control load sense type

Remote control valves available

Hitch category (SAE designation)

Standard: Category 4N/3 standard lift at 610 mm (24 in.) behind hitch point: 9072 kg
20,000 lb
Optional: Category 4N/3 at 610 mm (24 in.) behind hitch point: 6803 kg
15,000 lb

Maximum lift capacity behind lift points

Standard (at 610-mm [24-in.] behind hitch point): 12,124 kg
26,729 lb

Lift capacity at standard frame

Sensing type

Electrohydraulic

Rear axle differential lock

Drawbar category

Standard: Category 4
Optional: Category 4 with heavy-duty support

Maximum vertical load

Standard: 2245 kg
4950 lb
Optional (dependent on drawbar position): 4990 kg
11,000 lb

Type

Independent
Standard: 44 mm (1.75 in.) 20-spline, 1,000 rpm
Optional: 44 mm (1.75 in.) 20-spline, 1,000 rpm/1,000E rpm

Engine rpm (at rated PTO speeds)

e23 PowerShift: 1,000 PTO rpm at 1,995 engine rpm, 1,000 ECO PTO at 1,590 engine rpm, 540 PTO rpm at 1,810 engine rpm

Economy PTO speeds

Reverse PTO speeds

Multispeed PTO option availability

Available: 45-mm (1.75-in.), 1000-rpm and 1000E economy rpm PTO, in-cab shiftable

Ground speed PTO option availability

PTO actuation

Electrohydraulic with adjustable modulation

Category

Electric power

Standard lift capacity

Front power take-off (PTO)

PTO speed

Type

Final drive type

Inboard planetary three pinion

Differential controls

Axle type

Brakes, type and control

Rear differential lock

Load rating

Type

Front axle differential lock

Load rating

Rear

Wheel tread range

Turning radius with brakes

Turning radius without brakes

Central Tire Inflation System (CTIS)

Front

Tread spacing

Standard: 1828.8 to 3048 mm
72 to 120 in.

Drive type

Camso® 4500 and 6500 General Ag Series - friction drive track belts

Track width

Standard: 635 mm
25 in.
Available: 419 mm
16.5 in.
457 mm
18 in.
609 mm
24 in.
762 mm
30 in.

Mid-rollers

Three

Primary brake (foot brake)

Secondary brake

Park lock

MFWD braking

Front axle brakes

Auxiliary brakes

Hydraulic trailer brakes

Pneumatic trailer brakes

Alternator size

Standard: 200 amp
Optional: 330 amp

Battery options

12 V

Working lights

Standard: 18 halogen
Available: 18 LED
22 LED

Type of bulb in headlight (Halogen, Zenon, LED)

Standard: halogen, 65 W
Available: LED

Type of bulb in beacon (Halogen, Zenon, LED)

dB(A) rating for backup alarm

Total cold cranking amps

1,850 CCA

Rollover protective structure, OOS

Seat

Degree of seat swivel, left hand
25 degree (angle)
Degree of seat swivel, right hand
40 degree (angle)
Standard: air suspension

Cab suspension

Standard: four-post cab suspension

Instructional seat

Standard

Display

Standard: 4600 Generation 4 CommandCenter™: 25.4 cm
10 in.

Radio

Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna

Inner cab volume

3.24 m³
114 cu ft

dB(A) rating

Cab glass area

6.52 m²
70.18 sq ft

Safety glass rating

Front visibility

Wheelbase

Overall width

Overall length

Overall height

Drawbar clearance

Front axle center

Approximate shipping weight, Open;Cab

Base machine weight

e23, 63.5-cm (25-in.) tracks: 15,600 kg
34,400 lb

Maximum ballast level

17,700 kg
39,000 lb

Maximum permissible weight

18,200 kg
40,100 lb

Crankcase oil volume

25.7 L
6.8 U.S. gal.

Fuel tank

764 L
202 U.S. gal.

Diesel exhaust fluid (DEF) tank

31.3 L
8.3 U.S. gal.

Cooling system

42.3 L
11.2 U.S. gal.
EVT: 46.9 L
12.4 U.S. gal.

Transmission-hydraulic system

197 L
52 U.S. gal.

Interval for engine oil change

500 hours

Interval for hydraulic/transmission oil change

1,500 hours

Interval for engine coolant change

6,000 hours

Loader

Lift capacity at full height

Maximum lift height

Leveling type

Guidance

Integrated AutoTrac™

Telematic

JDLink™ hardware standard, activations, and Ethernet harnesses (availability dependent upon destination)

Remote diagnostics

JDLink hardware standard

AutoTrac ready

ISOBUS ready

CommandCenter video inputs

Immobilizer

Side slope rating

Uphill/downhill slope rating

Country of manufacture

USA

Type

Standard: Hydraulic power-steering with electric pump backup

Date collected

12 January 2022
