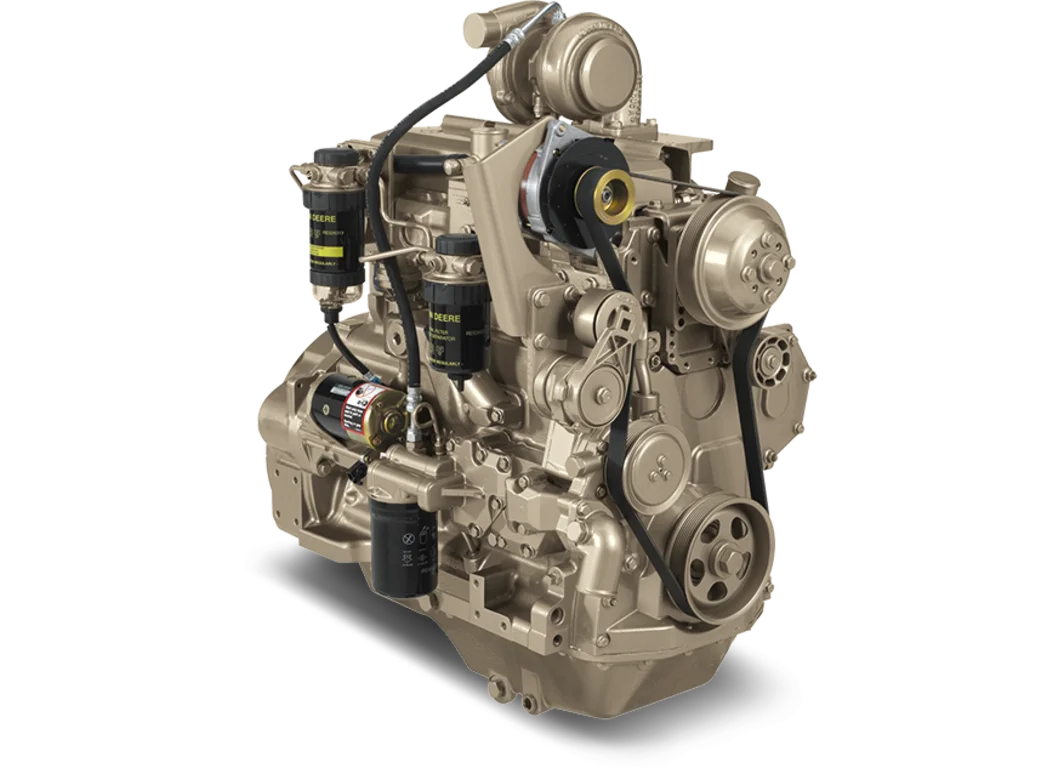

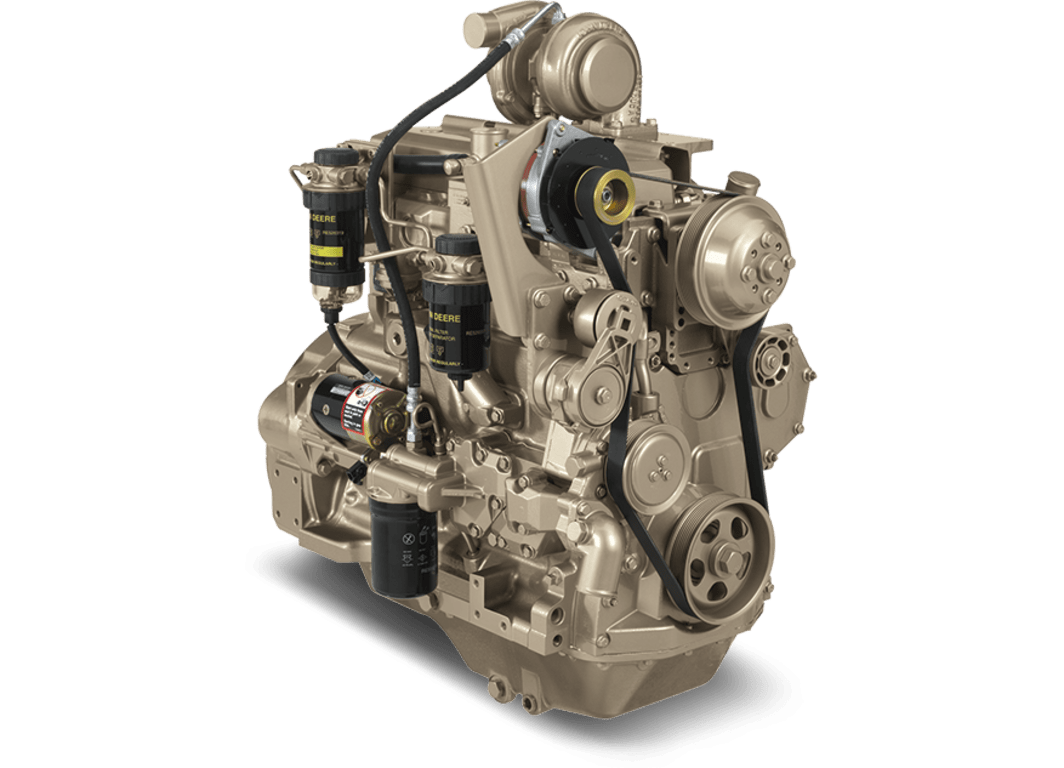

4045TF285
4.5L Generator Drive Engine
Nothing Runs Like a Deere™
• PowerTech™ E
• Standby: 74 kW (99 hp) @ 1800 rpm
• Prime: 67 kW (90 hp) @ 1800 rpm
Make an Enquiry on This Machine• Standby: 74 kW (99 hp) @ 1800 rpm
• Prime: 67 kW (90 hp) @ 1800 rpm
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
See how the 74-118 kW (99-158 hp) Tier 3 John Deere 4045TF285 generator drive diesel engine with fixed geometry turbocharger provides excellent breathing from a lower-cost 2-valve cylinder head for OEM gen-set applications.
Expand All
2-valve cylinder head
- Cross-flow head design provides excellent breathing from a lower-cost 2-valve cylinder head
High-pressure common-rail (HPCR) and engine control unit (ECU)
- The HPCR fuel system provides variable common-rail pressure, multiple injections, and higher injection pressures, up to 1600 bar (23,000 PSI). It also controls fuel injection timing and provides precise control for the start, duration, and end of the injection
Fixed geometry turbocharger
- Fixed geometry turbochargers are precisely matched to the power level and application
Turbocharged
- In turbocharged engines, the air is pre-compressed. Due to the higher pressure, more air is supplied into the combustion chamber allowing a corresponding increase in fuel injection which results in greater engine output
Multiple injection strategy
- The new HPCR fuel system and engine control unit (ECU) allow for multiple fuel injections. The number of fuel injections, based on speed and load, help contribute to lower combustion temperatures, which reduce the formation of NOx and particulates. The multiple injection strategy also provides an added benefit of noise reduction
John Deere electronic engine controls
- Electronic engine controls monitor critical engine functions, providing warning and/or shutdown to prevent costly repairs and eliminate the need for add-on governing components, all lowering total installed costs.
Compact size
- Mounting points are the same as Tier 2/Stage II engine models
Engine performance
- Block loading capability provided with standard electronic governor control
Additional features
- Self-adjusting poly-vee fan drive
- Forged-steel connecting rods
- Replaceable wet-type cylinder liners
- Either-side service
- 500-hour oil change
Specifications
Expand All
Emissions Certifications
- CARB
- EPA Tier 3
General Engine Data
- Model
- 4045TF285
- Number of cylinders
- 4
- Displacement-- L (cu in)
- 4.5 (275)
- Bore and Stroke-- mm (in)
- 106 x 127 (4.17 x 5.00)
- Compression Ratio
- 19.0:1
- Engine Type
- In-line, 4-Cycle
- Aspiration
- Turbocharged
- Length - mm (in)
- 860 (33.9)
- Width-- mm (in)
- 612 (24.1)
- Height-- mm (in)
- 1039 (40.9)
- Weight, dry - kg (lb)
- 491 (1082)
Performance Data Range
- Hz (rpm)
- 60 ( 1800 )
- Generator Efficiency %
- 88-92
- Power Factor
- 0.8
- Engine power - Prime kW
- 67
- Engine power - Prime hp
- 90
- Engine power - Standby kW
- 74
- Engine power - Standby hp
- 99
- Rated Fan Power - kW
- 5.2
- Rated Fan Power - hp
- 7
- Calculated generator set output - Prime kWe
- 54-57
- Calculated generator set output - Prime kVA
- 68-71
- Calculated generator set output - Standby kWe
- 61-63
- Calculated generator set output - Standby kVA
- 76-79
