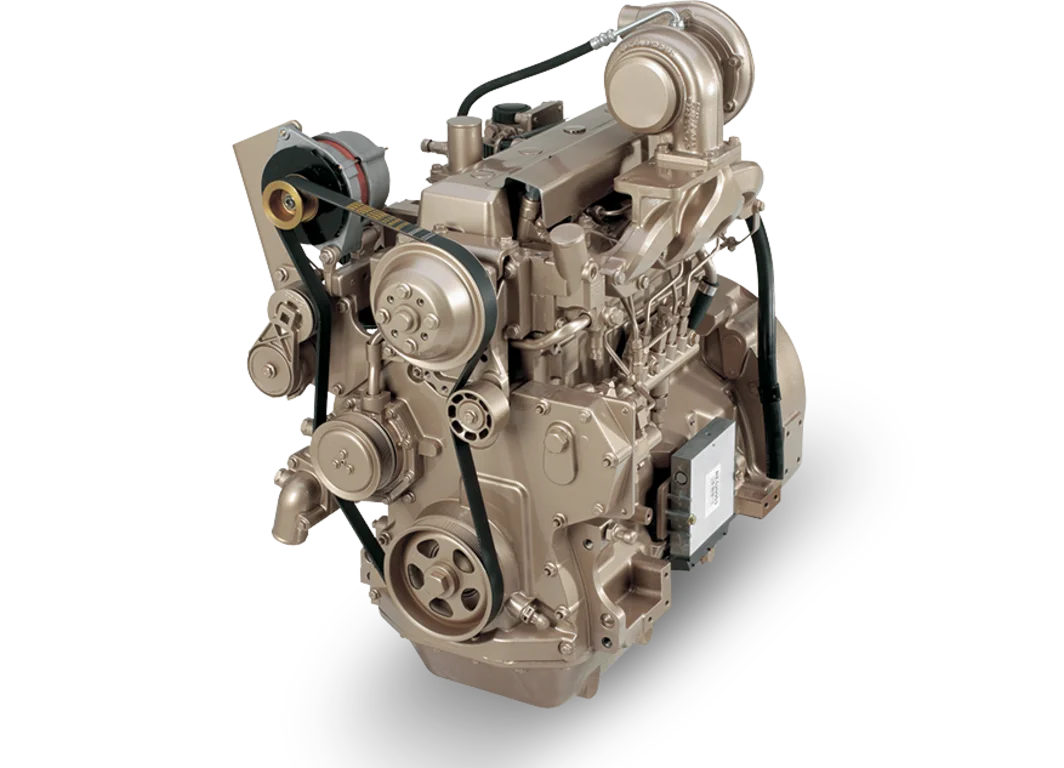

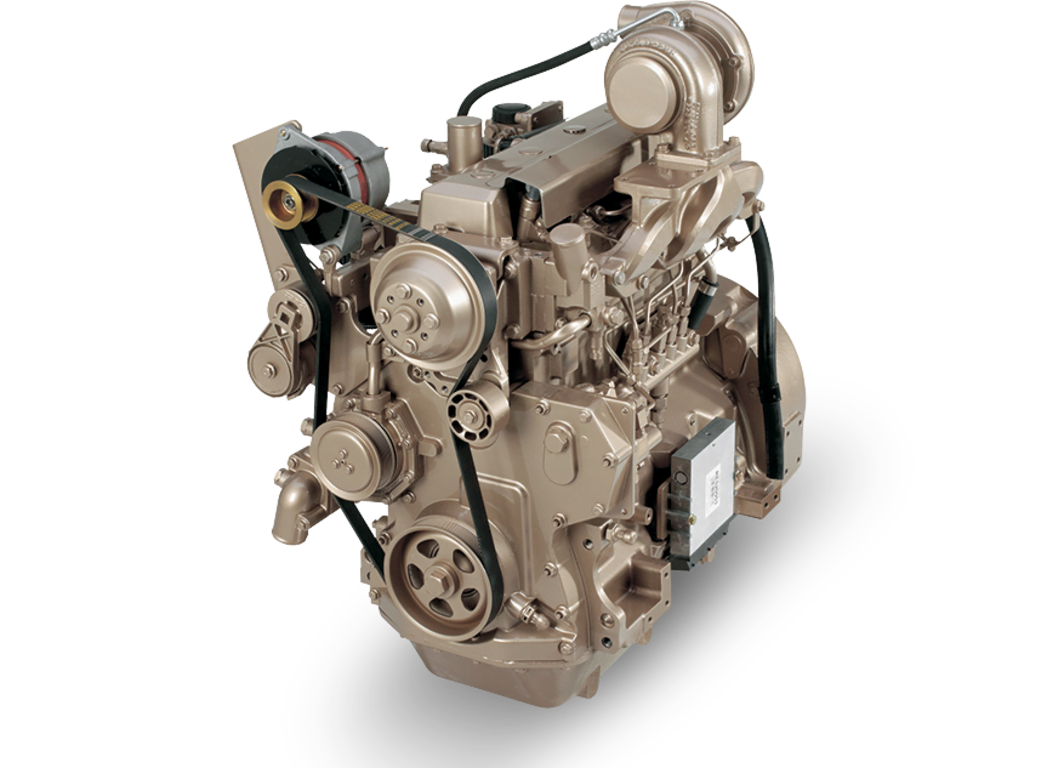

4045TF285
4.5L Industrial Diesel Engine
Nothing Runs Like a Deere™
- PowerTech ™
- 63 - 74 kW (84 - 99 hp)
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
Get details on 84 to 99 hp, 63 to 74 kW John Deere 4045TF285 industrial diesel engines for OEM equipment, including features, specs, and integrated support.
Expand All
2-valve cylinder head
- Cross flow head design that provides excellent breathing from a lower cost two-valve cylinder head
High-pressure common-rail (HPCR) and engine control unit (ECU)
- The HPCR fuel system provides variable common-rail pressure, multiple injections, and higher injection pressures, up to 1600 bar (23,000 psi). It also controls fuel injection timing and provides precise control for the start, duration, and end of the injection
Fixed geometry turbocharger
- Fixed geometry turbochargers are sized for a specific power range and optimized to provide excellent performance across the entire torque curve. They are also designed to maximize fuel economy between the engine's rated speed and peak torque.
Multiple injection strategy
- The new HPCR fuel system and engine control unit (ECU) allow for multiple fuel injections. The number of fuel injections, based on speed and load, help contribute to lower combustion temperatures, which reduce the formation of NOx and particulates. The multiple injection strategy also provides an added benefit of noise reduction
John Deere electronic engine controls
- PowerTech E engines offer electronically controlled fuel systems with improved cold-start performance, precise engine speed control, torque curve shaping and more. Because these systems have less need for redundant sensors, add-on electronic governors, and shutdown devices - they result in a lower total installed cost.
Engine performance
- New power bulge feature
- Increased low-speed torque
- New higher-peak torque ratings
- Faster torque rise
- Lower-rated speeds available for reduced noise and improved fuel economy
Compact size
- Mounting points are the same as Tier 2/Stage II engine models
Additional features
- Self-adjusting poly-vee fan drive
- Forged-steel connecting rods
- Replaceable wet-type cylinder liners
- Either-side service
- 500-hour oil change
- Standard gear auxiliary drive
Specifications
Expand All
Emissions Certifications
- Less Regulated
- Tier 3
- Stage IIIA equivalent
General Engine Data
- Model
- 4045TF285
- Number of cylinders
- 4
- Displacement-- L (cu in)
- 4.5 (275)
- Bore and Stroke-- mm (in)
- 106 x 127 (4.17 x 5.00)
- Compression Ratio
- 19.0:1
- Engine Type
- In-line, 4-Cycle
- Aspiration
- Turbocharged
- Length - mm (in)
- 867 (34.1)
- Width-- mm (in)
- 680 (26.8)
- Height-- mm (in)
- 1055 (41.5)
- Weight, dry - kg (lb)
- 491 (1082)
Performance Data Range
- Heavy Duty - Rated power/Rated speed
- 63.6-74 kW (85-99 hp) @2200-2400 rpm
- Heavy Duty - Peak power
- 65-74 kW (87-99 hp) @2000-2400 rpm
- Heavy Duty - Power bulge
- 0-3 % @1900 rpm
- Heavy Duty - Peak torque
- 353-354 N·m (260-261 ft-lb) @1600 rpm
- Heavy Duty - Torque rise
- 20-29%
