4045TF270

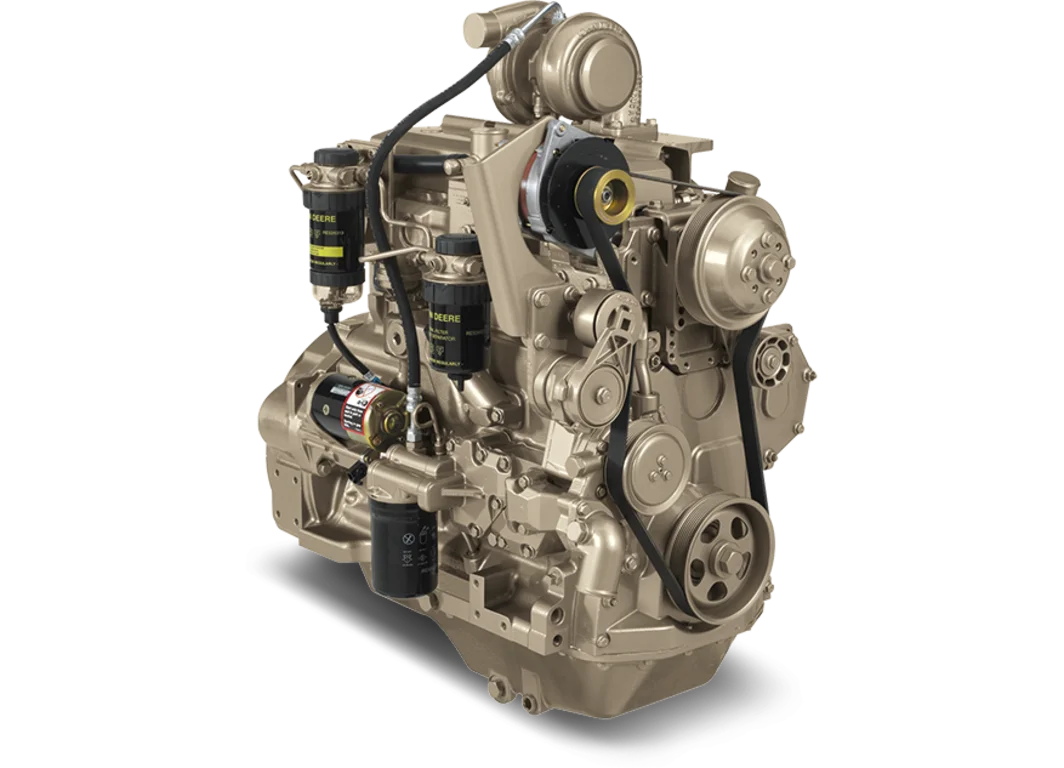

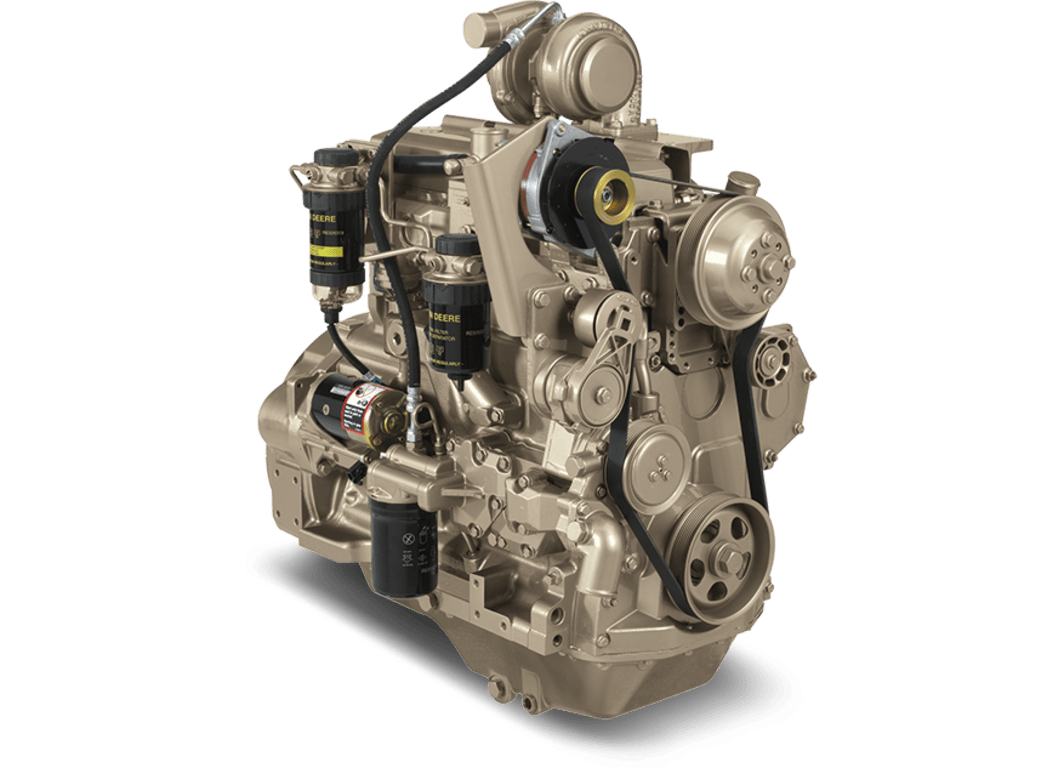

4.5L Generator Drive Engine
Nothing Runs Like a Deere™
- PowerTech™ M
- Standby: 61 kW (82 hp) @ 1500 rpm
- Prime: 55 kW (74 hp) @ 1500 rpm
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
See how the 61 kW (82 hp) EU Stage II John Deere 4045TF270 generator drive diesel engine advances the standard of excellence with an electronically controlled or mechanical fuel system in OEM gen-set applications.
Expand All
Dynamically balanced crankshaft
- Crankshafts are formed from nodular iron
Forged-steel connecting rods
- Unique 45-degree design permits the use of larger crankshaft connecting-rod bearings for increased durability
Mechanical rotary fuel pump
- The timing and fuel injection pressures are optimized to maximize performance and fuel economy at a given rated speed
Self-adjusting poly-vee fan drive
- Self-adjusting, eight-groove, poly-vee fan drive provides multiple fan drive ratios and fan heights that can be matched to specific application requirements
- Poly-vee design provides more than twice the drive capacity of comparable vee-belts
Replaceable wet-type cylinder liners
- Provides excellent heat dissipation
- Precision machined for long life
Either-side service
- Engine installation and maintenance simplified and convenient by providing dipstick and oil filter options on both sides of the engine
500-Hour oil change
- Customers save significant costs on oil, filters and labor with a 500-hour oil change interval
Fuel system controls
- Proven and reliable mechanical governor
- 12V or 24V electric shutoff
Mounting points
- Standard front and side mounting points provide easy installation and application flexibility
Specifications
Expand All
General Engine Data
- Model
- 4045TF270
- Number of cylinders
- 4
- Displacement-- L (cu in)
- 4.5 (275)
- Bore and Stroke-- mm (in)
- 106 x 127 (4.17 x 5.00)
- Compression Ratio
- 17.0:1
- Engine Type
- In-line, 4-Cycle
- Aspiration
- Turbocharged
- Length - mm (in)
- 860 (33.9)
- Width-- mm (in)
- 612 (24.1)
- Height-- mm (in)
- 994 (39.1)
- Weight, dry - kg (lb)
- 396 (873)
Performance Data Range
- Hz (rpm)
- 50 ( 1500 )
- Generator Efficiency %
- 88-92
- Power Factor
- 0.8
- Engine power - Prime kW
- 55
- Engine power - Prime hp
- 74
- Engine power - Standby kW
- 61
- Engine power - Standby hp
- 82
- Rated Fan Power - kW
- 2
- Rated Fan Power - hp
- 2.7
- Calculated generator set output - Prime kWe
- 47-49
- Calculated generator set output - Prime kVA
- 58-61
- Calculated generator set output - Standby kWe
- 51-54
- Calculated generator set output - Standby kVA
- 64-68
Emissions Certifications
- EU Stage II
