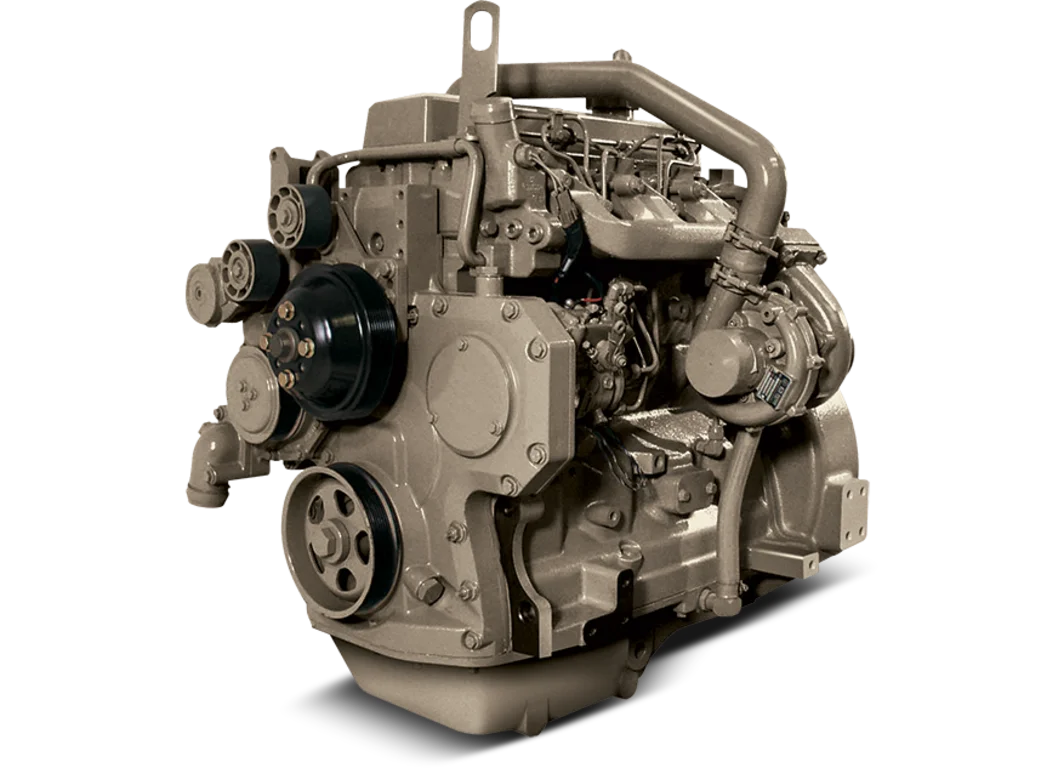

4045TF270
4.5L Industrial Diesel Engine
Nothing Runs Like a Deere™
- 4.5L PowerTech™
- 63 - 74 kW (84 - 99 hp)
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
Get details on 84 to 99 hp, 63 to 74 kW John Deere 4045TF270 industrial diesel engines for OEM equipment, including features, specs, and integrated support.
Expand All
Dynamically balanced crankshaft
- Crankshafts are formed from nodular iron
Forged-steel connecting rods
- Unique 45-degree design permits use of larger crankshaft connecting-rod bearings for increased durability
Self-adjusting poly-vee fan drive
- Self-adjusting, eight-groove, poly-vee fan drive provides multiple fan drive ratios and fan heights that can be matched to specific application requirements
- Poly-vee design provides more than twice the drive capacity of comparable vee-belts
Replaceable wet-type cylinder liners
- Provides excellent heat dissipation
- Precision machined for long life
Either-side service
- Engine installation and maintenance simplified and convenient by providing dipstick and oil filter options on both sides of the engine
500-Hour oil change
- Customers save significant costs on oil, filters and labor with a 500-hour oil change interval
Standard gear auxiliary drive
- Standard gear auxiliary drive produces up to 50 hp (37 kW) for gear-driven accessories
Mounting points
- Standard front and side mounting points provide easy installation and application flexibility
Optional engine-balancer shafts
- Provides smooth engine operation
Specifications
Expand All
Emissions Certifications
- CARB
- EPA Tier 2
- EU Stage II
General Engine Data
- Model
- 4045TF270
- Number of cylinders
- 4
- Displacement-- L (cu in)
- 4.5 (275)
- Bore and Stroke-- mm (in)
- 106 x 127 (4.17 x 5.00)
- Compression Ratio
- 17.6:1
- Engine Type
- In-line, 4-Cycle
- Aspiration
- Turbocharged
- Length - mm (in)
- 860 (33.9)
- Width-- mm (in)
- 612 (24.1)
- Height-- mm (in)
- 994 (39.1)
- Weight, dry - kg (lb)
- 396 (873)
Performance Data Range
- Intermittent - Rated power/Rated speed
- 63-74 kW (84-99 hp) @2500 rpm
- Intermittent - Peak power
- 63-74 kW (84-99 hp) @2500 rpm
- Intermittent - Peak torque
- 333-369 N·m (246-272 ft-lb) @1000-1400 rpm
- Intermittent - Torque rise
- NA
