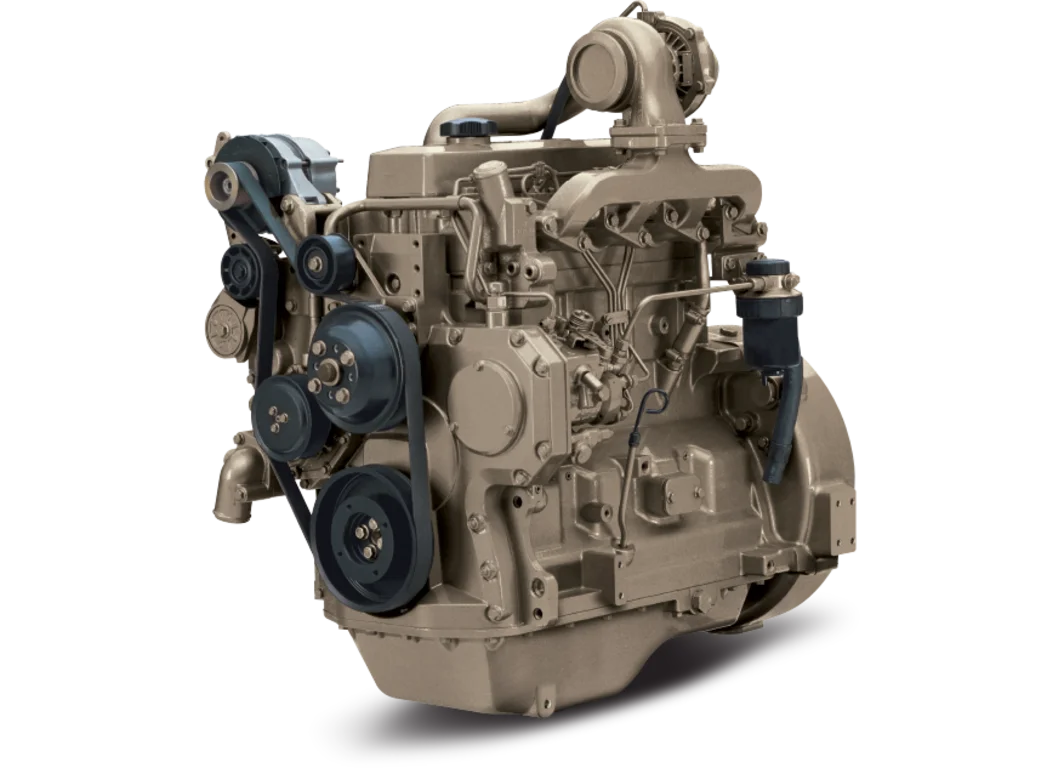

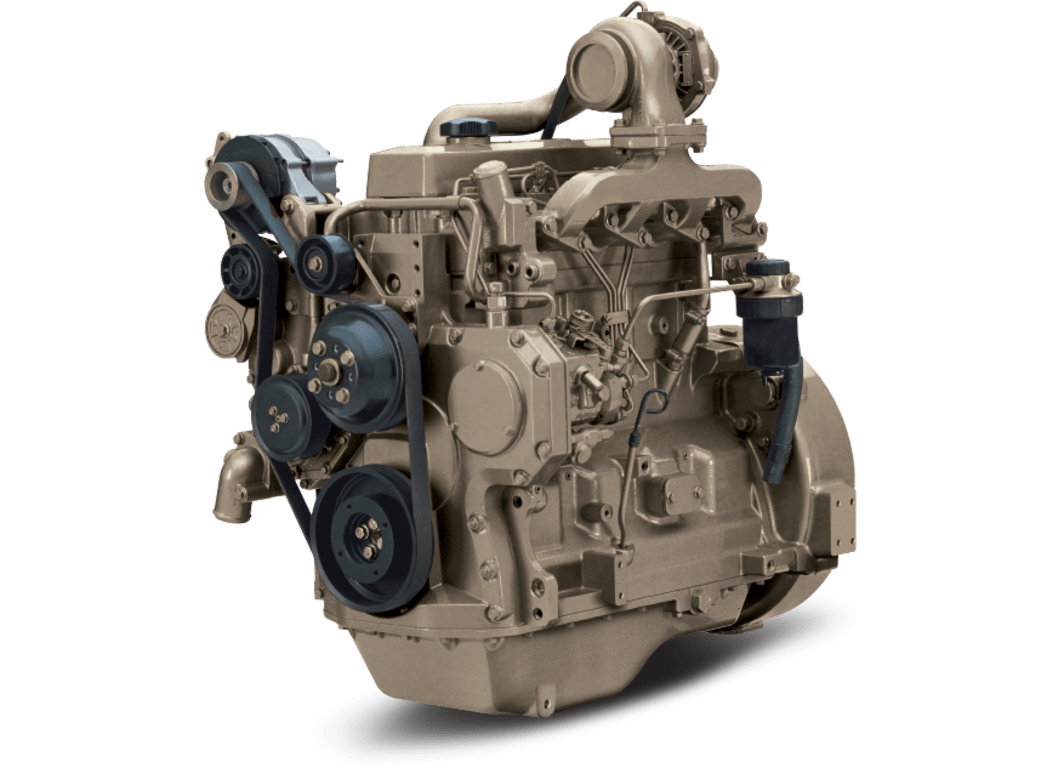

4045TF250
4.5L Generator Drive Engine
Nothing Runs Like a Deere™
- PowerTech™ M
- Standby: 70-100 kW (94-134 hp)
@1500-1800 rpm - Prime: 63-90 kW (84-121 hp)
@ 1500-1800 rpm - Dual frequency available
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
See how the 70-100 kW (94-134 hp) John Deere 4045TF250 generator drive diesel engine advances the standard of excellence with an electronically controlled or mechanical fuel system in OEM gen-set applications.
Expand All
Dynamically balanced crankshaft
- Induction-hardened journals for long hours of reliable service
- Robust design to drive machinery from the front of the crankshaft
- Supported by five main bearings
Forged-steel connecting rods
- 45-degree connecting rod/cap-joint design allows the use of large connecting rod bearings for increased durability
Replaceable wet-type cylinder liners
- Provide excellent heat dissipation
- Precision machined for long life
- Rebuild to original specifications
Smooth operation
- Smooth vibration with full length engine balancers
Easy to apply, easy to install
- Front and rear engine mounting pads on the side of the block facilitates installation
- Either-side service for filters and service points simplify installation and packaging
- All connection points in common locations make it easy to install or package
Compact size
- Short length is ideal for both skid and packaged installations
- High mount or low mount turbocharger position to meet packaging requirements
World-class performance
- Excellent fuel economy and low oil consumption
Fuel system controls
- Proven and Reliable Mechanical Governor
- 3-5% Droop Governing
- 12V or 24V Electric Shutoff
Specifications
Expand All
General Engine Data
- Model
- 4045TF250
- Number of cylinders
- 4
- Displacement-- L (cu in)
- 4.5 (275)
- Bore and Stroke-- mm (in)
- 106 x 127 (4.17 x 5.00)
- Compression Ratio
- 17.0:1
- Engine Type
- In-line, 4-Cycle
- Aspiration
- Turbocharged
- Length - mm (in)
- 861 (33.9)
- Width-- mm (in)
- 597 (23.5)
- Height-- mm (in)
- 980 (38.6)
- Weight, dry - kg (lb)
- 396 (873)
Performance Data Range
- Hz (rpm)
- 50 ( 1500 )
- Generator Efficiency %
- 88-92
- Power Factor
- 0.8
- Engine power - Prime kW
- 63
- Engine power - Prime hp
- 84
- Engine power - Standby kW
- 70
- Engine power - Standby hp
- 94
- Rated Fan Power - kW
- 2.5
- Rated Fan Power - hp
- 3.4
- Calculated generator set output - Prime kWe
- 53-56
- Calculated generator set output - Prime kVA
- 66-70
- Calculated generator set output - Standby kWe
- 59-62
- Calculated generator set output - Standby kVA
- 74-78
Emissions Certifications
- Non-Emissions Certified
