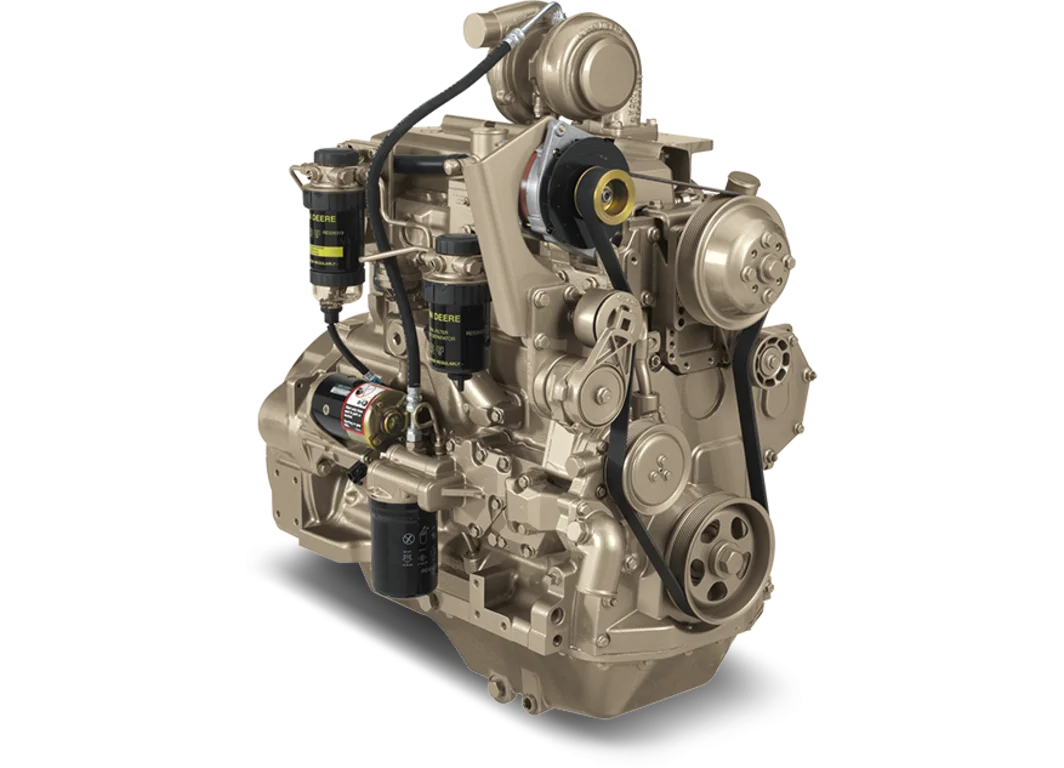

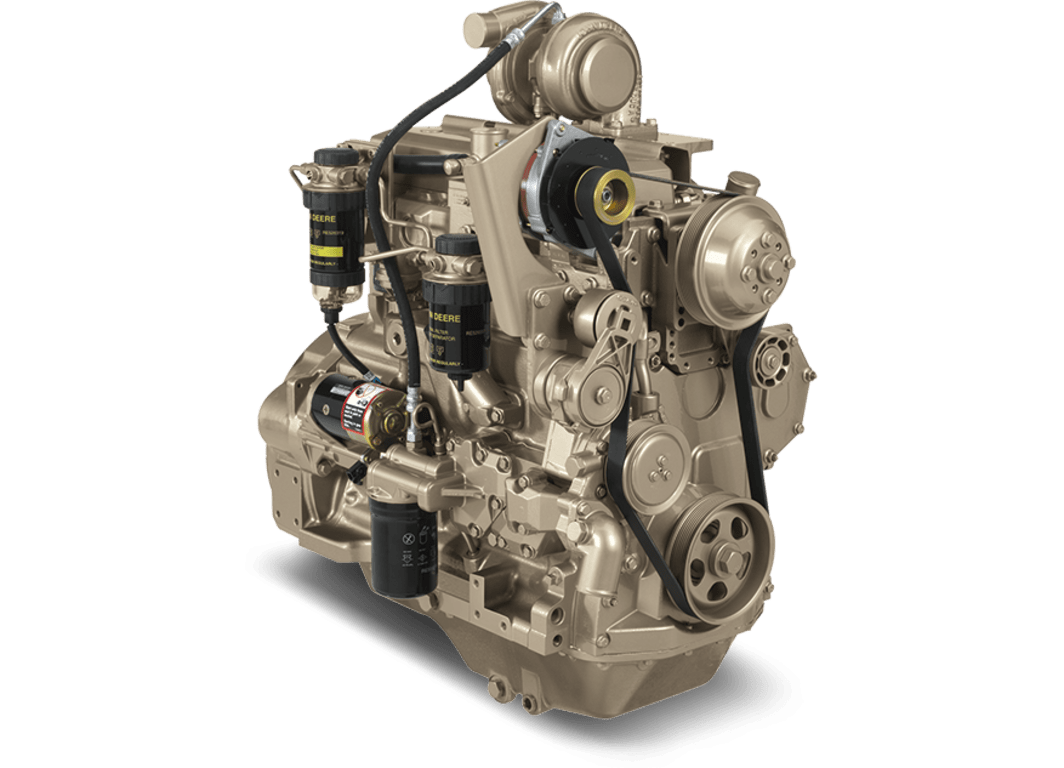

4045HFG82
4.5L Generator Drive Engine
Nothing Runs Like a Deere™
- PowerTech™ E
- Standby: 83-126 kW (111-169 hp)
@ 1500 -1800 rpm - Prime: 76-115 kW (102-154 hp)
@ 1500 - 1800 rpm - Dual frequency available
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
See how the 83-126 kW (111-169 hp) EU Stage III A John Deere 4045HFG82 generator drive diesel engine with fixed geometry turbocharger can provide excellent performance across the entire torque for OEM gen-set applications.
Expand All
Fixed geometry turbocharger
- Fixed geometry turbochargers are sized for a specific power range and optimized to provide excellent performance across the entire torque curve. They are also designed to maximize fuel economy between the engine's rated speed and peak torque.
High-pressure common-rail (HPCR) and engine control unit (ECU)
- The HPCR fuel system provides variable common rail pressure, multiple injections, and higher injection pressures, up to 1,600 bar (23,000 psi). It also controls fuel injection timing and provides precise control for the start, duration, and end of injection.
2-valve cylinder head
- Cross-flow head design provides excellent breathing from a lower-cost 2-valve cylinder head.
Air-to-air aftercooled
- This is the most efficient method of cooling intake air to help reduce engine emissions. It enables an engine to meet emissions regulations with better fuel economy and the lowest installed costs.
Compact size
- Horsepower/displacement ratio is best-in-class
- Lower installed cost
- Mounting points are the same as previous engine models
Electronic engine controls
- Electronic engine controls monitor critical engine functions, providing warning and/or shutdown to prevent costly engine repairs and eliminate the need for add-on governing components, all lowering total installed costs.
Dual frequency
- 50 Hz/60 Hz dual frequency is available on these engines and meet EPA Interim Tier 3 and EU Stage III A emissions regulations.
Specifications
Expand All
Emissions Certifications
- EPA Tier 3
- EU Stage III A
General Engine Data
- Model
- 4045HFG82
- Number of cylinders
- 4
- Displacement-- L (cu in)
- 4.5 (275)
- Bore and Stroke-- mm (in)
- 106 x 127 (4.17 x 5.00)
- Compression Ratio
- 19.0 : 1
- Engine Type
- In-line, 4-cycle
- Aspiration
- Turbocharged and air-to-air aftercooled
- Length - mm (in)
- 860 (33.9)
- Width-- mm (in)
- 612 (24.1)
- Height-- mm (in)
- 1039 (40.9)
- Weight, dry - kg (lb)
- 491 (1082)
Performance Data Range
- Hz (rpm)
- 60 ( 1800 )
50 ( 1500 )
- Generator Efficiency %
- 88-92
88-92
- Power Factor
- 0.8
0.8
- Engine power - Prime kW
- 77-115
76-112
- Engine power - Prime hp
- 103-154
102-150
- Engine power - Standby kW
- 85-126
83-123
- Engine power - Standby hp
- 114-169
111-165
- Rated Fan Power - kW
- 10.3-15.5
7.0-9
- Rated Fan Power - hp
- 13.8-20.8
9.4-12.1
- Calculated generator set output - Prime kWe
- 54-96
59-97
- Calculated generator set output - Prime kVA
- 68-120
73-121
- Calculated generator set output - Standby kWe
- 61-107
65-107
- Calculated generator set output - Standby kVA
- 76-133
81-134
