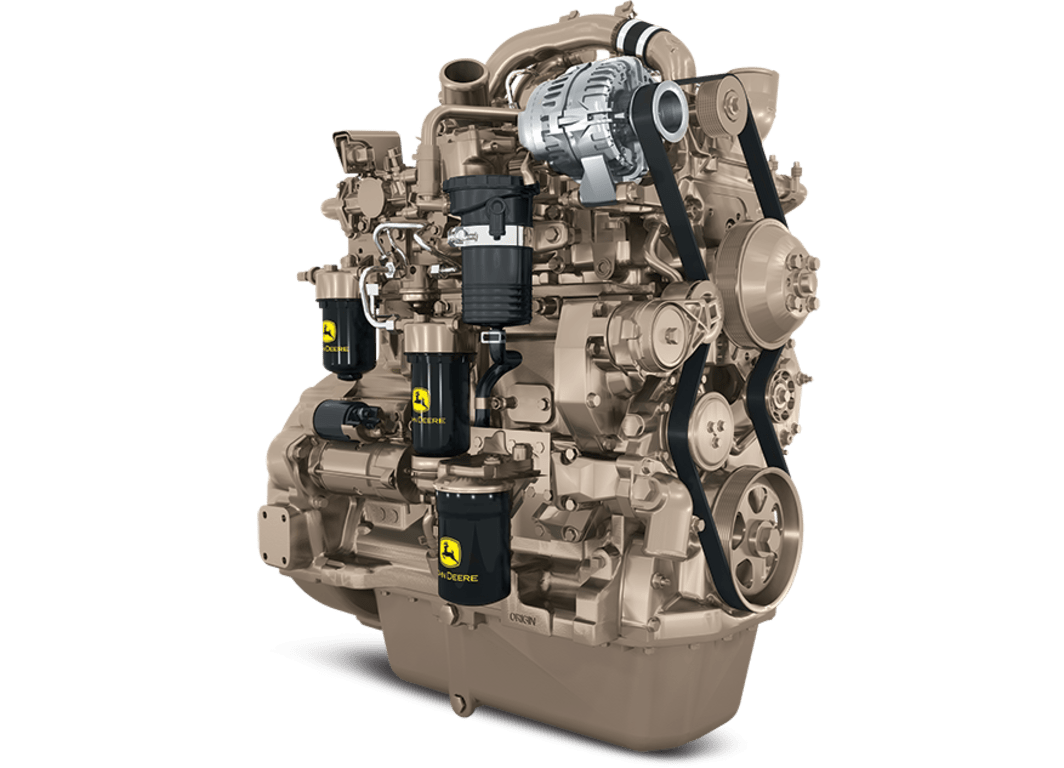

4045HFG06
4.5L Generator Drive Engine
Nothing Runs Like a Deere™
- PowerTech™ PSL
- Standby: 128 kW (172 hp) @ 1800 rpm
- Prime: 117 kW (157 hp) @ 1800 rpm
- Dual frequency available
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
See how the powerful and cost-effective Final Tier 4 John Deere 4045HFG06 generator drive diesel engine with 128 kW (172 hp) can benefit OEM gen-set applications.
Expand All
DOC/SCR aftertreatment
- These engines use diesel oxidation catalyst (DOC) and selective catalytic reduction (SCR) technology to meet Final Tier 4 emission regulations. They meet customer performance without the need for a diesel particulate filter (DPF).
Big engine durability
- Heavy-duty components that are usually found in our larger engines are used throughout our generator drive engine line. Many of our DOC/SCR engines feature top-liner cooling, steel pistons, and variable-speed fan drives.
Series turbochargers
- Fresh air is first drawn into the low-pressure turbocharger(fixed geometry) and compressed to a higher pressure. The compressed air is then drawn into the high-pressure turbocharger (VGT or WGT), where the air is further compressed. The high-pressure air is then routed through a charge air cooler and into the engine's intake manifold. By splitting the work between two turbochargers, both can operate at peak efficiency and at slower rotating speeds —lowering stress on turbocharger components and improving reliability. Series turbocharging delivers more boost pressure than single turbocharger configurations which results in higher power density, improved low-speed torque, and improved high altitude operation.
Cooled exhaust gas recirculation (EGR)
- EGR cools and mixes measured amounts of cooled exhaust gas with incoming fresh air to lower peak combustion temperatures, thereby reducing NOx.
High-pressure common-rail (HPCR) and engine control unit (ECU)
- The HPCR fuel system provides variable common-rail pressure, multiple injections, and higher injection pressures up to 2,500 bar (36,000 psi). It also controls fuel injection timing and provides precise control for the start, duration, and end of injection.
4-valve cylinder head
- The 4-valve cylinder head provides excellent airflow resulting in greater low-speed torque and better transient response time by utilizing a cross-flow design.
Air-to-air aftercooled
- This is the most efficient method of cooling intake air to help reduce engine emissions while maintaining low-speed torque, transient response time, and peak torque. It enables an engine to meet emissions regulations with better fuel economy and the lowest installed costs.
Compact size
- Lower installed cost
- Mounting points are the same as previous engine models
John Deere electronic engine controls
- Enables low idle speed for reduced fuel consumption
- Enables switching between 1500 and 1800 RPM without reprogramming
- Single engine control unit (ECU) manages both the engine and the aftertreatment systems
- Premium software option integrates with equipment or vehicles to reduce engineering and installation costs
Additional features
- Low idle speeds
- Dual frequency 1500/1800 rpm
- Glow plugs
- 500-hour oil change
- Self-adjusting poly-vee fan drive
- Optional factory installed variable-speed fan drive improves fuel economy and reduces noise levels
- RH and LH engine mounted fuel filters Replaceable (wet) cylinder liners
- Low-pressure fuel system with electrical transfer pump and "auto-prime" feature
Specifications
Expand All
Emissions Certifications
- CARB
- EPA Tier 4
General Engine Data
- Model
- 4045HFG06
- Number of cylinders
- 4
- Displacement-- L (cu in)
- 4.5 (275)
- Bore and Stroke-- mm (in)
- 106 x 127 (4.17 x 5.00)
- Compression Ratio
- 17.2 : 1
- Engine Type
- In-line, 4-cycle
- Aspiration
- Turbocharged and air-to-air aftercooled
- Length - mm (in)
- 870 (34.3)
- Width-- mm (in)
- 635 (25.0)
- Height-- mm (in)
- 1130 (44.5)
- Weight, dry - kg (lb)
- 570 (1257)
Doc Dimensions
- Size 3 - Diameter - mm (in)
- 246.6 (9.7)
- Size 3 - Length - mm (in)
- 418 (16.5)
- Size 3 - Weight - kg (lb)
- 19.92 (43.9)
Scr Catalyst Dimensions
- Size 3 - Diameter -mm(in)
- 318 (12.5)
- Size 3 - Weight -kg(lb)
- 34 (75.0)
- Size 3 - Length -mm(in)
- 638 (25.1)
Performance Data Range
- Hz (rpm)
- 60 ( 1800 )
- Generator Efficiency %
- 88-92
- Power Factor
- 0.8
- Engine power - Prime kW
- 117
- Engine power - Prime hp
- 157
- Engine power - Standby kW
- 128
- Engine power - Standby hp
- 172
- Rated Fan Power - kW
- 7.7
- Rated Fan Power - hp
- 10.3
- Calculated generator set output - Prime kWe
- 96-101
- Calculated generator set output - Prime kVA
- 120-126
- Calculated generator set output - Standby kWe
- 106-111
- Calculated generator set output - Standby kVA
- 132-138
