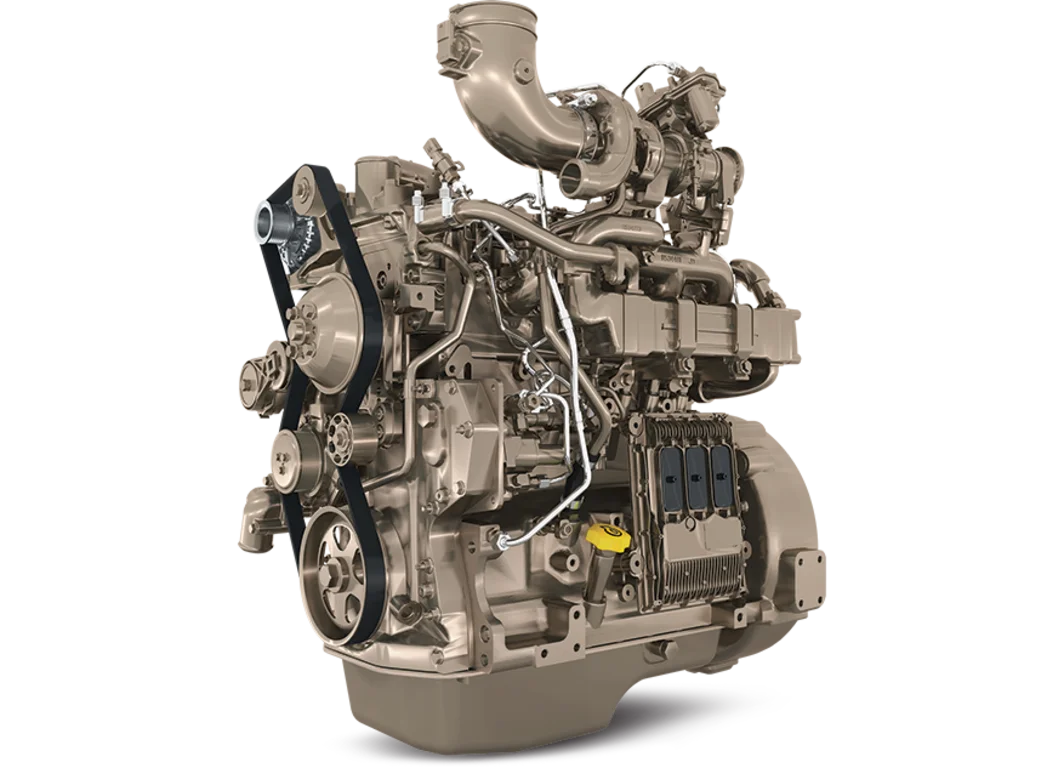

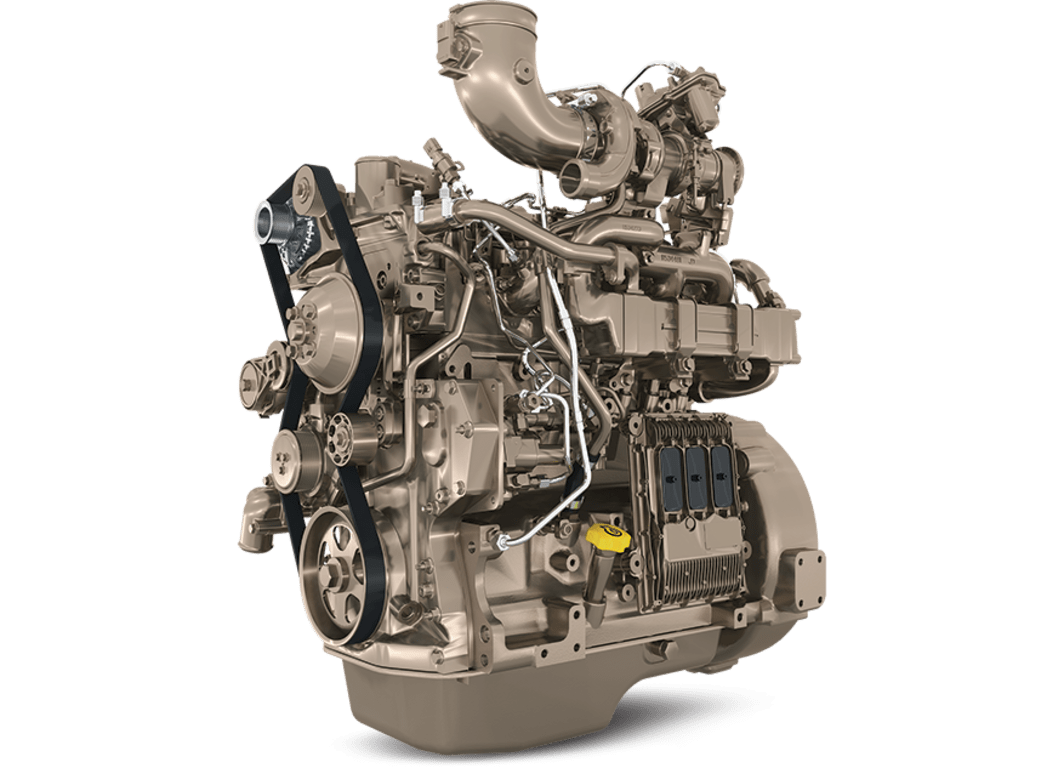

4045HFC04
4.5L Industrial Diesel Engine
Nothing Runs Like a Deere™
- PowerTech™ PWL
- 63-104 kW (85-140 hp)
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
Get details on 85 to 140 hp, 63 to 104 kW John Deere 4045HFC04 industrial diesel engines for OEM equipment, including features, specs, and integrated support.
Expand All
Wastegated turbocharger
- Wastegated turbochargers are designed to develop more airflow at lower engine speeds to improve low-speed torque. The wastegate control device bleeds off a portion of the exhaust flow at higher engine speeds. Wastegated turbos deliver improved transient response and higher peak torque without compromising engine envelope size. They also provide the lowest installed cost across a given power range.
Cooled exhaust gas recirculation (EGR)
- EGR cools and mixes measured amounts of cooled exhaust gas with incoming fresh air to lower peak combustion temperatures, thereby reducing NOx.
Diesel oxidation catalyst (DOC)
- PowerTech PWL 4.5L engines for Final Tier 4/Stage IV produce near-zero levels of particulate matter (PM) without a filter, thanks to an optimized combustion system and engine calibration. Remaining PM and other hydrocarbons are oxidized passively in a flow-through DOC without the need for regeneration.
Selective catalytic reduction (SCR)
- John Deere engines feature an SCR system that utilizes a urea-based additive, sometimes referred to as diesel exhaust fluid (DEF). The ammonia in the urea mixes with engine exhaust gases in the SCR catalyst to reduce NOx — converting it to nitrogen and water vapor.
High-pressure common-rail (HPCR) and engine control unit (ECU)
- The HPCR fuel system provides variable common-rail pressure and higher injection pressures up to 1,975 bar (29,000 psi). It also controls fuel injection timing and provides precise control for the start, duration, and end of injection.
4-valve cylinder head
- The 4-valve cylinder head provides excellent airflow resulting in greater low-speed torque and better transient response time by utilizing a cross-flow design.
Air-to-air aftercooled
- This is the most efficient method of cooling intake air to help reduce engine emissions while maintaining low-speed torque, transient response time, and peak torque. It enables an engine to meet emissions regulations with better fuel economy and the lowest installed costs.
Compact size
- Simplifies installation
- Mounting points are the same as previous models
Engine performance
- Multiple rated speeds to further reduce noise and improve fuel economy
- Higher level of peak torque
- Optional power bulge equal to or better than Interim Tier 4/Stage III B
John Deere electronic engine controls
- Faster engine control unit (ECU) manages both the engine and the aftertreatment system
- Four times the memory, twice the RAM and double the processing speed
- The input/output capability has increased 40%
- Premium software option integrates with equipment or vehicles to reduce engineering and installation costs
Additional features
- Gear-driven auxiliary drives
- 500-hour oil change
- Self-adjusting poly-vee fan drive
- Optional factory installed variable-speed fan drive improves fuel economy and reduces noise levels
- R.H. or L.H. engine-mounted final fuel filters
- Optional low-pressure fuel system with electrical transfer pump and auto-prime feature
Specifications
Expand All
Emissions Certifications
General Engine Data
- Model
- 4045HFC04
- Number of cylinders
- 4
- Displacement-- L (cu in)
- 4.5 (275)
- Bore and Stroke-- mm (in)
- 106 x 127 (4.17 x 5.00)
- Compression Ratio
- 17.0 : 1
- Engine Type
- In-line, 4-cycle
- Aspiration
- Turbocharged and air-to-air aftercooled
- Length - mm (in)
- 870 (34.3)
- Width-- mm (in)
- 650 (25.6)
- Height-- mm (in)
- 1050 (41.3)
- Weight, dry - kg (lb)
- 550 (1213)
Doc Dimensions
- Size 2 - Diameter - mm (in)
- 209.1 (8.2)
- Size 2 - Length - mm (in)
- 431 (17.0)
- Size 2 - Weight - kg (lb)
- 14.9 (32.8)
Scr Catalyst Dimensions
- Size 3 - Diameter -mm(in)
- 318 (12.5)
- Size 3 - Weight -kg(lb)
- 34 (75.0)
- Size 3 - Length -mm(in)
- 638 (25.1)
Performance Data Range
- Intermittent - Rated power/Rated speed
- 63-104 kW (85-140 hp) @ 2200-2400 rpm
- Intermittent - Peak power
- 63-104 kW (85-140 hp) @ 2200-2400 rpm
- Intermittent - Power bulge
- 0-4% @ 2200 rpm
- Intermittent - Peak torque
- 333-540 Nm (246-398 lb-ft) @ 1600 rpm
- Intermittent - Torque rise
- 20-36%
- Heavy Duty - Rated power/Rated speed
- 63-104 kW (85-140 hp) @ 2200-2400 rpm
- Heavy Duty - Peak power
- 63-104 kW (85-140 hp) @ 2200-2400 rpm
- Heavy Duty - Power bulge
- 0% NA rpm
- Heavy Duty - Peak torque
- 333-540 Nm (246-398 lb-ft) @ 1600 rpm
- Heavy Duty - Torque rise
- 33-35%
- Continuous - Rated power/Rated speed
- 63-104 kW (85-140 hp) @ 2200-2400 rpm
- Continuous - Peak power
- 63-104 kW (85-140 hp) @ 2200-2400 rpm
- Continuous - Power bulge
- 0-8% @ 2200 rpm
- Continuous - Peak torque
- 333-540 Nm (246-398 lb-ft) @ 1600 rpm
- Continuous - Torque rise
- 32-33%
