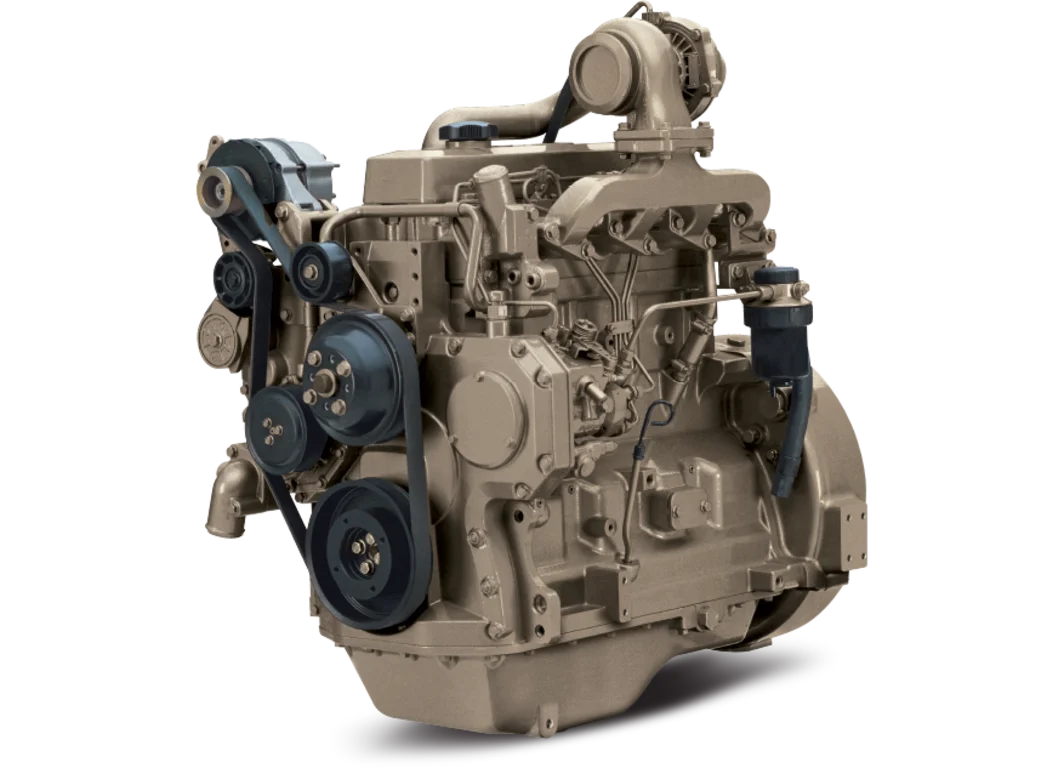

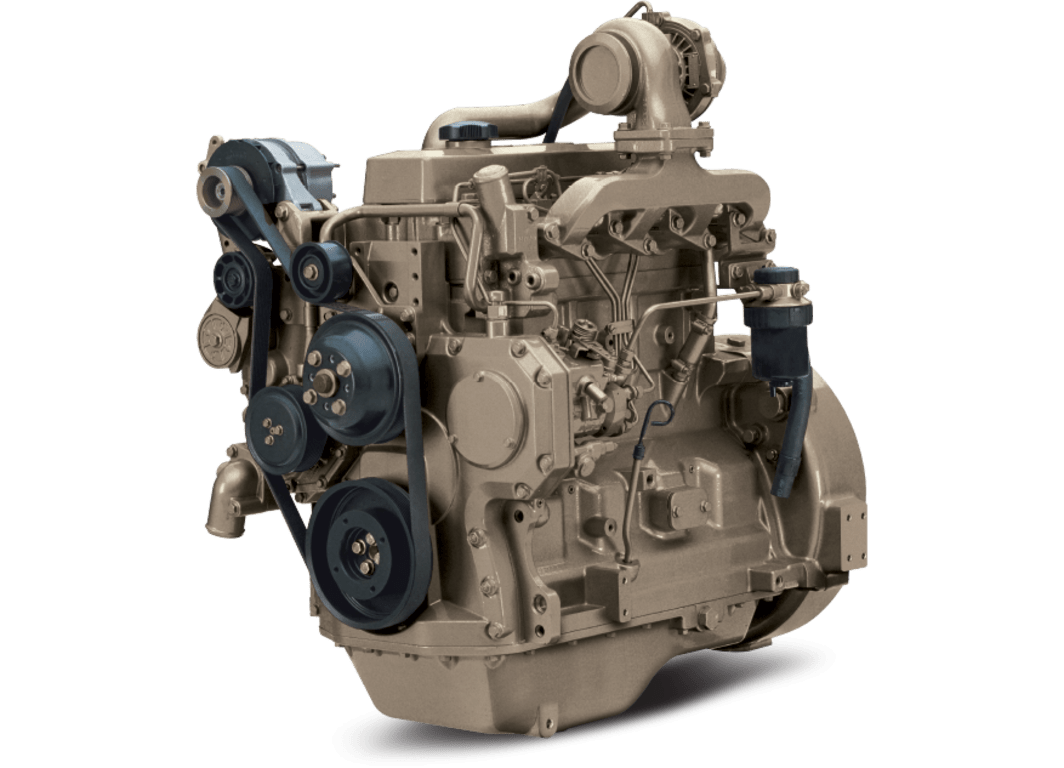

4045HF275
4.5L Generator Drive Engine
Nothing Runs Like a Deere™
- PowerTech™ M
- Standby: 108-117 kW (145-157 hp) @ 1800 rpm
- Prime: 98-106 kW (131-142 hp) @ 1800 rpm
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
See how the 108-117 kW (145-157 hp) Tier 2 John Deere 4045HF275 generator drive diesel engine advances the standard of excellence with an electronically controlled or mechanical fuel system in OEM gen-set applications.
Expand All
Dynamically balanced crankshaft
- Induction-hardened journals for long hours of reliable service
- Robust design to drive machinery from the front of the crankshaft
- Supported by five main bearings
Forged-steel connecting rods
- 45-degree connecting rod/cap-joint design allows the use of large connecting rod bearings for increased durability
Replaceable wet-type cylinder liners
- Provide excellent heat dissipation
- Precision machined for long life
- Rebuild to original specifications
Easy to apply, easy to install
- Front and rear engine mounting pads on the side of the block facilitates installations
- Either-side service for filters and service points
- All connection points in common locations make it easy to install or package
- Engine mounted ECU and electronic speed control simplify installation and packaging
Smooth operation
- Smooth vibration with full length engine balancers
Compact size
- Short length is ideal for both skid and packaged installations
- High mount or low mount turbocharger position to meet packing requirements
World-class performance
- Excellent fuel economy and low oil consumption
Fuel system controls
- Electronically controlled rotary fuel injection pump with variable timing resulting in excellent fuel economy and excellent performance
- Self diagnostics and protection
- 3-5% Droop Governing
- 12V or 24V Electric Shutoff
Specifications
Expand All
Emissions Certifications
- CARB
- EPA Tier 2
General Engine Data
- Model
- 4045HF275
- Number of cylinders
- 4
- Displacement-- L (cu in)
- 4.5 (275)
- Bore and Stroke-- mm (in)
- 106 x 127 (4.17 x 5.00)
- Compression Ratio
- 17.0:1
- Engine Type
- In-line, 4-Cycle
- Aspiration
- Turbocharged and air-to-air aftercooled
- Length - mm (in)
- 867 (34.1)
- Width-- mm (in)
- 637 (25.1)
- Height-- mm (in)
- 979 (38.5)
- Weight, dry - kg (lb)
- 451 (994)
Performance Data Range
- Hz (rpm)
- 60 ( 1800 )
- Generator Efficiency %
- 88-92
- Power Factor
- 0.8
- Engine power - Prime kW
- 98-106
- Engine power - Prime hp
- 131-142
- Engine power - Standby kW
- 108-117
- Engine power - Standby hp
- 145-157
- Rated Fan Power - kW
- 5.4-5.9
- Rated Fan Power - hp
- 7.2-7.9
- Calculated generator set output - Prime kWe
- 82-92
- Calculated generator set output - Prime kVA
- 102-115
- Calculated generator set output - Standby kWe
- 90-102
- Calculated generator set output - Standby kVA
- 113-128
