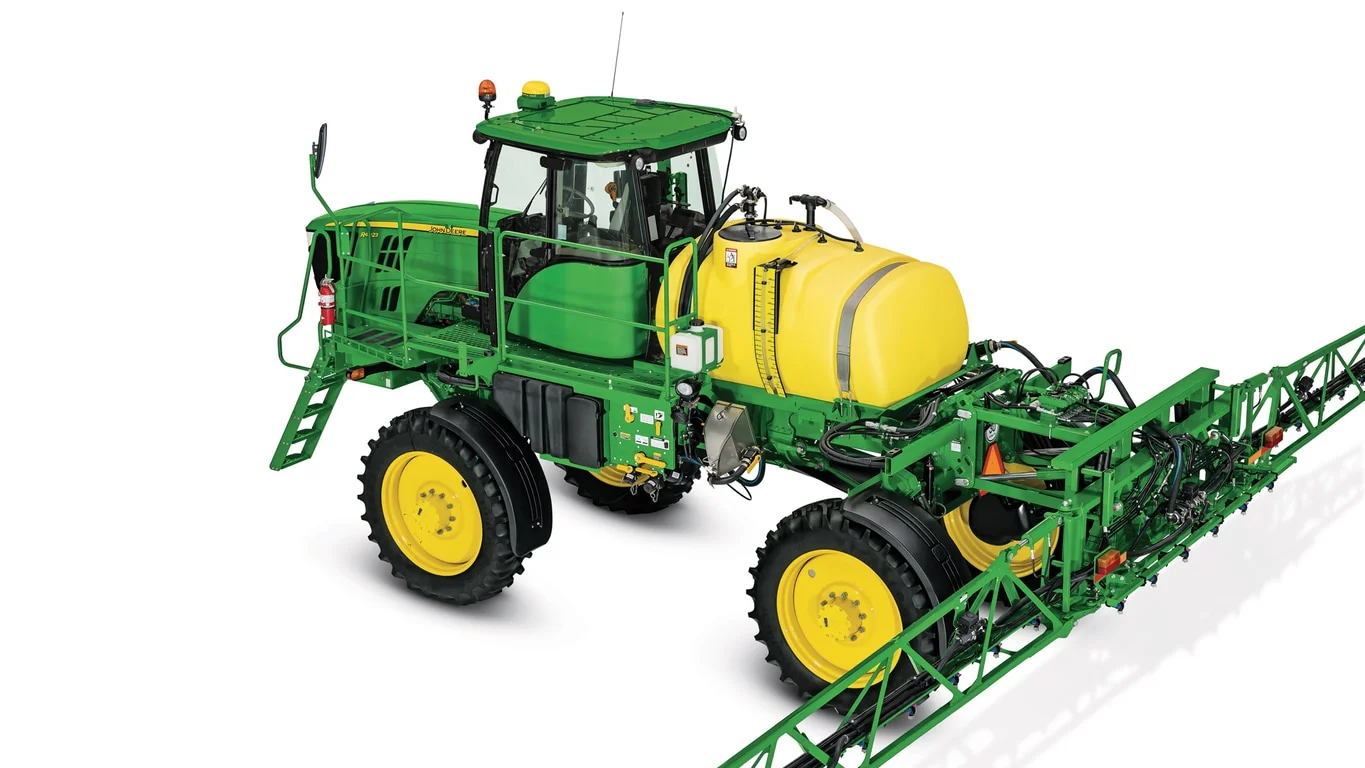

R4023 Sprayer

R4023 spraying in the field

Built with the same kind of innovative thinking as its popular 4 Series siblings, the R4023 Self-Propelled Sprayer combines versatility, productivity, and affordability in a 2271-L (600-gal.) sprayer.

The option of either a wide or narrow axle configuration enables this sprayer to fit a wide range of row spacing needs. Additionally, the R4023 offers key features that provide for a smooth ride that is necessary for those long days in the field.

Equipped with up to a 27.4-m (90-ft) fold feature, the R4023 allows the operator to fold the boom in quickly for headland turns. With the ability to add precision ag productivity boosting features, the R4023 enables more accurate, efficient, and comfortable spraying applications.

Interchangeable inner booms

3D boom structure

The R4023 Sprayer's booms are built with high-strength square tube.

The boom incorporates a strong 3D design. This design gives the boom more strength to resist fore-aft loading generated by starts, stops, and turns, as well as twisting loads caused by folding and unfolding operations.

The boom plumbing and nozzles are set between and up inside the two bottom square tubes of the boom structure. This protects the nozzle bodies from hitting objects that could damage the sprayer or affect the spray pattern.

The R4023 boom comes in an 18.3-m/24.4-m (60-ft/80-ft) or 18.3-m/27.4-m (60-ft/90-ft) configuration. Simply fold in the outer wing and go from spraying at 24.4 m/27.4 m to 18.3 m (80 ft/90 ft to 60 ft). When the outer wing is folded over top, it is supported by cradles to ensure it remains in place and secure while spraying in the 18.3-m (60-ft) configuration in rough fields.

Increased boom sections provide the operator more precise application:

• 24.4-m (80-ft) boom-five sections
• 27.4-m (90-ft) boom-seven sections

The breakaway ends of the boom offer the operator protection against damaging the boom if the boom unexpectedly hits an obstacle. The breakaway section of the boom uses a design that holds the breakaway from breaking backward while operating normally in the field, but when something is contacted, it moves rearward and out of the way to prevent major damage.

Each breakaway section resets using a spring, and then resets back to the spray position.

When the booms are folded in, the transport cradles on the machine support a large portion of the boom that, in turn, spreads out the stress.

While in transport position, the booms are cradled so that visibility is maximized to either side of the sprayer. By folding the booms flat, visibility is increased and overall height of the machine is not affected.

4.5L (274.6-cu in.) John Deere PowerTech PSS diesel engine

The R4023 Sprayer provides 129 kW (173 hp) with a 5 percent power bulge to 136 kW (182 hp) and 6071 kg/cu m (538 lb-ft) of peak torque to get through tough field conditions.

John Deere PowerTech PSS (two-valve) 4.5L (274.6-cu in.) engine features include:

• Four-cylinder, eight-valve head (two valves per cylinder)
• Cooled exhaust gas recirculation (EGR)
• Exhaust filters
• Selective catalytic reduction (SCR)
• Air-to-air charge air cooler (CAC), aftercooled
• High-pressure common rail (HPCR) fuel injection system
• Series turbocharger

In addition to reducing emissions and lowering engine idle noise, its compact size allows it to fit neatly under the hood for great visibility of the rows passing underneath the operator.

An increase in fuel tank size makes it possible to spray for up to 16 hours without refueling. By equipping the R4023 Sprayer with a 310-L (82-gal.) fuel tank, the operator will have plenty of fuel to spray for a full day.

The R4023 offers two factory installed shock solutions to accommodate various field conditions. For optimal comfort in rough or uneven terrain conditions such as no-till or stripped fields, a Soft Shock option is now available.

The Soft Shock takes the place of the adjustable shock dampener used on the 4630 and is offered as a factory-installed option. This fixed shock provides 50 percent less dampening force which allows for a smooth ride up to 32.2-km/h (20-mph) spray speed in uneven field conditions. The Soft Shock may also provide a more responsive feel for operators in turns or when starting/stopping quickly.

NOTE: The standard shock option is unchanged from previous models and is recommended for general use.

Boom sensor

For the highest level of spray accuracy with less drift and reduced risk of boom damage, look to the BoomTrac Pro 2 automatic boom-height control system.

Thanks to the addition of an inertia-monitoring sensor that helps correct for chassis roll, BoomTrac Pro 2 offers up to 22 percent greater spray accuracy (composite score over a variety of terrains) compared to the previous BoomTrac Pro system, and a five time increase in the amount of time the boom maintains its target height, which is a real plus in rough or hilly conditions. Along with the improved accuracy and reduced drift, operators will appreciate having one less function to perform and one less thing to worry about.

NOTE: BoomTrac Pro 2 is required on all carbon fiber booms.

Cast mount for connecting rods

The suspension design on the R4023 Sprayer uses a four-bar link system along with an air bag and shock combination to provide a comfortable ride.

Two large air springs sit atop each axle, similar to those used on over-the-road trucks and other John Deere sprayers. These air springs are dampened with oil-filled shocks to smooth the ride.

Connecting rods link the axle to the large cast mount that is bolted to the C-channel frame with a Huck® bolt. The axle-connecting rods are parallel for vertical motion and cross linked for lateral stability.

Air bag/shock suspension

The R4023 Sprayer's standard suspension provides for 152 mm (6 in.) of travel at the air bag. The air springs are underneath the frame; therefore, visibility of the rows passing underneath is free of suspension components.

The air springs are adjusted by adding or removing air through a standard air-stem valve on top of each spring or, if the sprayer is equipped with auto air-spring leveling, the air springs will inflate to the optimum level for the best-possible ride.

Auto air-spring leveling system adjusts for optimal field performance

Wide axle, 234 cm to 307 cm (92 in. to 121 in.)

Narrow axle, 183 cm to 224 cm (72 in. to 88 in.)

Two axle widths are available to best fit a variety of cropping row widths.

The narrow width axle has a tread width from 183 cm to 224 cm (72 in. to 88 in.) and a clearance of 112 cm (44 in.). The wide axle has a tread width from 234 cm to 307 cm (92 in. to 121 in.) and a clearance of 127 cm (50 in.). Axle range for wide machines varies slightly depending on the option (hydraulic vs. manual tread adjust) that is being used.

NOTE: In order to achieve 229-cm (90-in.) tread spacing, IF320/80R42 tires must be used with AN401678 rims. Please see your local John Deere Dealer for more information.

With these tread spacings, the R4023 Sprayer holds an impressive 46-54 weight split when unfolded, fully loaded. This weight split helps to reduce compaction through the field and keeps the power to the ground.

The wide axle is ideal for the Midwest grain farmer. With the wide axle option, the operator can straddle three rows at 76.2-cm (30-in.), 81.3-cm (32-in.), 86.4-cm (34-in.), 91.4-cm (36-in.), 96.5-cm (38-in.), or 101.6-cm (40-in.) spacing or four rows at 76.2-cm (30-in.) spacing.

The narrow axle is ideal for the cotton or specialty crop farmer. With the narrow axle option, the operator can straddle two rows at 91.4-cm (36-in.), 96.5-cm (38-in.), or 101.6-cm (40-in.) row spacing.

Having the optimal weight distribution results in a lighter footprint leaving less compaction and less damage to the field, allowing the operator to get into the field earlier.

The R4023 Sprayer was built with the optimal weight distribution.

R4023 operator station

When operators first enter the R4023 cab, they notice that there have been significant changes made from previous years. Key sprayer controls are more easily accessible to the operator on the redesigned CommandARM console, and the multi-function lever has a more ergonomic fit and feel.

The multi-function lever has six reconfigurable buttons, a scroll to select speed range, and allows operators to better manage their headlands with the HMS™ headland management system button.

To finish out the upgrades, the GreenStar™ display has been upgraded to a faster, more user-friendly 4600 CommandCenter™ Display, which allows operators to efficiently capture, manage, and transfer data.

Connect Mobile actual rate map and pressure map in split screen gives the operator deeper understanding of machine performance

Connect Mobile overview

John Deere Connect Mobile is a solution that utilizes an Apple® iPad® tablet in the cab that provides the operator a better understanding of the sprayer’s performance. Connect Mobile documents and displays several sprayer performance attributes, helping the operator monitor and more easily detect problems that can occur while spraying. Connect Mobile also has a common user interface that makes it easy to use between different pieces of John Deere equipment. Once the job is done, the iPad with the spraying data can be utilized to perform basic crop scouting activities in the field.

Spraying attributes

Monitor key performance indicators in map layers and dashboard tiles such as:

• Actual rate
• Rate deviation
• Pressure
• Ground speed
• Droplet size
• Target rate
• Flow rate
• Tank volume
• Productivity
• Fuel rate

In base equipment

Connect Mobile hardware is factory installed on all model year 2022 and newer 408R, 410R, 412R, 612R, 616R, 400 and 600 Series Sprayers and dry machines well as model year 2017 to 2022 R4030, R4038, R4045, and R4060 Sprayers, making it easy to get started with Connect Mobile.

Learn more about Connect Mobile in the Field and Crop Solutions section within the Precision Ag Technology product line and how it can improve the quality of a spraying job.

iPad and Apple are trademarks of Apple Inc.

Turn compensation mode

Individual nozzle control mode

Fertilizers and crop protection products are too expensive to waste, and seed is too valuable to risk over- or under-treating. To help make sure your solution is getting to the crop at exactly the right rate and droplet size across a wider range of speeds, look to ExactApply nozzle control system.

The heart of the ExactApply system is a six-nozzle turret with multiple modes of operation to help maintain target rate and pressure. From the cab, operators can choose:

• 15-Hz pulse-width modulation (PWM) pulses one solenoid for more consistent pressure and droplet size over a wider range of ground speeds and application rates.
• 30-Hz PWM pulses both solenoids at 15 Hz for more thorough coverage during high-volume applications, like liquid fertilizer.
• AutoSelect A/B mode automatically switches between two nozzles to maintain a constant spray pressure while you’re spraying conventionally.
• Turn compensation mode decreases the spray rate on the inside of a turn while increasing the rate on the outside, ensuring consistent application across the entire width of the boom.
• Individual nozzle control minimizes overlap by controlling spray application at the individual nozzle level, not in 2.4- to 3.35-m (8- to 11-ft) section widths.

By maintaining a target rate and pressure over a wider range of speeds, ExactApply lets you cover up to 20 more acres per hour (based on a 3.2-km/h [2-mph] increase in operating speed) with more consistent spray deposition, saving you input costs and preserving more of your crop’s yield potential.

ExactApply is available as a factory-installed option, as well as through precision upgrades and aftermarket attachments. Precision upgrades for ExactApply are available for 400, 600, and 4 Series Sprayer models. ExactApply aftermarket attachment kits are available for 4 Series Sprayer models.

Monitor machines on the go and make adjustments when it matters most

Connectivity provides data that drives better decisions

Producer needs and their success is John Deere’s focus. As functionality becomes more accepted and even expected, that functionality moves from being optional to being included with the machine. In model year 2019, AutoTrac™ guidance and documentation was included on machines equipped with a 4600 CommandCenter™ Display. Five years of JDLink is also included with the purchase of all model year 2020 and newer machines equipped with a 4G LTE Modular Telematics Gateway (MTG). The functionality of JDLink on these machines includes everything that was previously included with JDLink Access + Remote Display Access (RDA) and JDLink Connect subscriptions. This added connectivity enables customers to realize the value of a connected machine more easily.

• Easily transfer data and collaborate with trusted advisors to plan your field work quickly. You or your employees can spend more time in the field working rather than sitting on a headland setting up the technology. With a connection between John Deere Operations Center and your machines, changes to field plans occur as needed. Those changes may include changes in varieties, application rates, or machines.
• Better enable data-driven decisions. By using the insights gathered from machines along with the tools in Operations Center (e.g., Field Analyzer, Field Analyzer Beta, and Machine Analyzer) you can understand how your fields are performing and what field plans had an impact. John Deere Operations Center gives you access to more than 100 connected software tools, so you have the ultimate choice of popular industry tools. And, if you don't want to analyze the data yourself, you can share the data with those that help you make decisions to provide the insights you need.
• Report work completed accurately and timely for compliance and billing purposes.
• Increase machine uptime with Connected Support. Your local John Deere dealer can provide remote monitoring services and diagnostics to help keep your machines up and running, reduce your maintenance expenses through early detection of problems, and provide over-the-air software updates for displays, receivers, and controllers.
• Get quick in-field support with RDA. You can monitor your machines from your office computer or a mobile device on the go.
• Remotely manage machines and employees to give you insights into how they are performing. If machines are being underutilized or field operations are not being properly conducted, you can put plans in place to improve productivity.
• Quickly make changes to improve your harvesting operations by remotely viewing and adjusting combine settings.

To use JDLink, the following is required:

• MTG
• JDLink connectivity service
• A John Deere Operations Center account to access machine and agronomic data

Connected Support technology

When you buy John Deere equipment, you expect reliability. You also know that problems can happen, and a product is only as good as the support behind it. That’s why John Deere equipment is prepared with technology that senses potential issues and can alert you and your dealer promptly—in the cab or anywhere you are.

John Deere Connected Support is a revolutionary change to support that leverages technology and the connectivity of JDLink™ telematics to prevent downtime and resolve problems faster. These tools decrease downtime by an average of 20 percent, enabling faster responses to unexpected problems and reducing technician trips to your machine. For some issues, unplanned downtime can even be prevented altogether through prediction of the issue.

With your permission, John Deere Connected Support:

• Keeps you running by monitoring machine health and promptly alerting you and your dealer of issues
• Saves time by remotely viewing in-cab displays, reducing trips to the machine
• Reduces or even eliminates technician trips to a machine through remote diagnostic and remote software reprogramming capabilities
• Connects experts with the information needed to respond to downtime faster and prevent it altogether

With more than a decade of experience leveraging connectivity to solve problems, no one else has the experience, tools, and knowledge to keep you running as John Deere and your John Deere dealer can. Connected Support is an in-base feature on all John Deere products with factory- or field-installed JDLink.

Rated engine power

Maximum engine power

Solution system - Capacity

2300 L
600 gal.

Rinse tank capacity

265 L
70 gal.

Boom length options/Material

18/24.4 or 18/27.4 m
60/80 or 60/90 ft
Boom material: Steel

Spray speed range

0 to 32 km/h
0 to 20 mph

Transport speed, maximum

43 km/h
27 mph

Suspension

Air bar/shock suspended

Crop clearance with standard tires

Narrow - 112 cm
44 in.
Wide - 127 cm
50 in.

Total weight (empty solution tank)

Make

Rated engine power

129 kW
173 hp

Maximum engine power

Power bulge

Emissions

Final Tier 4

Number of cylinders

4

Displacement

4.5 L
276 cu in.

Transmission

Alternator

Fuel tank capacity

310 L
82 gal.

Diesel exhaust fluid (DEF) tank capacity

17 L
4.5 gal.

AutoTrac speed, maximum

Capacity

2300 L
600 gal.

Tank material

Polyethylene

Rinse tank capacity

265 L
70 gal.

Solution pump flow

Quick fill size

5.1 cm
2 in.

Rate control make

Automatic section control

John Deere Section Control (optional)

Display

Solution system control

Manual

Fill location

Side fill

Fill pump flow

Chemical injection method

Chemical eductor

Stainless steel

Chemical eductor capacity (size)

20 L
5.5 gal.

Flow meter size

5.1 cm
2 in.

Suction strainer

16 mesh

Pressure strainer

50 mesh

Boom strainer

80 mesh

Boom length options

18/24.4 or 18/27.4 m
60/80 or 60/90 ft

Automatic boom height

BoomTrac Pro - 3 sensor (optional)

Plumbing material

Polypropylene

Boom Material

Steel

Ground height adjustment

38 to 193 cm
15 to 76 in.

Breakaway width

1.83 m
6 ft

Boom sections

Five or seven

Nozzle spacings

Not applicable

Type

Hydrostatic tandem Saur pumps
Pump size is tandem - 75 cc
4.58 cu in.

Drive

Full-time four-wheel drive (4WD)

Shifting

Electrohydraulic (on the go)

Hydraulic reservoir capacity

61 L
16 gal.

Spray speed range

0 to 32 km/h
0 to 20 mph

Transport speed, maximum

43 km/h
27 mph

Type

Dry compatible

No

Suspension

Air bar/shock suspended

Crop clearance with standard tires

Narrow - 112 cm
44 in.
Wide - 127 cm
50 in.

Front tires

IF320/80R42, 380/R80R38, IF380/80R38, or 420/85R34

Rear tires

IF320/80R42, 380/R80R38, IF380/80R38, or 420/85R34

Flotation tires

Hydraulic tread adjust

Manual standard
Hydraulic optional (wide only)

Wheel tread spacing

Narrow - 183 to 224 cm
72 to 88 in.
Wide - 229 to 305 cm
90 to 120 in.

Wheel base

373 cm
147 in.

Turning radius

4.9 m
16 ft

Parking brake

Hydraulic release

Primary brakes

Hydrostatic

Ladder raise/lower

Hydraulic

Total weight with 80-ft boom

8,240 kg
18,165 lb

Total weight with 90-ft boom

Total weight with 100-ft boom

Total weight with 120-ft boom

Total weight with carbon fiber boom (empty solution tank)

Total weight (empty solution tank)

Pressure washer

Air compressor

Standard

Foam marker capacity

Direct injection optional

Remote service tools
