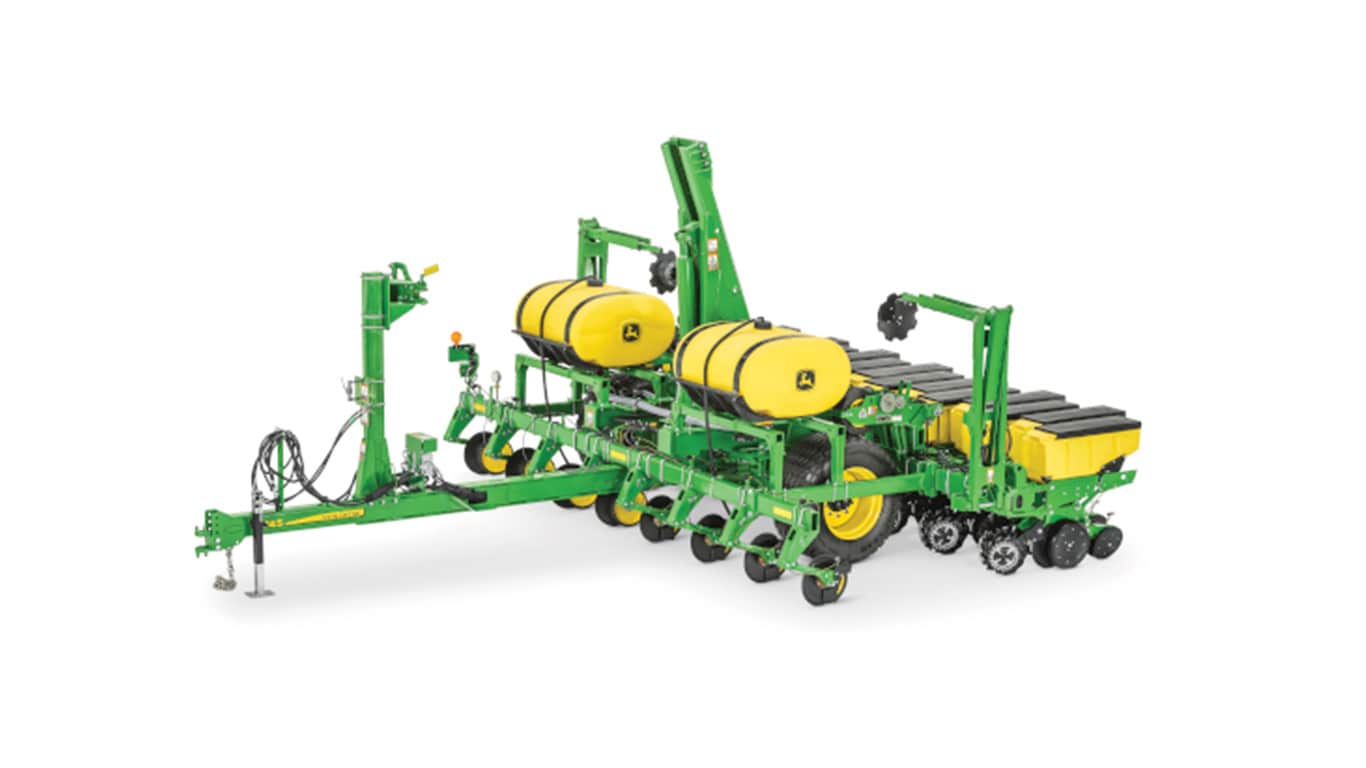

1745 Planter in transport position

Navigate narrow roads, bridges, and field entrances with the narrow transport position of the 1745 Planter.

• Planter follows the standard duals on a tractor
• Typical transport width of 3.71 m (12 ft, 2 in.)*
• Typical transport height of 3.84 m (12 ft, 7 in.)*
  • Main hydraulic cylinder mast can be lowered under 3.68 m (12 ft) for storage
• Row-units fold toward the center of the road for stability

• Comparable non-folding 1785 Planter has a typical transport width of 6.96 m (22 ft, 10 in.).

*NOTE: Transport dimensions may vary based on options. Product features are based on published information at the time of publication and are subject to change without notice.

1745 Planter partway through the fold cycle

Minimize non-productive planting time by folding the planter from the cab of the tractor.

• Complete the unfold and fold cycles in less than one minute.
• By utilizing a frame control box, the base planter requires one selective control valve (SCV). Folding, raise/lower, and markers can all be tied to one hydraulic circuit.

 If you are looking to split apply fertilizer, the 1745 Planter offers granular fertilizer with frame-mounted single disk openers.

• Dry fertilizer with single-disk, frame-mounted offset openers is available with a storage capacity of 1,200 L (42.4 cu ft).
• Fertilizer application is on the front rank only, with 76.2-cm (30-in.) spacing.
• The fertilizer system is driven by a tire contact drive.

1745 Planter

The 1745 Planter comes in two main row-unit configurations with the option of keeping it simple or adding more advanced features.

• 8-row, 76.2-cm (30-in.) configuration
• 16-row, 38.1-cm (15-in.) configuration
• Select between mechanical or vacuum meters.
• Dry fertilizer is available on all non-Central Commodity System (CCS™) models.
• Select more advanced options like the Pro-Shaft™ cable drive system, RowCommand™ row clutches, CCS, and the SeedStar™ XP monitoring system.

1745 Planter with CCS

John Deere 4455 Tractor and 1745 Planter

The simple design of the 1745 Planter makes it compatible with a wide range of tractors.

• Non-vacuum machine requires one selective control valve (SCV) when markers are tied to lift.
• Vacuum machine requires two SCVs when markers are tied to lift.
• There is a minimum drawbar horsepower requirement of 86.5 kW (116 hp) on a 15-row machine.
• There is a minimum drawbar horsepower requirement of 70.8 kW (95 hp) on an 8-row machine.

NOTE: Product features are based on published information at the time of publication and are subject to change without notice.

MaxEmerge 5 row-unit with 106-L (3.0-bu) hopper

Introduced on model year 2015 planters, the MaxEmerge 5 row-unit is proven in the field. Using the same row-unit as ExactEmerge™ planters (less meter and BrushBelt™ delivery system), it was designed to withstand the stresses associated with high-speed operation. With an open side panel design, crop changeover on vacuum meters can be accomplished without removing the hopper from the row. The row-unit also provides you the versatility to match options to your operation.

• Choose finger pickup, radial bean, or vacuum meters
• Choose mini hoppers, 56-L (1.6-bu) hoppers, or 106-L (3.0-bu) hoppers
• Heavy-duty spring or pneumatic downforce
• Apply granular chemical with the insecticide option
• Variety of row cleaner and coulter options
• Spoked or smooth-sided gauge wheels
• Rubber or cast closing wheels

MaxEmerge 5 row-unit with 56-L (1.6-bu) hopper and granular insecticide

Pneumatic downforce on 1745 Planter

Overview

Planter row-unit downforce is an important factor to ensure consistent and proper depth control. With too little downforce, planter gauge wheels can lose ground contact and seeds will be planted at a shallow depth. This can result in uneven emergence, which studies have shown can impact yield 5 to 9 percent¹. With too much downforce, furrow sidewalls can become smeared and compacted. Compacted sidewalls can result in hatchet roots, where plant roots grow parallel with the furrow but do not branch out between the rows.

Depending on the level of control the producer is looking for, the 1745 Planter offers three levels of downforce.

Benefits

• Adjustable heavy-duty downforce springs provide four settings to match downforce requirements to field conditions: 0 kg (0 lb), 56.7 kg (125 lb), 113.4 kg (250 lb), and 181.4 kg (400 lb). Downforce is manually adjustable row-by-row.
• Manual control of pneumatic downforce provides simple adjustment of the whole planter from the electric compressor mounted on the front mast of the planter. The amount of downforce applied is infinitely adjustable from 6.8 to 181.4 kg (15 to 400 lb). Pneumatic downforce provides more consistent downforce throughout the range of row-unit travel compared to heavy duty downforce springs.
• Integrated control of pneumatic downforce provides simple adjustment of the whole planter conveniently from the tractor cab with the SeedStar™ XP monitoring system. Operators can see gauge wheel margin readings on three rows of the planter and either add or remove air from the pneumatic system to maintain a good level of load (margin) on the gauge wheels. The amount of downforce is infinitely adjustable from 6.8 to 181.4 kg (15 to 400 lb).

Adjustable heavy-duty downforce springs

Adjustable heavy-duty downforce springs on 1745 Planter

• Four downforce settings are manually adjusted for each row-unit.
• Rows behind tires can be set on a heavier setting.
• Downforce adjustments will take more time compared to pneumatic downforce systems.

Pneumatic downforce system - Manual

Electric compressor and gauge on 1745 Planter

• Fill all the pneumatic air bags from one location on the planter.
• It includes simple on/off operation.
• The system has a valve stem which allows filling with shop air for faster fill times or for use as a backup if the compressor stops working.
• Split rows are plumbed on a separate circuit. This allows the air to be released only on the split rows when they need to be locked up for planting on 76.1-cm (30-in.) spacing. Set-point pressure is controlled for all rows when all rows are planting.

Pneumatic downforce system – Integrated

Integrated compressor tank on 1745 Planter

SeedStar XP downforce margin page

SeedStar XP ride quality page

• Integrated downforce comes with an electric compressor and storage tank mounted on the rear of the planter for quick downforce adjustments.
• Downforce is easily adjusted from the display.
• The system has a valve stem which allows filling with shop air as a backup if the compressor stops working.
• The SeedStar XP monitor provides the operator downforce margin readings for the three rows equipped with a gauge wheel load sensor. Margin is essentially a reading of how much weight the gauge wheels are carrying. A positive margin ensures the planter is reaching correct planting depth. A target margin can be set to ensure proper firming of furrow sidewalls. Operators can add or remove air from the downforce system to meet the target margin.
• The SeedStar XP monitor provides the operator row-unit ride quality readings for the three rows equipped with the sensor node. Travel speed and field conditions can affect the amount of row-unit bounce that is experienced. Excessive row-unit bounce or vertical motion can cause problems with meter performance and spacing performance. The operator can slow down or increase downforce pressure to help the ride quality metric.
• Split rows are plumbed on a separate circuit. This allows the air to be released only on the split rows when they need to be locked up for planting on 76.1-cm (30-in.) spacing. Set-point pressure is controlled for all rows when all rows are planting.

Understanding margin

Margin is the amount of weight riding on the gauge wheels to ensure proper planting depth and proper firming of furrow sidewalls. It can be calculated as follows:

Margin (A) = weight of row unit (B) + downforce applied (C) – resistance from the soil (D)

Calculating margin with the row-unit

An example could be as follows:

• A – Margin: 45.4 kg (100 lb)
• B – Weight of row-unit: 54.4 kg (120 lb)
• C – Downforce applied: 59 kg (130 lb)
• D – Soil resistance: 68 kg (150 lb)
• A=B+C-D
  • 4 kg (100 lb) of margin = 54.4 kg (120 lb) + 59 kg (130 lb) – 68 kg (150 lb)

Soil resistance will vary based on planting speed, planting depth, soil type, and row-unit attachments such as closing wheel pressure setting, coulter setting, and row cleaner setting.

Watch the following video to better understand margin and how to set the correct margin for field conditions.

SeedStar XP Operation and Adjustment – Understanding Margin

Using set point pneumatic downforce

Watch the following video to better understand setting downforce by manually adjusting the pressure in the air bags.

SeedStar XP Operation and Adjustment – Using Set Point Pneumatic Downforce

¹Doerge, T., Jeschke, M., and Carter, P. Planting outcome effects on corn yield. Crop Insights, Vol. 25, No. 1. DuPont Pioneer. https://johndeere.widen.net/s/5gzsdtffkv/planting-outcome-effects-on-corn-yield

ComputerTrak™ 350 monitoring system

Your yield potential is never greater than when you take the seed out of the bag and put it in the ground.  A lot can happen between the bag and the furrow, and that’s why John Deere offers three levels of planter monitoring systems, so you can choose what information you want to see in the cab.

• ComputerTrak 350 offers a base monitor that scans the rows to monitor population and spacing.
• SeedStar™ 2 provides a population monitoring bar graph to compare rows across the planter. It can also control the optional row shutoffs.
• SeedStar XP shows you population, seed singulation, seed spacing, downforce information, and ride quality. In addition, you can adjust the optional pneumatic down pressure and the optional row shutoffs from the display.

SeedStar XP monitoring system

Filling the CCS with a pro-box

The CCS adds productivity through increased seed capacity, bulk fill capability, and easy, thorough cleanout.

• The two tanks have a combined capacity of 1,762 L (50 bu) which is 176 L (5 bu) more than a 15-row planter with 106-L (3-bu) hoppers.
• Translucent tanks allow the operator to see the seed level, and bin-level sensors alert the operator when the seed level is low.
• Filling the tanks is convenient due to a central filling location. The staircase and railing provide access to the filling platform between the tanks.
• Two platform lights improve visibility if filling at night.
• The following crops can be planted with CCS: corn, sweet corn, popcorn, cotton, sunflowers, sugar beets, soybeans, and sorghum (milo).

Cleanout is easy since a pro-box can fit under the CCS tanks when the planter is in the lifted position.

Pro-box under CCS tank

Pro-Shaft™ drive with RowCommand™ clutch

Section Control, in conjunction with the RowCommand feature on the planter, improves placement of seed, reduces yield penalties of over or under planting, and reduces operator fatigue. By automatically turning rows on and off, there will be less skips and overlap in the field. The automatic process allows the operator to focus on other aspects of planting, reducing overall stress and fatigue.

• University studies have shown seed savings of 1 to 12 percent, with an average of 4.3 percent.*
• In corn, the study found a 17 percent yield penalty in the double planted area.
• In corn, the study found a 757.6 L/ha (8.7 bu/acre) combine header loss in the double planted area.
• This leads to reduced operator stress and fatigue.

*NOTE: Runge, Max, et al. “Automatic section control technology for row crop planters.” Extension Alabama A&M & Auburn Universities ANR-2217, Oct. 2014. https://ssl.acesag.auburn.edu/pubs/docs/A/ANR-2217/ANR-2217-low-archive.pdf. Accessed 9 Oct. 2019

Section Control on SeedStar™ 2 planter

Radial tires on the 1745 Planter

The 1745 Planter comes standard with radial flotation tires. Radial flotation tires can run at lower inflation pressures compared to bias tires. The lower inflation pressure allows the tire to squat, which increases the tire’s footprint and reduces the pressure applied to the ground.

• Two VF445/50R22.5 tread lightly
• Inflation pressure of 379.2 kPa (55 psi) when planter has a fertilizer system
• Inflation pressure of 310.3 kPa (45 psi) when planter has a Central Commodity System (CCS™) or is without fertilizer

Number of rows

8

Row spacing

76.2 cm
30 in.

Frame - Fold configuration

Pivot fold

Frame - Flexibility

Rigid

Row unit seed hoppers

Capacity
Mini: 56 L
1.6 bu
106 L
3.0 bu

Seed Meters

Base
MaxEmerge™ 5 vacuum
Optional
Radial bean
Finger pickup
Yes

Number of rows

8

Row spacing

76.2 cm
30 in.

Fold configuration

Pivot fold

Frame tube size

12.7 x 17.8 cm
5 x 7 in.

Fold-and-go from tractor cab

Yes

Flexibility

Rigid

Base

Clevis drawbar

Optional

Ring style drawbar

Rear hitch

No

Type

Hydraulic frame lift

Number of cylinders

1

Base

VF445_50R22.5 implement (2 tires)
16x6.50-8 seed contact drive (1 tire)
16x6.50-8 fertilizer contact drive (1 tire)

Optional

Quantity

2

Type

MaxEmerge 5

Opener

Tru-Vee double disk

Depth gauging

Two solid or spoked gauge wheels

Adjustment

Handle

Walking wheels

Yes

Row unit seed hoppers

Capacity
Mini: 56 L
1.6 bu
106 L
3.0 bu
Material
Plastic

Row unit down force

Non-adjustable (4 springs)
No
Adjustable heavy-duty
Yes
Pneumatic
Yes

Scrapers, opener blades

Plastic rotary
No
Steel straight blade
Yes
Heavy-duty
Yes

Seed tube sensors

Base
AccuCount™

Base

MaxEmerge 5 vacuum

Optional

Finger pickup

Yes

Radial bean meter

Yes

Central Commodity System

Seed capacity
1762 L
50 bu

Base

Ground drive

Optional

Number of drive wheels

1

Drive wheel disconnect

When planter is raised

Counter shaft

Drill shaft

Seed transmission

Transmission combinations

Type

Folding

Control

Base
Connected to planter lift
Optional
Independent of planter lift

Marker disk

Base
Notched disk with depth gauging band: 40.6 cm
16 in.

Shear bolt protection

Yes

Less marker option

Yes

Rubber tire closing system

Wheel
2
Position
Four slots
Adjustment
T handle
Down force
Spring
Alignment
In-line or staggered

Cast iron closing system

Wheel
2
Position
4 slots
Adjustment
In-line or staggered

Insecticide only hopper

Yes

Herbicide only hopper

Insecticide and herbicide hopper

System available

No

Tank capacity

Base

SeedStar™ 2

Optional

ComputerTrak™ 350, SeedStar XP

Unit-mounted coulter

Yes

Frame-mounted coulter

Bubble blade

Yes

.63-in. fluted blade (25 flutes)

Yes

.7-in. fluted blade (13 flutes)

Yes

1-in. fluted blade (8 flutes)

Row tillage support hanger

Tine tooth

Cons. furrower w/ leading cutout blade

V-wing bed sweeps

Row cleaner

Yes

Row cleaner - unit-mounted coulter

Yes

Row cleaner - unit-mounted DD fert. opener

Onboard / towed / tractor tanks

Two-onboard

Tank capacity

Total: 1,136 L
300 gal.

Fixed-rate application

Yes

Variable-rate application

Pump type

Ground drive piston pump

Pump rate

22.4-352 L/ha
2.4-37.6 gpa

Fertilizer opener type

Frame-mounted
Yes

Flow divider distribution system

Pressure manifold distribution system

Dry fertilizer

Number of hoppers
Two-onboard
Hopper capacity
1,200 L
42.4 cu ft

ExactRate Fluid Transfer System

Transport width (with markers)

3.71 m
12.167 ft

Transport width (without markers)

3.71 m
12.167 ft

Transport length

8.00 m
26.25 ft

Transport height

3.84 m
12.583 ft

Transport weight

Empty with 105.7 (3-bu) hoppers, no fertilizer system: 5,546 kg
12,227 lb
Empty with Central Commodity System: 6,016 kg
13,263 lb
Liquid fertilizer with frame mounted openers weight empty: 781 kg
1,722 lb
Liquid fertilizer with in-furrow weight empty: 425 kg
937 lb
Dry fertilizer with frame mounted openers weight empty: 1,000 kg
2,205 lb

Transport underframe clearance

Field operation height

3.24 m
10.667 ft

Field operation width

6.27 m
20.583 ft

Field operation length

Map-based seeding

No

Field documentation

Yes

Parallel tracking

Yes

Recommended tractor horsepower

Drawbar, no fertilizer system: 71 kW
95 hp
Drawbar with frame mounted fertilizer openers: 78 kW
105 hp

Recommended tractor hydraulics

See compatibility story.

Warranty length

Standard

Date collected

1/7/2020
