Drive-over deck makes connection simple

1 Family Tractors are designed to minimise the time and effort needed to switch-out implements to accommodate different jobs.

• AutoConnect Deck System: Connect a mid-mount mower deck to the tractor in less than 60 seconds without leaving the seat except to lock the gauge wheels.
• Quik-Park™ Loader System: 120R Quik-Park™ Loaders are designed for easy mounting and removal in about a minute, with no tools needed.
• Quik-Tatch™ front hitch: Save time switching front implements like a snow blower, rotary broom, or front blade without tools.
• iMatch™ quick-hitch: Easily hookup Category 1 implements in seconds using three fixed points to back in and pick up rear implements without leaving the seat
  • Position control hitch: Set the rear hitch height and then consistently lower the hitch to the exact height every time, which is especially useful in grading and leveling applications.
• Quik-Knect™ system: Connect power take-off (PTO)-driven implements quickly and with low physical effort. The Quik-Knect system utilizes one connector for the tractor’s PTO shaft and a designated connector for each implement which eliminates twisting and forcing splines to align.

1 Family Tractors can have up to three implements mounted simultaneously due to standard dual selective control valves (SCVs), allowing you to switch from using one implement to another without stopping to adjust. When a third SCV kit is added, the number of possible combinations is greatly increased.

Twin Touch™ pedals

The hydrostatic transmission’s infinite ground speeds and direction of travel are both controlled with the Twin Touch foot pedals.

• Ideal for loader or mower applications where frequent direction and speed changes are needed
• No clutching for fast direction changes
• Match the job at hand with infinite ground speeds

Standard 4WD and power steering make 1 Family Tractors excellent for mowing

Both 4WD and power steering are standard equipment on the 1 Family Tractors. This combination allows for excellent maneuverability and ease of operation.

• Narrow overall width allows you to work in tight areas where most compact tractors just cannot fit. The 144.8 cm (57-in.) wheel base and 119.4 cm (47 in.) overall width gives great stability for all types of terrain.
• Power steering means fewer turns of the steering wheel than manual steering, which is especially valuable when mowing around obstacles or during front loader work.
• High horsepower-to-weight ratio makes the 1 Family Tractors a good choice for a variety of tasks. The overall tractor weight reduces ground compaction and makes them excellent for mowing.
• The fully-independent power take-off (PTO) allows engaging and disengaging of the PTO without stopping tractor movement. This is important when driving across obstacles such as driveways while mowing.

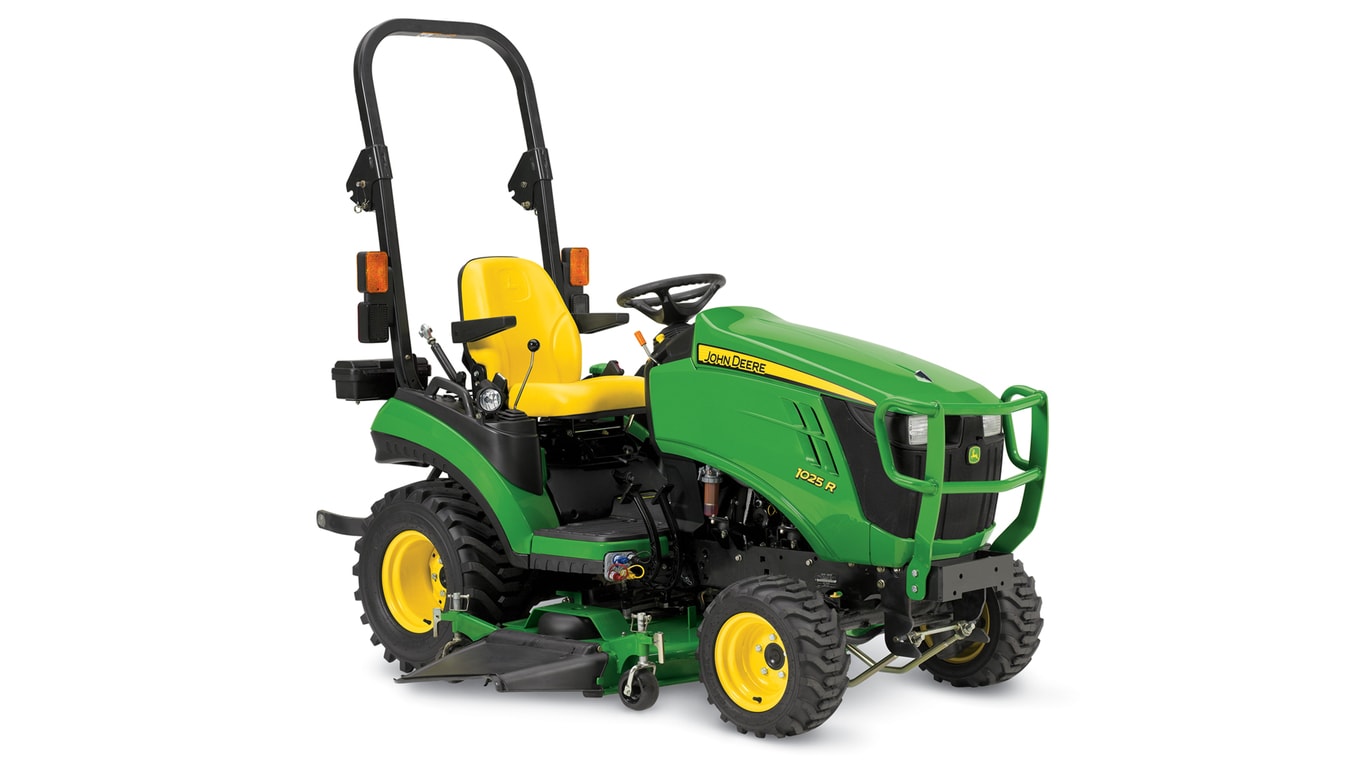

1025R open operator station

The 1025R open operator station is designed for greater comfort and increased visibility.

Comfortable operation

• Thick, textured rubber floor mat reduces vibrations and absorbs shock and noise
• Step-through flat platform and fender-mounted handrails make it easy to get on and off the tractor from either side
• Controls are conveniently located next to the fenders and are color-coded for quick identification
• Tilt steering lets you keep your arms in a natural position to reduce fatigue
• Deluxe suspension seat has moveable armrests and provides great back support
• Easy access toolbox puts common tools within quick reach
• Standard 12-V outlet for convenient charging of electronics
• Easy-lift hood with dual gas-charged lift struts as standard equipment. A simple flip of the latch lets you open the rugged composite hood, providing wide open access to the engine compartment.
• Foldable rollover protective structure (ROPS) keeps you protected during operation and improve the ability to store tractor in a garage

Foldable Roll-Gard ROPS

Foldable Roll-Gard™ ROPS is standard equipment on 1025R

Increased visibility

Standard (and optional) lighting shown

• Sloping hood design provides improved visibility especially during front loader work
• Standard lighting equipment allows you to work from early in the morning to late at night:
  • Two front-mounted light-emitting diode (LED) headlights
  • Two amber-flashing warning/hazard lights mounted on the side of the ROPS with reflectors
  • Two additional fender lights are standard on the 1025R
  • Additional front- and rear-light kits are available

Mid-mower lift system options

Mid-mower lift system options

Standard mechanical mower lift

The standard mechanical mower lift system moves the mower in conjunction with the rear implements and comes factory-installed on 1 Family Tractors.


Optional hydraulic mower lift

The optional hydraulic mower lift system allows the mower to be raised and lowered independently of the rear implements. It uses the loader joystick to lift and lower the mower deck.


Optional independent hydraulic mower lift

The optional independent hydraulic lift system allows the mower to be raised and lowered independently of the rear and front implements. It operates using a rocker switch mounted on the tractor, located at the operator’s left knee.

For more information on this mid mower lift system click here.

Engine power (gross)

SAE J1995 rated power: 17.8 kW
23.9 hp
24.2 PS at 3200 rpm

Power take-off (PTO) power

12.8 kW
17.2 hp

Steering hydraulics

13.2 L/min
3.5 gpm

Implement hydraulics

13.2 L/min
3.5 gpm

Hitch type

Limited Category 1

Lift capacity, 24-in. behind link arms

344 kg
758 lb

Standard transmission; forward/reverse

Hydrostatic - two range

Cruise control

Standard

Approximate shipping weight (open-station; cab)

Open station: 706 kg
1556 lb
Cab: 906 kg
1996 lb

Wheelbase

1450 mm
57.1 in.

Family

Manufacturer

Yanmar®

Engine model

3TNV80F-NCJT

Engine power (gross)

SAE J1995 rated power: 17.8 kW
23.9 hp
24.2 PS at 3200 seconds

Power take-off (PTO) power

12.8 kW
17.2 hp

Rated engine speed

3200 rpm

Type

Diesel

Injection pump type

Indirect injection

Aspiration

Natural

Emissions compliance

Final Tier 4

Cylinders/displacement

Three cylinders: 1.267 L
77.3 cu in.

Number of cylinders

Three

Cylinder liners

Cast-in-block

Bore and stroke

80 x 84 mm
3.15 x 3.31 in.

Compression ratio

23.1:1

Lubrication

Pressurized

Cooling system

Water pump

Air cleaner

Dual element with mechanical restriction indicator

Engine torque at rated speed

53.1 Nm
39.2 lb-ft

Fuel tank capacity

24 L
6.3 U.S. gal.

Battery size

500 CCA

Alternator (12-V)

40 amp

Starter size

1.2 kW
1.6 hp

Type

Indirect injection

Fuel consumption

Standard transmission; forward/reverse

Hydrostatic - two range

Optional transmission; forward/reverse

Left-hand reverser

No

Transmission gear ranges

Final drive

Spur gear

Brakes

Wet disc (left-hand pedal)

Steering

Power

Clutch, wet/dry

Clutch disk diameter wet clutch

Axle capacity

Front
612 kg
1349 lb
Rear
715 kg
1576 lb

Creeper

No

Cruise control

Standard

Differential lock

Yes

Drawbar maximum vertical load

Type

Open center

Pump rated output

Steering
13.2 L/min
3.5 gpm
Implement
13.2 L/min
3.5 gpm
24 L/min
6.3 gpm

Pump type

Single gear

Maximum operating pressure

138 bar
2000 psi

Draft control sensing

Position control

Remote control valves available

Three

Type

Limited Category 1

Lift capacity, 24-in. behind link arms

344 kg
758 lb

Standard

Rear: 540 rpm
Mid: 2100 rpm

Optional

Control

Independent

Clutch

Wet disk

Brake (for mid and rear PTO)

Wet disk

Engagement method

Crankcase with filter

2.7 L
2.9 gal.

Transmission and hydraulic system

12.3 L
3.2 gal.

Type

Spur gear

Differential lock

Yes

Rollover protective structure

Type
Foldable
Yes

Platform - flat/straddle

One-piece semi flat

Gear shift location - console/floor

Left-hand side

Compliance

Visibility

Air conditioning, temperature differential

Heat only

Doors

Two

Noise rating

Seat equipment

Premium seat

Height

Wheelbase

1450 mm
57.1 in.

Front axle clearance

195 mm
7.7 in.

Turning radius with brakes

Turning radius without brakes

Outside front tire: 2.51 m
8.2 ft

Limited slip differential

No

Approximate shipping weight (open-station; cab)

Open station: 706 kg
1556 lb
Cab: 906 kg
1996 lb

Front

R3 Turf: 18x8.50-10
R3 Turf Radial: 18x8.50-10
R4: 18x8.5-10

Rear

R3 Turf: 26x12-12
R4: 26x12-12

Front tread range

931 mm
36.7 in.

Rear tread spacing

895 mm
35.2 in.

Toolbox

Yes

Tilt steering wheel

12-V Outlet
