Realtime constituent information during harvest on the Gen 4/G5 combine display

Know your protein, get paid for your protein. The HarvestLab™ 3000 Grain Sensing solution enables customers to measure constituents like protein and oil in real-time during harvest. Every second the grain sensing system records and maps small grains moisture, protein, starch and oil as it is harvested. This information can be viewed in the combine, allowing you to make grain marketing decisions on-the-go, or in the John Deere Operations Center™. After your work is finished, utilize the Operations Center to view and analyze your work. This will allow you to:

• Know your protein and yield to accurately know how much nitrogen was removed and replace how much is needed, where it is needed, to sustainably optimize the yield for next year’s crop. This directly equates to per acre profit potential. Furthermore, this technology allows small grains farmers to reduce input costs and/or maximize yield and protein through better nutrient management or variety choice, by simply targeting points of the field where high-protein grain was harvested or focus on areas which didn’t reach the quality and/or yield targets.
• Increase profit per bushel of grain for high quality protein, starch or oil content. By knowing the constituent value of their grains, this solution enables producers to market their grain for the highest potential return at their local elevator and take advantage of premiums for constituent values like protein, starch and oil.

These benefits can be unlocked for the crops and constituents as part of a separate Grain Sensing Calibration:

Yield and Protein map shown in Operations Center

Grain Sensing is fully machine integrated and connected to Operations Center

Grain Sensing is fully integrated on our John Deere S700 series combines, allowing it to work seamlessly together with other components like the StarFire™ receiver and Gen4 display to enable site-specific documentation of the constituents and yield. This results in the following benefits:

• One constituent value each second for high accuracy resolution maps
• Easy work setup and documentation, reducing data loss
• No additional (third party) displays needed
• Automatic and near real-time flow to Operations Center when JDLink™ is enabled

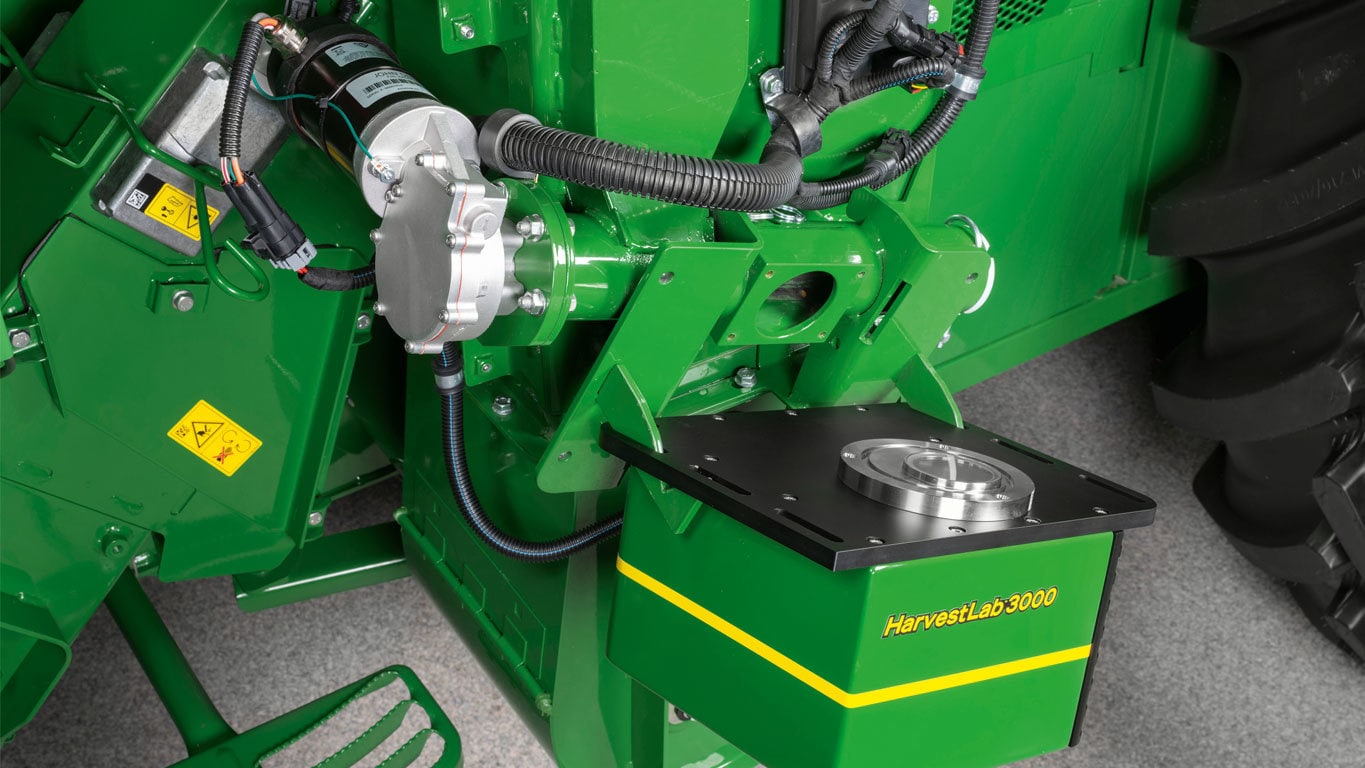

Fully integrated on the clean grain elevator and plugged in the combine harness

PCT Agcloud map shows a yield map (left) and protein map (right) that was shared through an API with John Deere Operations Center

PCT Agcloud is an example of a 3rd party tool that can be used to close the gap in nitrogen management on farm. Knowing your protein and yield to accurately know how much nitrogen was removed and replace how much is needed, where it is needed, to sustainably optimize the yield for next year’s crop. Getting the most out of your yield and protein data is crucial when maximizing the value of Grain Sensing, and partnership with a 3rd party tool such as PCT Agcloud will benefit the producer with the following:

• Automated creation of nitrogen removal and product replacement when soil tests are available
• Automated cleaning, editing and intersecting zone creation
• Quick prescription creation and adjustments with prescriptions sent straight to your machine (nitrogen Rx or any other nutrient)
• Manage protein and yield to optimize land capability and Nitrogen Use Efficiency (NUE)
• Increase grain quality (higher protein/oil)

The nitrogen removal capabilities of a tool such as PCT Agcloud are not yet available in the John Deere Operations Center. Therefore, a dealer partnership with a 3rd party is strongly encouraged to further unlock the value of Grain Sensing for the customer.

Real-time analysis of the quality of your wheat, barley, canola, corn or soybeans

Grain Sensing enables to monitor in real-time the quality (protein, starch or oil) of the grain during harvest. The combine operator can utilize the instant readings and work totals on the Gen4/G5 display, whereas the farm manger or owner can simultaneously monitor the harvest progress via the Operations Center. This will bring the following benefits:

• Be more confident when selling your grain to your local elevator. Know your quality upfront and earn the greatest premium for grain in your area or overcome penalties for not reaching the criteria.
• Use the load and field totals on the Gen4/G5 display to segregate low and high-quality grain in different trailers or bins for the optimized selling of your grain.
• Blend different qualities of grain (for example low and high protein wheat) to meet the criteria of the grain buyer.
• Send trailers and trucks to the right destination to best fit your grain contracts to get the best price out of the grain using Operations Center mobile or work totals on Gen4/G5.
• No need to wait on lab analysis or reference analysis at the grain buyer.

Monitor in real-time your load and field average on the Gen4 display to decide during harvest where to unload the combine grain tank

Grain Sensing enables farmers to be the first to know the quality of their grain, and market it to the highest bid accordingly. In reality, various elevators and grain terminals could be miles in different directions. With Grain Sensing, the farmer can shop his grain around to the highest bidder. With grain sensing you ensure no valuable time and fuel is wasted by sending trucks to the wrong delivery location.

The HarvestLab™ 3000 sensor can be used for the following three different applications:

1. Grain Sensing on John Deere combines
2. Moisture and constituents sensing on John Deere self-propelled forage harvesters (SPFH)
3. Stationary use with a turntable

HarvestLab 3000 and John Deere Constituent Sensing on a John Deere SPFH

The HarvestLab 3000 sensor enables an accurate measurement and documentation of dry matter, starch, protein, neutral detergent fiber, and acid detergent fiber in different crop types. For better fertilization planning in the next season, operators can use the HarvestLab 3000 sensor to determine and document the nutrient values taken off the field during harvest. It also helps achieve higher quality forage by enabling automatic length-of-cut adjustments on the go to ensure an optimal bunker compaction and conservation. In addition, the smart use of additives ultimately leads to higher milk yields and more efficient use of feed.

• Measure yield while harvesting
• Accurately determine moisture, dry matter, protein, starch, fiber, neutral detergent fiber, acid detergent fiber, and sugar on-the-go
• Better determine the value of forage when purchasing for biogas operations
• Dose inoculants based on current dry-matter level
• Automatically adjust length of cut on the go

Stationary application by adding a stationary kit to the HarvestLab 3000 and connecting it to a computer

HarvestLab 3000 equipped with the HarvestLab 3000 stationary kit

The HarvestLab 3000 sensor and stationary kit can provide time and cost savings with use in the barn, field office, or anywhere feed analysis is needed. For example, the components of a total mix ratio (TMR) can be measured every day to ensure the correct mix ration and achieve the maximum milk yield.

• Monitor silage quality year-round
• Support daily feed ration calculation
• Determine moisture, dry matter, protein, starch, fiber, neutral detergent fiber, acid detergent fiber, and sugar within 2 minutes

Measured data can also be downloaded from the HarvestLab 3000 sensor and saved to a computer for record-keeping purposes or to share with a nutritionist.
