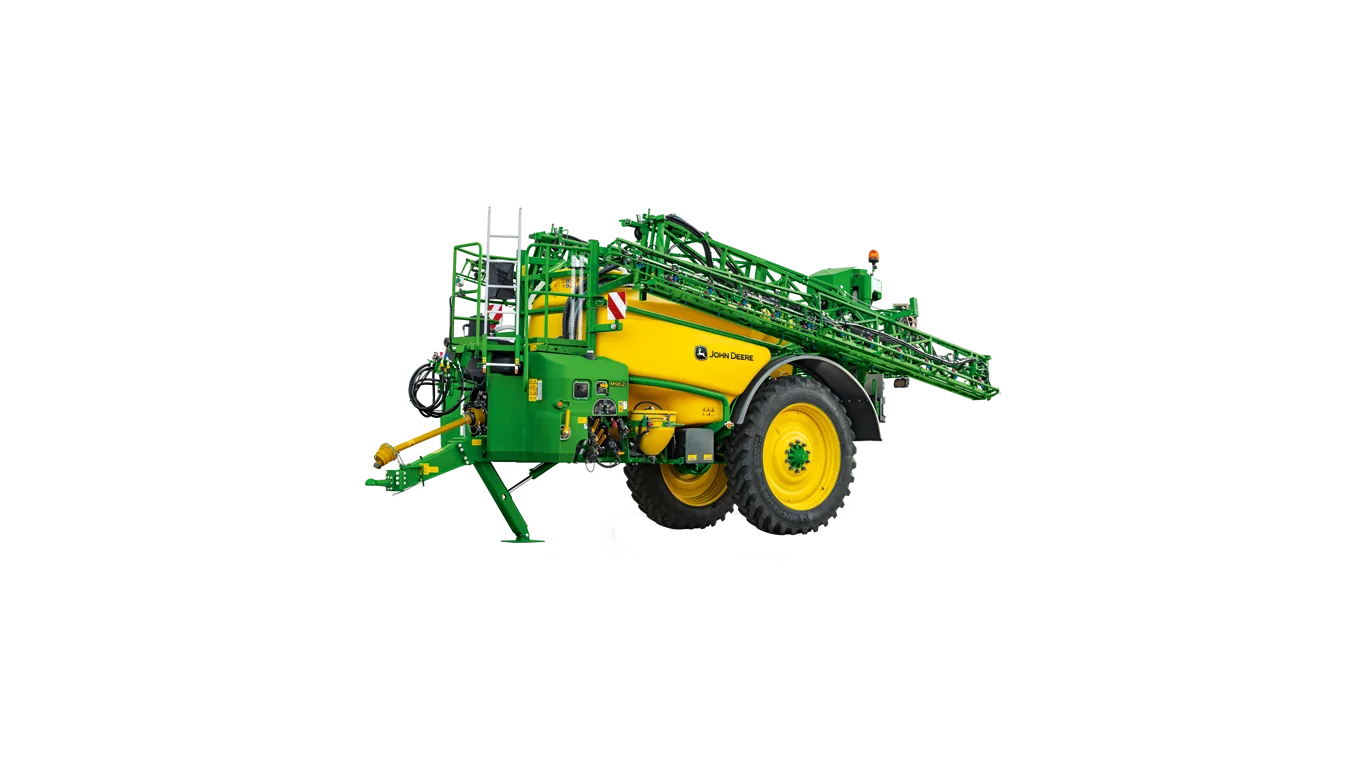

Wide range of options on the M900 meets various production system requirements

When it comes to uptime, the M900 Series is designed based on the same insights as the John Deere R900i platform, using similar proven components such as tank, boom, frame, and axles to meet quality and reliability levels that are expected from a high-quality trailed sprayer.

The round-shaped polyethylene tank is fully cradled by the frame and gives the machine a low center of gravity. Together with the standard double-linked ProRoad axle suspension, stability on the road and in the field are built-in.

When it comes to capacity, there are three tank sizes available: 4400 L (1163 gal.) on the M944, 5200 L (1374 gal.) on the M952, or 6200 L (1638 gal.) on the M962. With a selection of full-range durable steel spray booms from 24 m up to 40 m (79 to 131 ft)* and different spray systems and automation levels, producers ca customize the configuration to their needs.

*NOTE: Check the price list for possible configuration combinations.

Features of the M944, M952, and M962 Sprayers:

• Standard three-pole, 12-V COBO connector
• Ease of use: manual or semi-automatic operator’s station
• Comfort: full electrohydraulic control with or without load sense
• Ringline or pressure recirculation spray system layout with 50-cm (20-in.) nozzle spacing up to nine sections
• Ease of use: multi-function lever for sprayer operation and choice of Implement Display 1100, G5 Universal, or G5^Plus Universal Display

Features of the M944i, M952i, and M962i Sprayers:

• ISOBUS ready communication
• Ease of use: manual or semi-automatic functionality operator’s station
• Ringline, pressure recirculation, or TwinSelect™ individual nozzle control spray systems with 50-cm (20-in.) spacing
• Pressure recirculation spray system with 25-cm (10-in.) nozzle spacing up to 15 (virtual) sections
• Comfort: full electrohydraulic control with or without load sense and with or without multi-function lever for sprayer operation
• Choice of displays: G5 Universal, G5^Plus Universal Display, or less display to connect to John Deere ISOBUS tractors with an in-cab CommandCenter™ display
• Section Control ready

M900 stability in transport t

M900 stability in the field

The round-shaped polyethylene tank is fully cradled by the frame and gives the machine a low center of gravity. This comes together with the standard double-linked ProRoad axle suspension, providing stability on the road or in the field.

With its low center of gravity and even weight distribution, the M900 Series is built for stability. The entire mainframe is designed especially for the job. The heart of the mainframe is the cross structure in the center section to redirect forces, providing strength for a long lifetime. The frame design cradles the large polyethylene tank perfectly. The special tank shape offers deep sump while the steeply sloping bottom limits chemical residues. Due to the special tank design, additional tank baffles are not needed. It is easier to agitate liquid due to the smooth tank that has less risk of spray solution sticking to the inside of the tank.

The heavy-duty axle is fully integrated and comes standard with ProRoad double-linked axle suspension.

The frame, tank, and single axle design offer better maneuverability. Regardless of the boom position, the level weight distribution helps to always keep the machine steady.

Benefits of tank frame axle design include:

• Frame axle and tank design with lower center point of gravity supports stability in the field and on the road
• Round-shape polyethylene tank with smooth surface for perfect agitation and easier rinsing inside and outside
• Deep sump for better emptying, even on hillsides
• No baffles or dead corners supports better solution mixing
• Perfect readout with dual stage dry liquid level indicator that comes standard (digital tank level indication is optional)
• ProRoad double-linked fixed or steering axle offers better maneuverability and prevents leaning in corners
• Axle suspension with four maintenance-free polyurethane dampers absorb the shocks, providing stability and uptime

M900 operator’s station layout with easy-to-control manual valves

M900i operator’s station layout with manual valves and automatic filling

The ergonomic design of the operator’s station makes operation easy and convenient. The large handles make valves easy to set, and synchro positioning helps limit mistakes and makes filling, spraying, and rinsing easier.

The standard non-return check valve in the system prevents back flow through the filling hose. This prevents point-source pollution and chemical spillage and protects the environment.

The PowrFill chemical inductor hopper, spray gun, and clothing lockers are partly stored behind the valve area. Filters and hose connections are protected and easily accessible for operation, cleaning, or maintenance.

The chemical safety card holder is located near the platform, making the information readily available.

Benefits of operator’s station design include:

• Less risk of mistakes with easy-to-set manual valves with large handles
• Faster filling with 7.62-cm (3-in.) fill hose connection with non-return system check valve in base
• 08-cm (2-in.) transfer valve to transfer liquid from main tank to external point
• 08-cm (2-in.) quick connector for filling rinse water tank (optional)
• Safe filling with closed chemical transfer connection (optional)
• PowrFill chemical eductor hopper (optional)
• Clothing locker with two compartments (optional)
• Built-in primary pressure regulator ensures a constant 10-bar (145-psi) pressure for eductor, agitation, and manually controlled rinsing nozzle regardless of the spray pressure setting
• Manual on-off agitation is based on injectors, with optional automatic on-off switch to reduce risk of foaming
• Recirculation valve enables efficient usage of 600-L (158-gal.) rinse water tank content
• 18-L (4.75-gal.) hand-wash tank with refill position tap at operator’s station
• Easy to access both solution system filters

Powerful pumps for spray and fill capacity

Optimize spraying performance

The M900 and M900i models are equipped with two durable, 6-cylinder self-priming piston diaphragm pumps designed for spray tasks.

Pumps and filling connections are in protective positions on top of the frame and partly protected by the covers. Connect the 7.62-cm (3-in.) filling hose to 7.62-cm (3-in.) filling connection; select the levers and filling starts.

An integrated, non-return check valve prevents a system backflow. The ball valve at the filling hose connection comes standard to allow easier disconnection of the filling hose.

• Two self-priming pumps with 560-L (148-gal.) capacity and a collective 12 cylinders work together when filling
• In spray mode, one pump is used for spraying and one pump is used for agitation functions
• Solution system flow delivers a maximum output to the boom of 250 L/min (66 gpm)
• Pumps are located on top of the mainframe to keep clearance at the drawbar and remain protected by shielding
• Camlock coupling with blind cap and 7.62-cm (3-in.) filling connection
• Maximum pump technical pressure is 20 bar (290 psi), and the system axillary pressure is set to 10 bar (145 psi) to support a longer pump lifetime
• Non-return check valve in the solution system prevents backflow
• Optional pump oil level sensors display warning when pump oil level is insufficient
• Pump drive – wide-angle power take-off (PTO) is in base, hydraulic motor for pump drive is optional
• Pump protection – using the filling connection, liquid entering the pump passes a large 30-mesh filter first

Once low flow application rates are frequently used, it is highly recommended to upgrade the machine with the low flow rate bypass kit (BWZ10081).

Air valves ensure liquid circulates up to the nozzle bodies

Full circulation with spray off (top), full supply with spray on (bottom)

Prevent underdosing or weed triangles at spray start with the pressure recirculation spray system. Pressurized spray liquid circulates right up to the nozzles. Each nozzle body is air or electric operated to provide fast on/off switching, which prevents missed areas at spray starts. The air supply lines are connected to the nozzles in a section layout.

The spray liquid is circulated directly through the spray line under pressure. This ensures the right concentration under the right pressure directly at the nozzle body and eliminates triangles of weeds in the field and under dosing when starting spraying.

This circulation also allows operators to rinse out spray lines without spraying (such as when weather conditions change).

Benefits of pressure recirculation functionality in the spray system include:

• Limits the risk of untreated, underdosed areas or weed triangles at spray start
• Limit overlap or skips with air-controlled valves that enable fast on-off nozzle switching
• Fail-safe action in case air pressure is lost – valve springs close the nozzle body, preventing dripping or leakage
• Less sedimentation when spray is off – re-circulation liquid passes though the spray lines and returns into the tank
• Fully charged with spray on – spray lines are supplied from both ends, which limits underdosing at boom end during spray start
• Air distribution to nozzles is based on a section layout – less dead volume compared to section valves design
• Pressure recirculation functionally comes on the pressure recirculation spray system with 25- or 50-cm (10- or 20- in.) nozzle spacing, TwinSelect™ spray systems, and individual nozzle control spray systems

In-cab nozzle control saves valuable time when switching between nozzles

One of four nozzles can be selected to switch between five fixed positions

The optional TwinSelect in-cab nozzle control with pressure recirculation functionality allows immediate switching between two different nozzles, either manually or automatically. It helps to save valuable time whenever there is a need to quickly change nozzles and allows a wider range of spraying speeds for increased productivity.

TwinSelect provides five nozzle outlets split between one fixed and four manually selectable nozzle positions on the rotating body, with the ability switch between two nozzle positions from the cab.

Benefits of TwinSelect include:

• Switching between standard and drift-reducing nozzles for field borders or spraying headlands
• Nozzle changeover between liquid fertilizer and chemical spraying operations
• Wider range of operating speeds by moving between different nozzle sizes as speed changes
• Adapts to variation in application rates in variable rate treatments
• Maintain a desired droplet size at different spray volumes and forward speeds
• Comes with pressure recirculation functionality
• • Nozzle switching prescription application maps are compatible


TwinSelect enables switching within four modes:

1. Spray on position nozzle 1
2. Spray on position nozzle 2
3. Spray on position nozzle 1 + 2
4. Automatically select spray on position nozzle 1, 2, or 1 + 2

Switching between nozzles in the display

TwinSelect nozzle control settings

Spot-on spray accuracy with individual nozzle control

Sonic signal indicates remote controlled nozzle status

Individual nozzle control spray system provides efficient localized crop protection application. Save up to 5 percent in crop protection chemicals – up to 6 EUR per hectare*. The electronically controlled system reaches its ultimate potential together with the pressure recirculation spray system functionality.

Individual nozzle control is available for 50-cm and 25-cm (19.7-in. and 9.8-in.) nozzle spacing spray systems.

*NOTE: Based on a 500-ha (1235.5-acre) wheat farm and assumed costs of 53€/ha for herbicides and 65€/ha for fungicides (5 percent x 118€ = 5,90€/ha).

Preforming a nozzle check is easy; just walk behind the spray boom with the wirelessly connected key fob to activate nozzles on or off on the go.Sonic signal informs the operator of the system status.

Benefits of individual nozzle control spray system include:

• Reduce costs by minimizing application skips or overlap
• Protect crops from overapplication of chemicals
• Spot spraying is possible based on application map
• Individual nozzle control up to 15 virtual programmable sections
• Fast on-off response with electrically controlled valves
• Remote control of nozzles possible with wireless key fob

25-cm (9.8-in.) nozzle spacing with pressure recirculation functionality

On-center nozzle layout, best agronomic in pass-to-pass applications

Expand the available spray window in challenging weather circumstances with 25-cm (9.8-in.) nozzle spacing. The narrowed nozzle spacing makes spray applications with reduced spray boom heights possible. Spray is less suspectable to drift in changing weather circumstances. To achieve the best agronomic results, the 25-cm (9.8-in.) nozzle spacing layout is based on an on-center design to ensure sufficient pass-to pass spray overlap. To minimize the risk of blocked nozzles or sedimentation in the spray lines, pressure recirculation is embedded, and an additional 80-mesh pressure filter is located at the center frame as close as possible to the nozzles.

The 25-cm (9.8-in.) nozzle spacing plumbing layout and spraying with lowered boom height is an officially recognized drift-reducing spray technology in multiple countries. Check with local legislation regarding which level of drift reduction classification is achieved by the 25-cm (9.8-in.) nozzle spacing spray system layout in your country.

Benefits of 25-cm (9.8-in.) spray system include:

• Limited risk of spray drift by spraying at lower boom heights
• Better agronomic results in pass-to-pass applications with on-center nozzle layout
• Minimize skips or overlap by using electrically controlled nozzle shut-off valves for fast on-off switching
• Reduce the risk of blocked nozzles with the additional 80-mesh filter
• Limited sedimentation and a concentrated spray start with full pressure recirculation functionality
• Flexibility in application strategy – plumbing layout allows spraying with a 25-cm (9.8-in.) and 50-cm (19.7-in.) nozzle spacing
• TerrainCommand™ Pro leveling system keeps the boom at the correct height
• AutoFold functionality

25- cm (9.8- in.) nozzles set to 50 cm (19.7 in.)

25- cm (19.8 in.) nozzle spacing with individual nozzle control

Use TerrainCommand Pro spray boom automation even with reduced boom width

Sensor with hybrid mode capabilities

A stable boom ride is one of the basics for a successful spray application.

TerrainCommand Pro automatically maintains a constant spray height above the crop per wing on uneven ground and in changing crop conditions, resulting in an effective deposition of spray liquid, less dissipated chemicals, better crop penetration, and reduced spray drift.

TerrainCommand Pro can be offered with three sensors (one sensor per wing and one sensor next to the center frame) or five sensors (two sensors per wing and one sensor for the center frame). The five-sensor system is only available for 27-m (88.6-ft) booms or wider.

Ultrasonic sensors mounted at each end of the boom measure the height of the boom wings above the target, the integrated IMU sensors the measure the inertia. If the slope of the field changes and the spray boom is no longer at the desired distance to the ground or crop surface, TerrainCommand Pro controls the boom variable geometry, tilt, and height automatically.

Benefits of TerrainCommand Pro include:

• More operator comfort due to boom positioning automation
• Increased spraying accuracy with optimum boom height above crop
• Hybrid mode finds the balance between soil and crop prevents dipping
• Automatic boom control enables faster spraying
• Ability to spray in low light conditions (night)
• Possibility to use wider booms, resulting in fewer passes
• Works with full or symmetric boom folded position

TerrainCommand Pro in combination with AutoTrac™ automatic guidance system and Section Control offers better machine utilization. It enables spraying at night when spraying conditions are often much better (less wind and drift).

TerrainCommand Pro uses a dedicated proportional hydraulic valve to control the variable geometry on each boom wing. Proportional hydraulics offer both faster and smoother operation, with response modulated to the amount of boom movement necessary. The proportional hydraulic valve is also equipped with a temperature sensor that measures oil temperature. This feature provides compensation for the flow difference of the oil in different temperatures, enabling accurate variable geometry adjustments.

AutoDilute system purges out diluted liquid by the boom

AutoDilute pump located in the frame

John Deere's award-winning multi-cycle dilution system for controlled liquid residue disposal is an equipment option on the M900i Sprayers.

NOTE: Always refer to the chemical package and read the safety requirements when diluting or rinsing a sprayer.

AutoDilute enables operators to dilute the remaining liquid in the main solution tank without leaving the cab. Operators save time since there is no need to walk through the sprayed crop to manually reposition sprayer valves. The time savings from AutoDilute helps operators prepare the machine faster for the next application and meets the environmental legislation in countries where dilution of the remaining crop protection chemical in the machine is a legal requirement (refer to local legal requirements).

AutoDilute provides a pre-defined dilution factor using automatic stepwise residue dilution. Continuous dilution provides a fast flush between jobs. Continuous dilution can be combined with stepwise dilution first followed by continuous dilution. The amount of rinse water can be programmed to operator needs, resulting in efficient rinse water usage.

Benefits of the AutoDilute integrated multi-cycle dilution system include:

• Automatic dilution mode with AutoDilute – stepwise dilution to reach the operator pre-set dilution factor
• Automatic continuous dilution to continuously dilute solution tank liquid by a pre-set rinse water volume
• Automatic continuous dilution with pre-set dilution factor to stepwise dilution, followed by continuously diluting the solution tank liquid by a pre-set amount of rinse water volume

Functional layout of AutoDilute/continuous dilution

Once AutoDilute or continuous dilution is activated, the dilution process starts with the activation of the hydraulic pump. Water is drawn out of the rinse tank and transferred from the separate AutoDilute pump to three rinsing heads. This additional rinse water flushes the inside of the tank and dilutes the remaining tank content. As soon the sprayer pump is activated, additional water dilutes the liquid system. Once the master valve is opened, diluted tank content is sprayed out. Dilution can be done automatic stepwise (AutoDilute) or in continuous dilution mode. AutoDilute pump capacity is 80 L/min (21 gpm).

Boom width (double folded booms)

24 – 28 metre

Boom width (triple folded booms)

24 – 40 metre

Boom height range

2 metres

ISOBUS for accuracy and productivity

-
